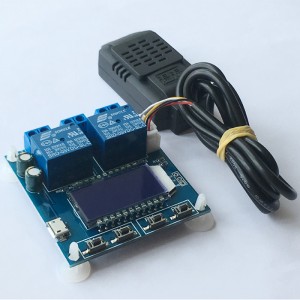

HS0924 LCD Digital display Temperature and humidity Controller Automatic constant thermostat Humidity control with Sensor
Temperature and humidity control module switch, automatic constant temperature and humidity control instrument panel
parameter
Name: Temperature / Humidity Controller
Model: XY-TR01
Humidity range: 0%~100%RH
Temperature range: -20~60 degrees
Control accuracy: 0.1 degrees / 0.1% RH
Detection probe: integrated sensor
Output type: relay output
Output capacity: up to 10A
Size: 57*60*20mm
Product Features
Temperature function:
1, the working mode is automatically recognized
The system automatically recognizes the operating mode based on the start/stop temperature
Start temperature > stop temperature, cooling mode 'C'; start temperature < stop temperature, heating mode 'H'.
2, cooling mode
When the temperature > start temperature is detected, the relay is turned on, the red indicator light is on, and the refrigeration device starts to work;
When the temperature is detected <starting temperature, the relay is turned off, the red indicator light is off, and the cooling device stops working;
3, heating mode
When the temperature is detected <starting temperature, the relay is turned on, the red indicator light is on, and the heating device starts to work;
When the temperature > start temperature is detected, the relay is turned off, the red indicator light is off, and the heating device stops working;
4, temperature correction function OFE (-10 ~ 10 degrees)
If the system works for a long time, there may be deviations and it is difficult to correct this power;
Actual temperature = measured temperature + calibration value
How to set the start/stop temperature:
1. In the running interface, long press the 'TM+' button for more than 3s to enter the startup temperature setting interface. The test can modify the parameters through the TM+/TM- key. After the parameter modification is completed, wait for 6s to automatically exit and save;
2. In the running interface, long press the 'TM-' button for more than 3s to enter the stop temperature setting interface. The test can modify the parameters through the TM+/TM- key. After the parameter modification is completed, wait for 6s to automatically exit and save.
Humidity function:
1, the working mode is automatically recognized
The system automatically recognizes the working mode according to the starting humidity/stop humidity.
Start humidity > stop humidity, dehumidification mode 'D'; start humidity < stop humidity, humidification mode 'E'.
2, dehumidification mode
When detecting humidity > starting humidity, the relay is turned on, the green indicator light is on, and the dehumidification device starts to work;
When the detection temperature <start humidity, the relay is turned off, the green indicator light is off, and the dehumidification device stops working;
3, humidification mode
When the humidity is detected <starting humidity, the relay is turned on, the green indicator light is on, and the humidifying device starts to work;
When detecting humidity > starting humidity, the relay is turned off, the green indicator light is off, and the humidifying device stops working;
4, humidity correction function RH (-10~10 degrees)
If the system works for a long time, there may be deviations and it is difficult to correct this power;
Actual humidity = measured humidity + calibration value
How to set the start/stop humidity:
1. In the running interface, press and hold the 'RH+' button for more than 3s to enter the startup humidity setting interface. The test can modify the parameters through the RH+/RH- key. After the parameter modification is completed, wait for 6s to automatically exit and save.
2. In the running interface, press and hold the 'RH-' button for more than 3s to enter the stop humidity setting interface. The test can modify the parameters through the RH+/RH- key. After the parameter modification is completed, wait for 6s to automatically exit and save.
