HS7053 1-8 Cell 1.2V 2.4V 3.6V 4.8V 6V 7.2V 8.4V 9.6V for NiMH NiCd Battery Dedicated Charger Charging Module Board

HS7053 1-8 Cell 1.2V 2.4V 3.6V 4.8V 6V 7.2V 8.4V 9.6V for NiMH NiCd Battery Dedicated Charger Charging Module Board

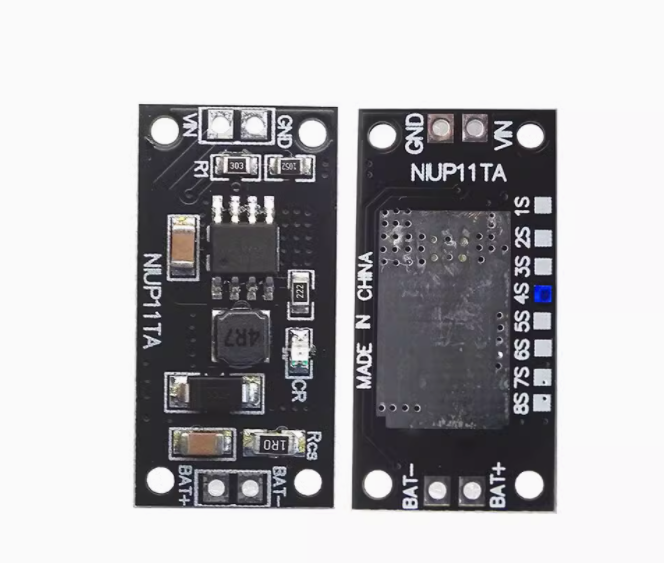

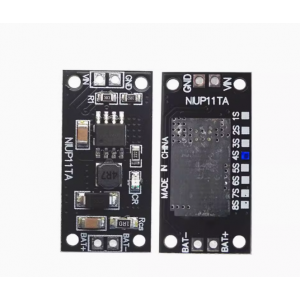

NIUP11TA 1S 2S 3S 4S 5S 6S 7S 8S NiMH NiCd Battery Charger Dedicated Module Board 1.2V 2.4V 3.6V 4.8V 6V 7.2V 8.4V 9.6V

Product selling point:

1: Wide range of applications

2: Small size

3: Various string numbers are optional

4: stable performance

5: Simple to use

Describe:

1S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 1.35V-1.7V

Charging current about: 230mA-240mA

2S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 2.7V-3.4V

Charging current about: 230mA-240mA

3S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 4.05V-5.1V

Charging current about: 230mA-240mA

4S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 5.7V-6.8V

Charging current about: 230mA -240mA

5S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 6.75V-8.5V

Charging current about: 230mA-240mA

6S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 8.1V-10.2V

Charging current about: 230mA-240mA

7S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage: 9.45V-11.9V

Charging current: 190mA- 210mA

8S:

Input voltage: DC 4.5V-5.5V (recommended DC 5V)

Charging voltage about: 10.8V-13.6V

Charging current about: 190mA-210mA

USB power protection:

Short circuit protection and zero volt battery activation

battery protection

Operating ambient temperature: -40° to +85°

Storage temperature: -65° to +125°

Dimensions 30mm x 15mm x 4mm

Weight: 1.5g

Note: The output voltage cannot be measured with a multimeter without a battery. But it can be observed with an oscilloscope.

Tip: If your battery is 1-3Cell, please choose the high current version: X-HX0020

Application:

children's toy car

digital camera

solar charging

Audio equipment

digital camera

E-dictionary

portable device

1-8Cell NiMH battery charger

1-8Cell NiCd Battery Charger

List:

1*Battery dedicated charger module
