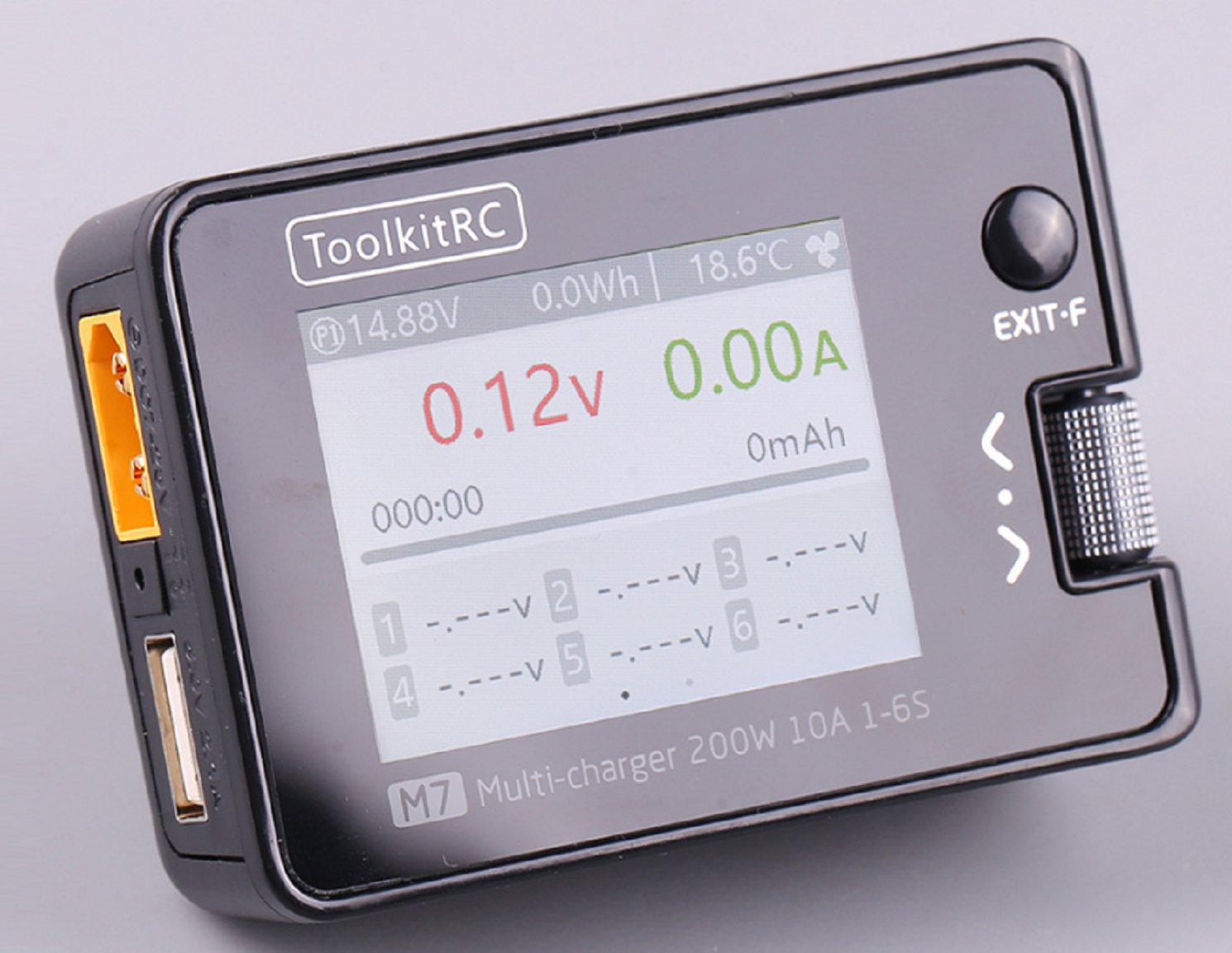

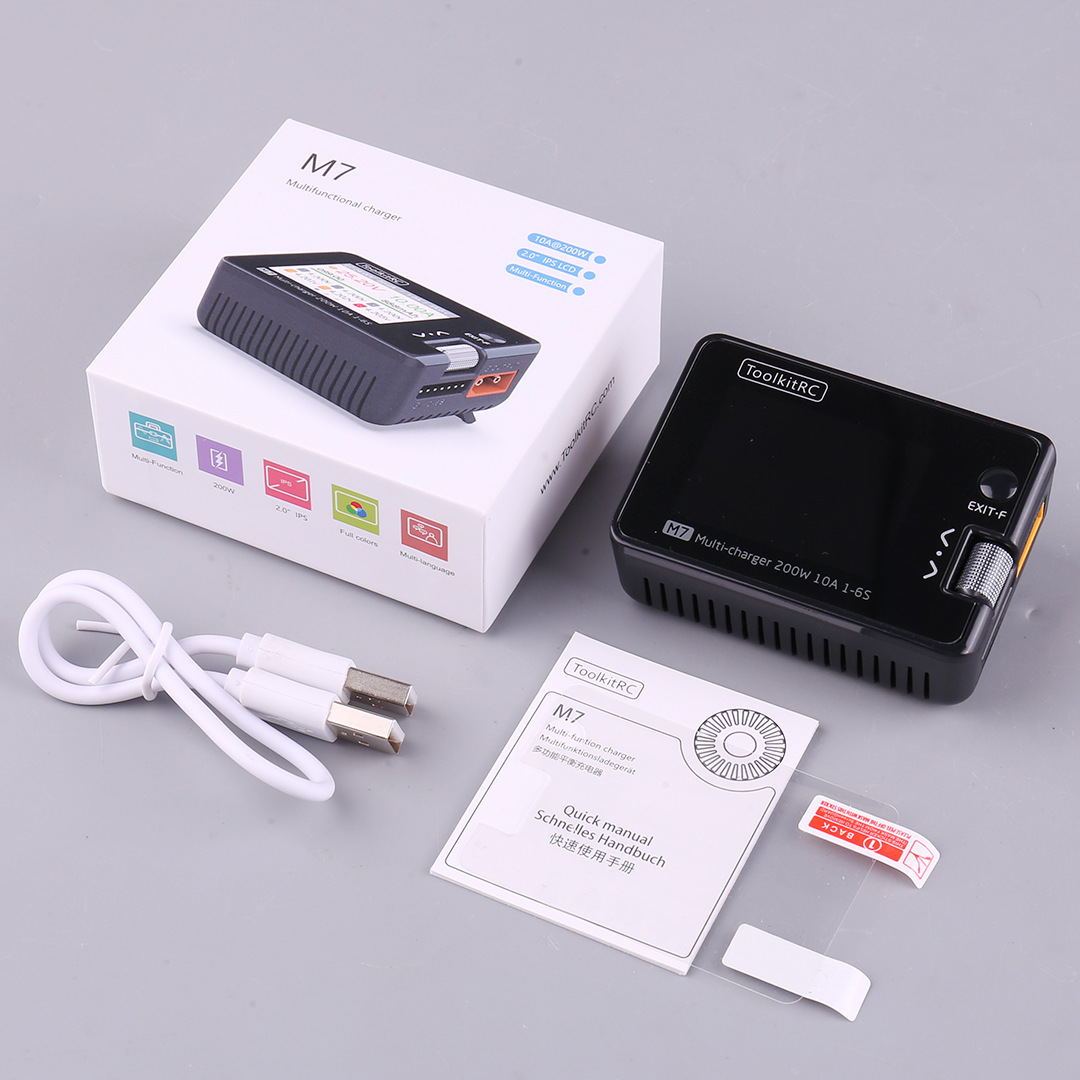

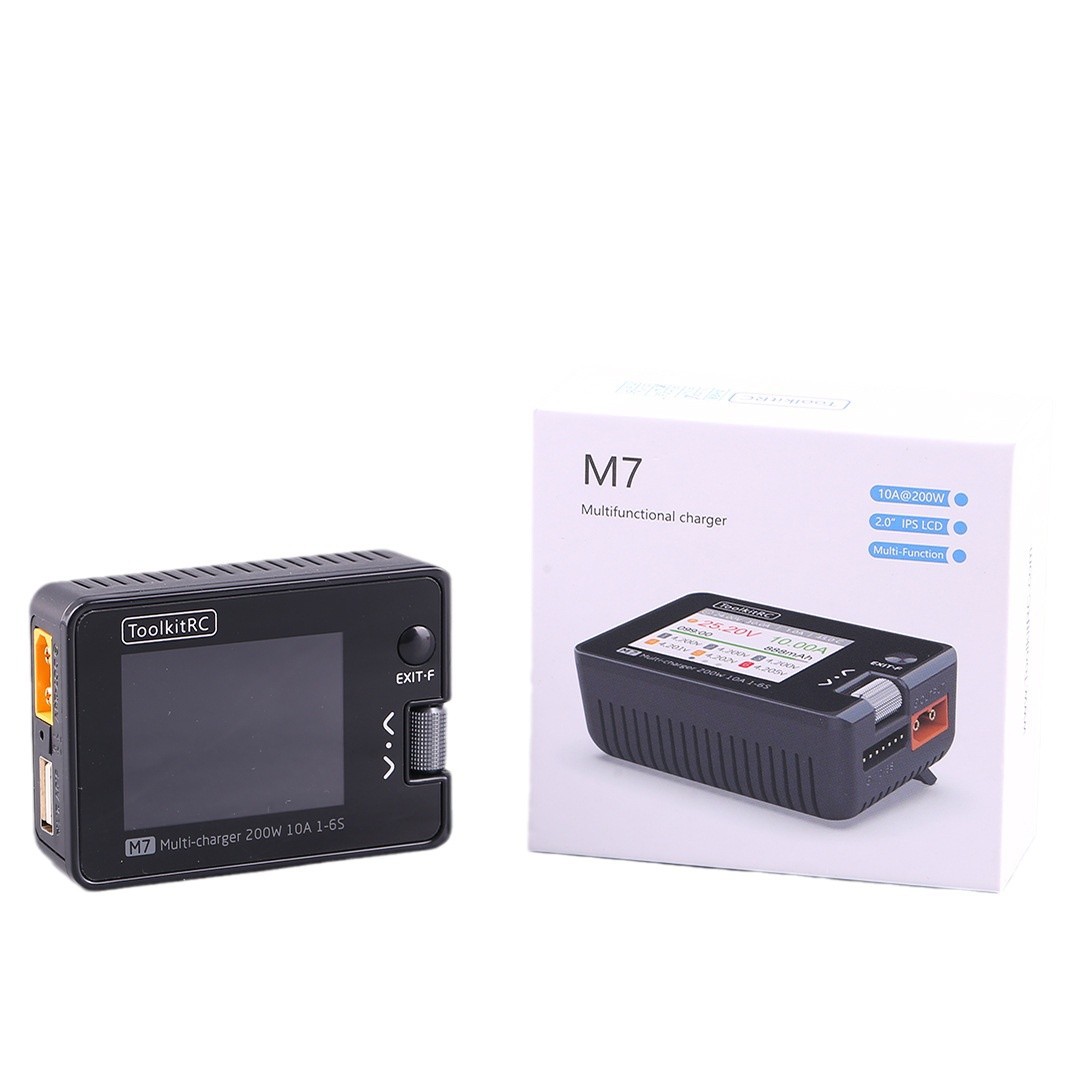

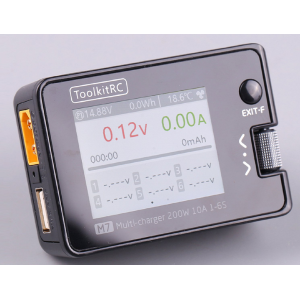

HS7363 ToolkitRC M7 200W 10A DC Balance Charger/Discharger ADP100 Adapter (EU/US) For 1-6S Lipo LiHV LiFe Lion RC Battery

HS7363 ToolkitRC M7 200W 10A DC Balance Charger/Discharger ADP100 Adapter (EU/US) For 1-6S Lipo LiHV LiFe Lion RC Battery

M7 Specification:
Product size: 73*51*27mm;
Product weight: 90g;
Pack size: 84*79*39 mm;
Pack weight: 150g;
LCD: IPS 2.0inch LCD 320*240 Pixel;
Input voltage: 7.0-28.0V@MAX 12A;
Type of battery: Lipo LiHV LiFe Lion@1-6/ NiMh@1-16S/ Pb@1-10S;
Balance current: 400mA@2-6S;
Charger power: 200W@MAX 10A;
Discharge power: 200W@MAX 10A Recycle mode; 10W@3A Normal mode;
USB: 2.1A@5.0V or Upgrade;

Input:
PWM: 880-2200us@20-400Hz;
PPM: 880-2200us*8CH@20-50Hz;
SBUS: 880-2200us*16CH@20-100Hz;
Voltage: 1.0-5.0V@1-6S;
Internal resistance: 1-99mR@1-6S;
ESC: 200W@10A PWM Output;

Output:
PWM: 500-2500us@20-1000Hz;
PPM: 880-2200us*8CH@20-50Hz;
SBUS: 880-2200us*16CH@20-100Hz;
Power supply: 1.0-28.0V@1.0-10A mode:CC+CV;
Overcurrent Cutoff time: <5ms;
