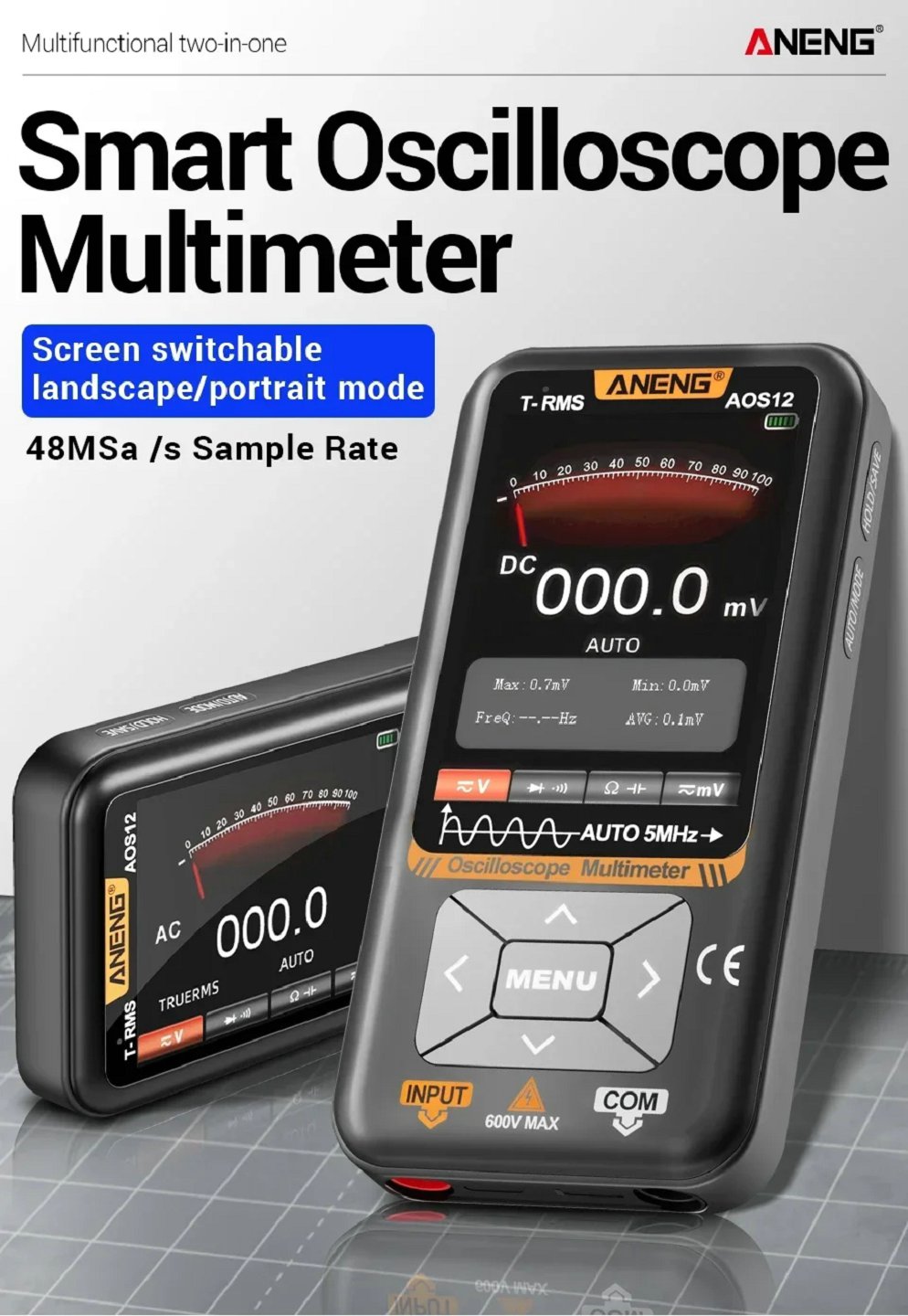

HS7334 ANENG AOS12 Portable 2 in 1 Oscilloscope Multimeter Multifunctional Electrical Test Tool 5MHz 48MSa/s Sampling
A NENG AOS12 Multimeter 2-in-1 Oscilloscope 5MHZ 48MSa/s Sampling Portable Oscilloscope Multifunctional Electrical Tester Tools
Overview:

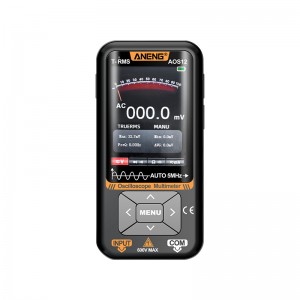

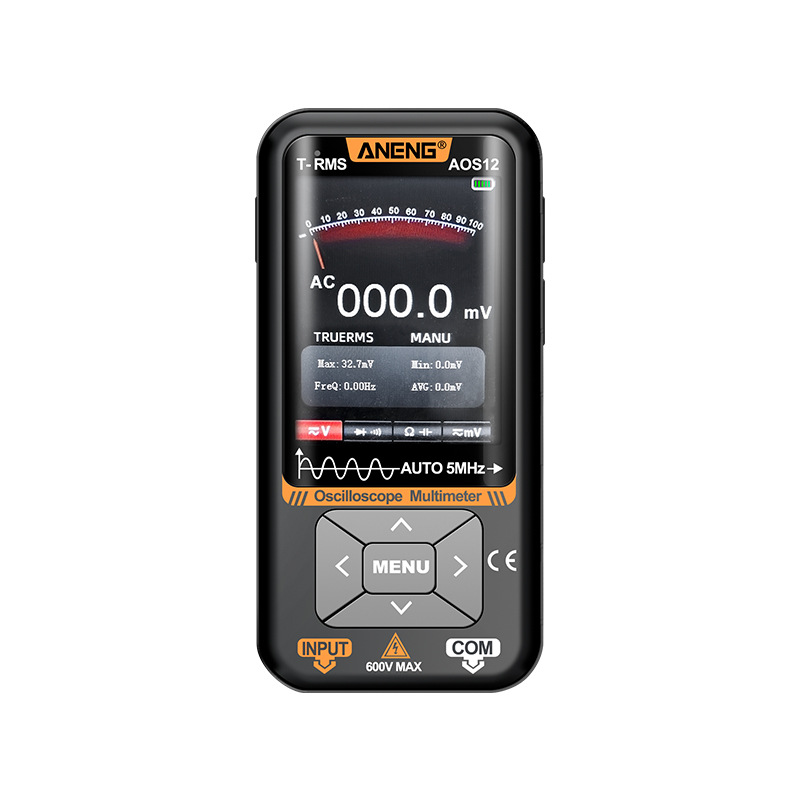

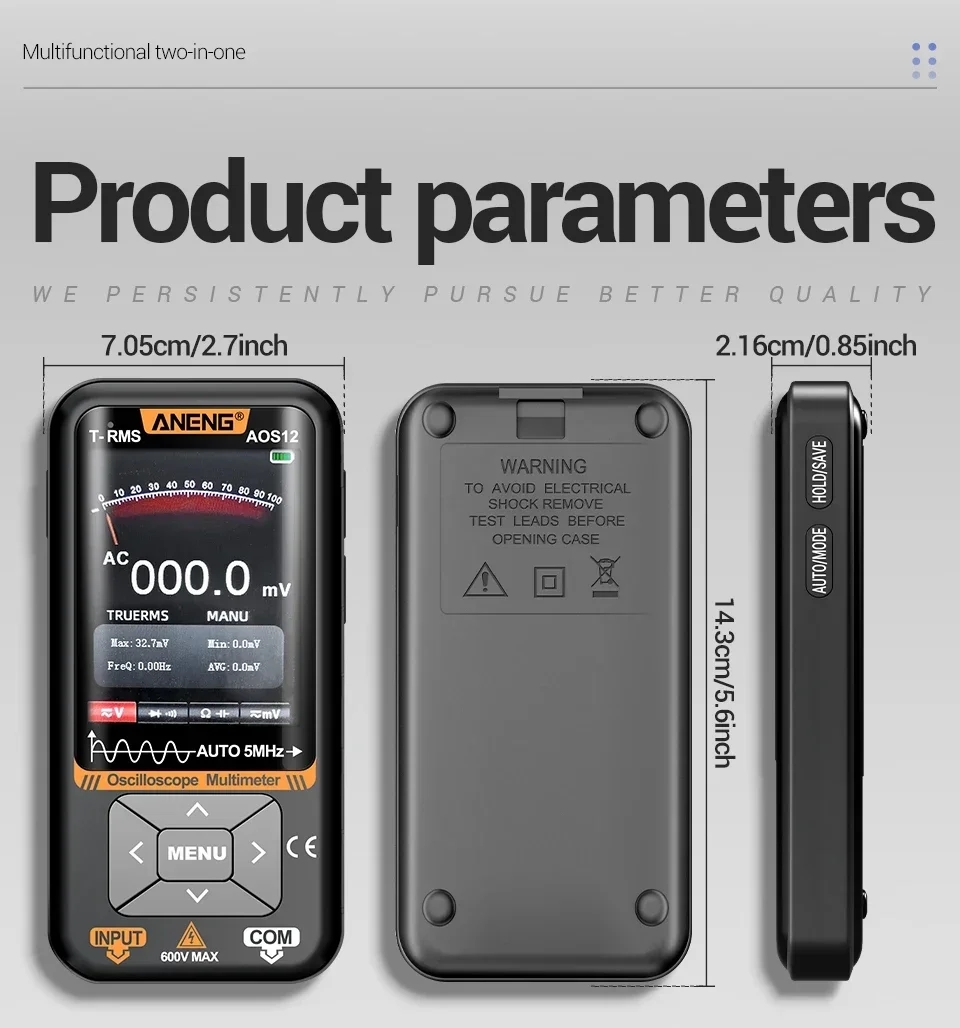

This product is a digital instrument with a handheld ultra-thin oscilloscope and multimeter combination function. It has a beautiful exterior design, a compact body, and is easy to carry. The screen uses a 3.2-inch TFT color screen, and the menu interface is clear and intuitive.
One click intelligent horizontal and vertical screen display mode switching: using silicone buttons, the operation is simple and flexible, and the oscilloscope and multimeter functions can be switched with one click; The oscilloscope and multimeter of this product use a shared
input field for measurement, which means that the waveform can be measured by inputting the probe without the need for an oscilloscope probe.

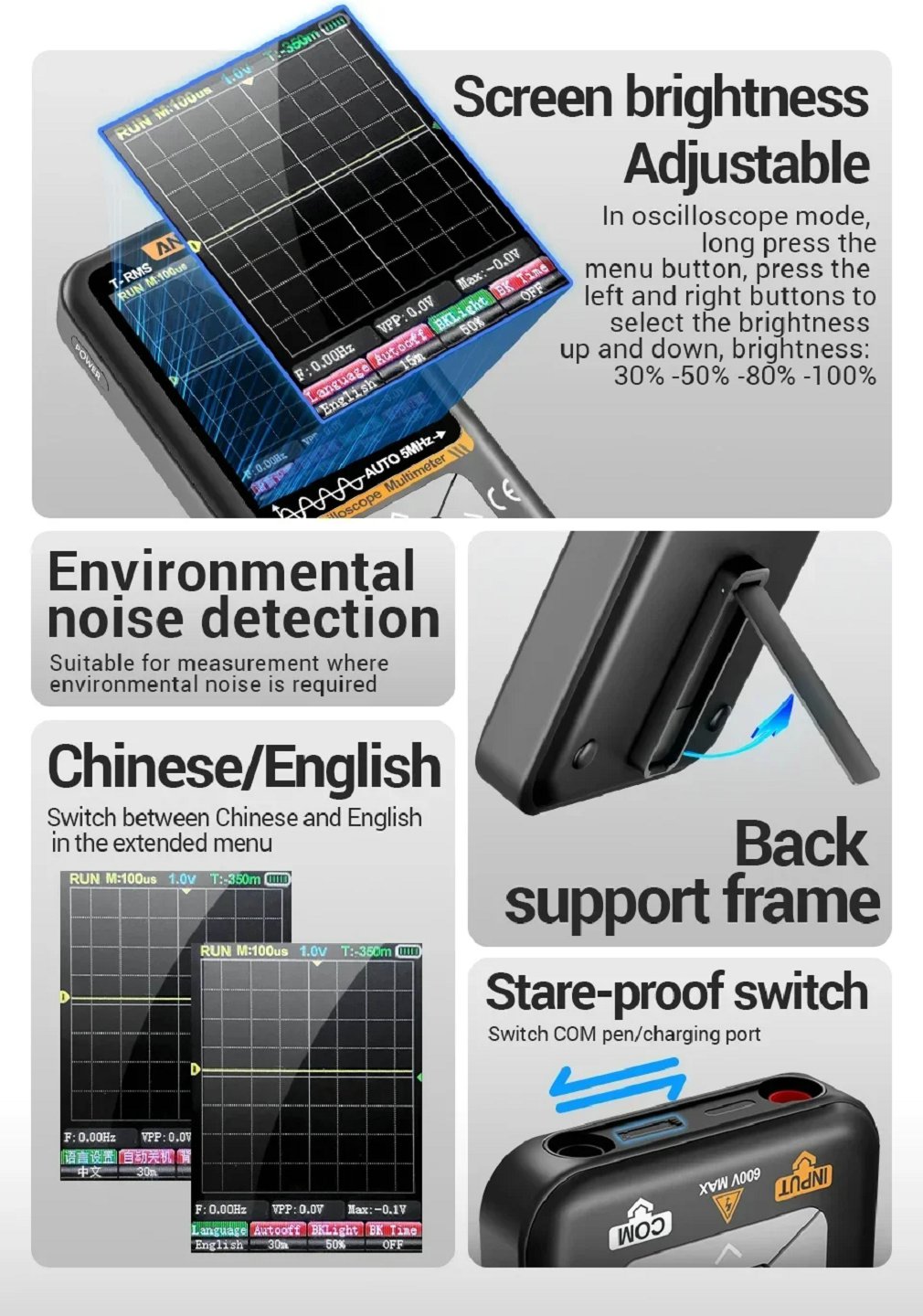

Due to the same ground potential between the oscilloscope input port and the charging port, charging and measurement cannot be used simultaneously. Therefore, an anti misoperation switch is installed at the port, which needs to be turned when measuring or charging.
Attention: If there is a lag or crash during use, please restart.
Multimeter technical indicators :
|
Function |
Range |
Resolution |
Precision |
|
DC voltage (V) |
999.9mV-600.0V |
0.1mV-0.1V |
±(0.5%+ 3) |
|
DC voltage (mV) |
9.999mV-99.99mV |
0.001mV-0.01mV |
±(0.5%+ 3) |
|
AC voltage (V) |
999.9mV-600.0V |
0.1mV-0.1V |
±(1.0%+ 3) |
|
AC voltage (mV) |
9.999mV-99.99mV |
0.001mV-0.01mV |
±(1.0%+ 3) |
|
Resistance |
99.990-99.99M0 |
0.01Q-0.01MQ |
±(5.0% + 20) |
|
Capacitor |
9.999nF-99.99mF |
0.001nF-0.01mF |
±(5.0%+ 5) |
|
Frequency |
99.99Hz-999.9kHz |
0.01Hz-0.1kHz |
+(0.1%+ 2) |
|
Diode |
√ |
Back support frame |
√ |
|
On-Off beep |
√ |
Automatic shutdown |
√ |
|
Data retention |
√ |
Low battery prompt |
√ |
|
True RMS |
|
Material |
ABS + TPE |
|

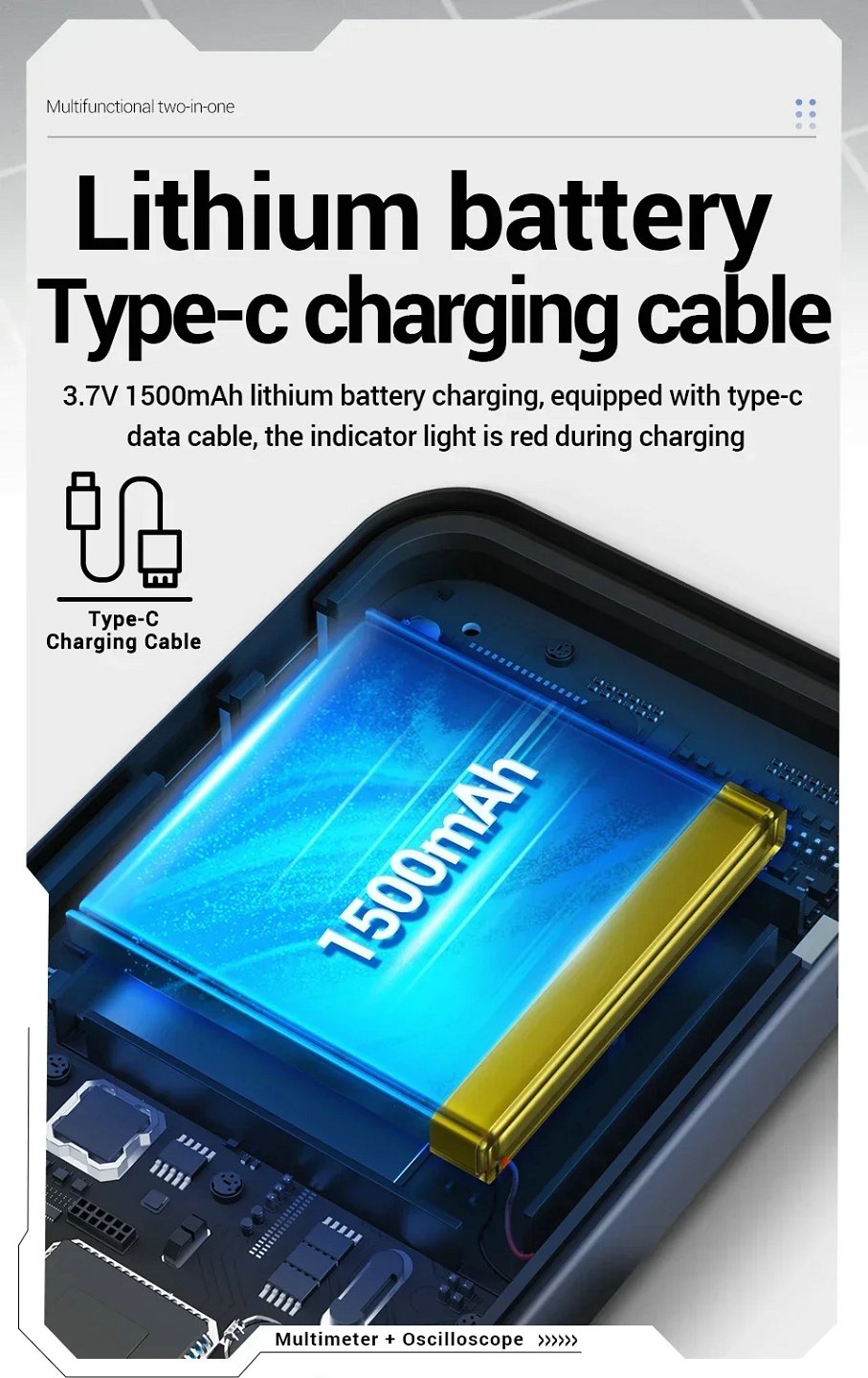

Battery type |
3.7V 1500mAh |
Language |
Chinese/English |
|
Adjustable screen brightness |
30%-50%-80%-100% |
Maximum count |
9999 count |
|
Screenbacklight time |
Close-30s-60s-120s |

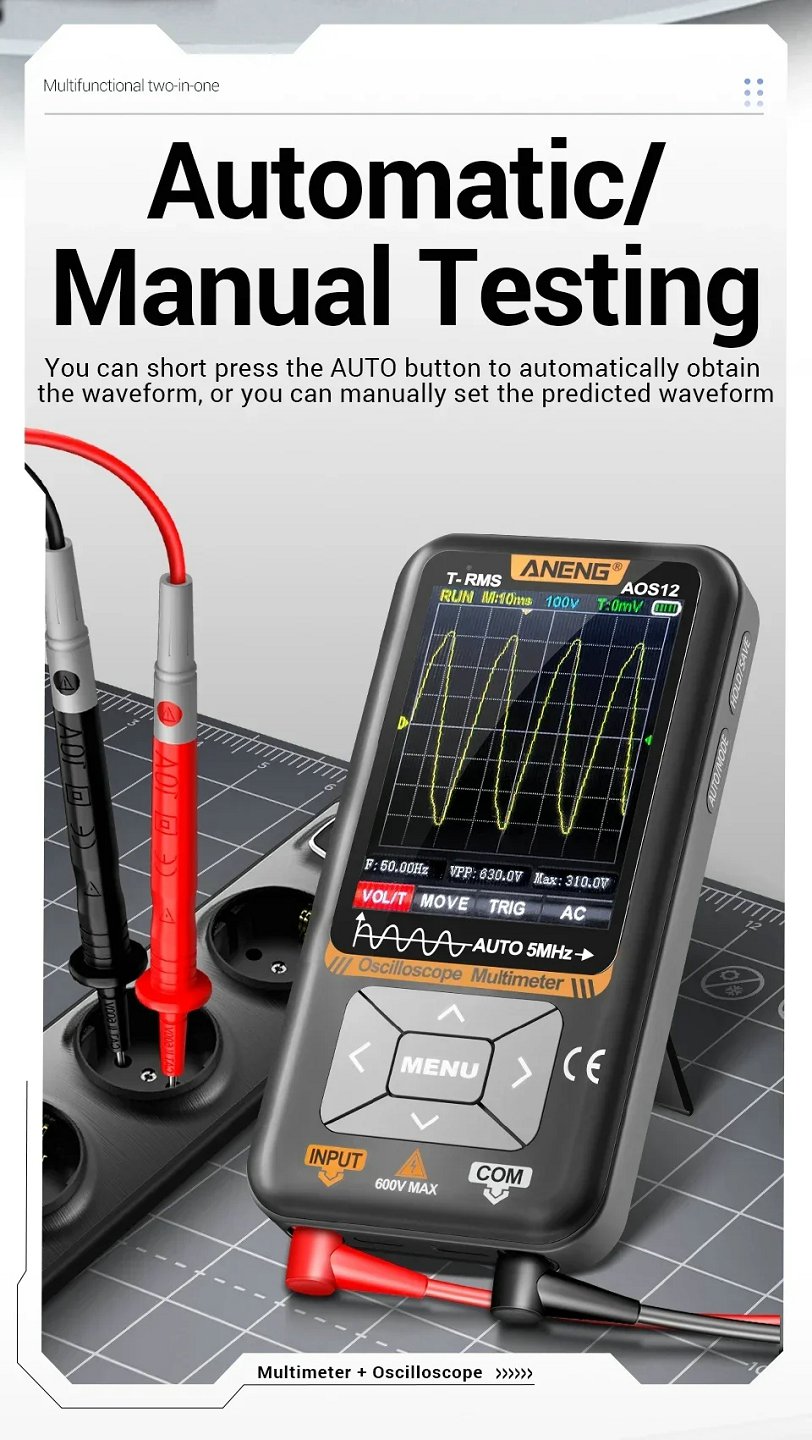

Range |
Automatic/manua |
|
Sampling rate |
3 times/s |
|
|

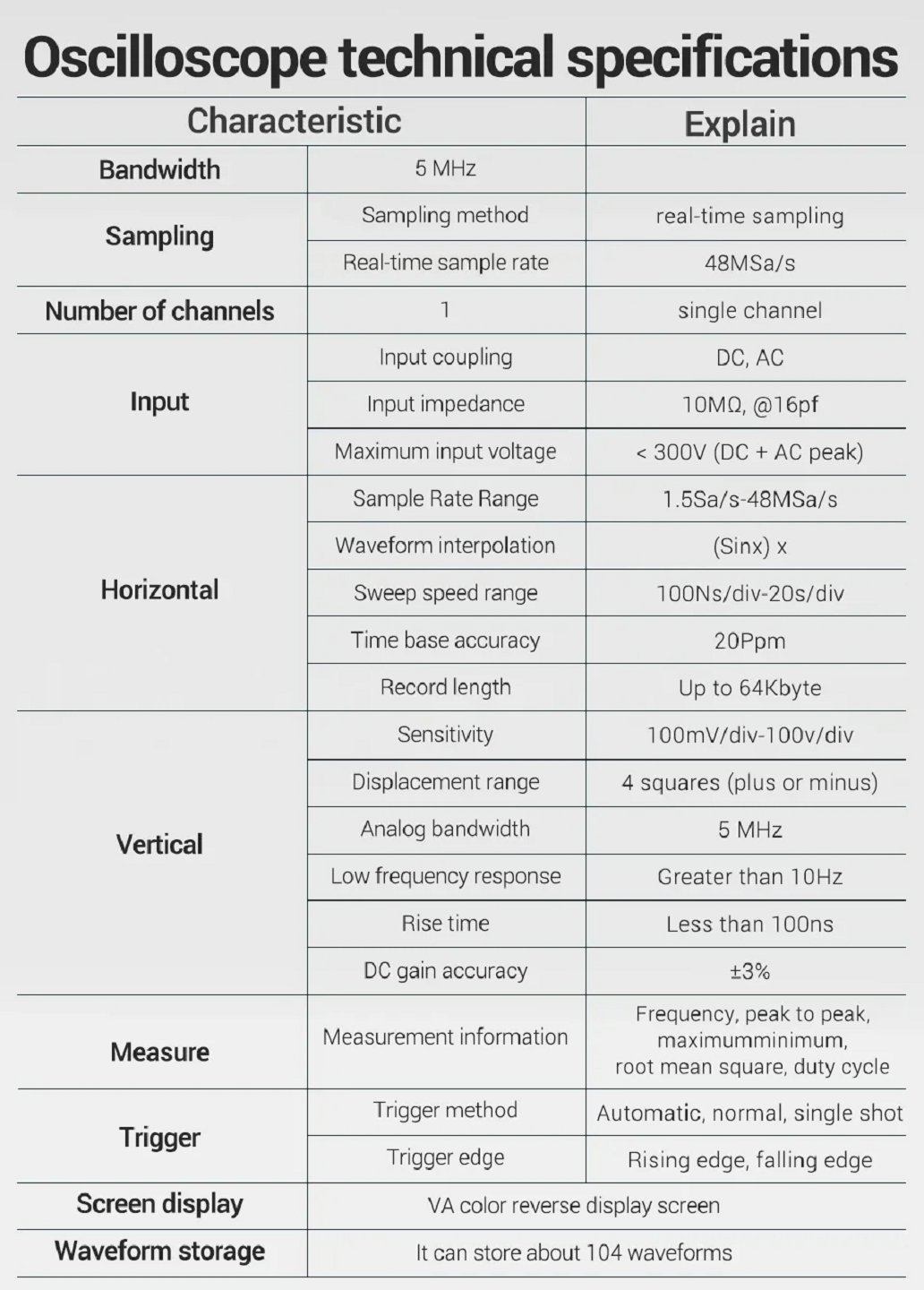

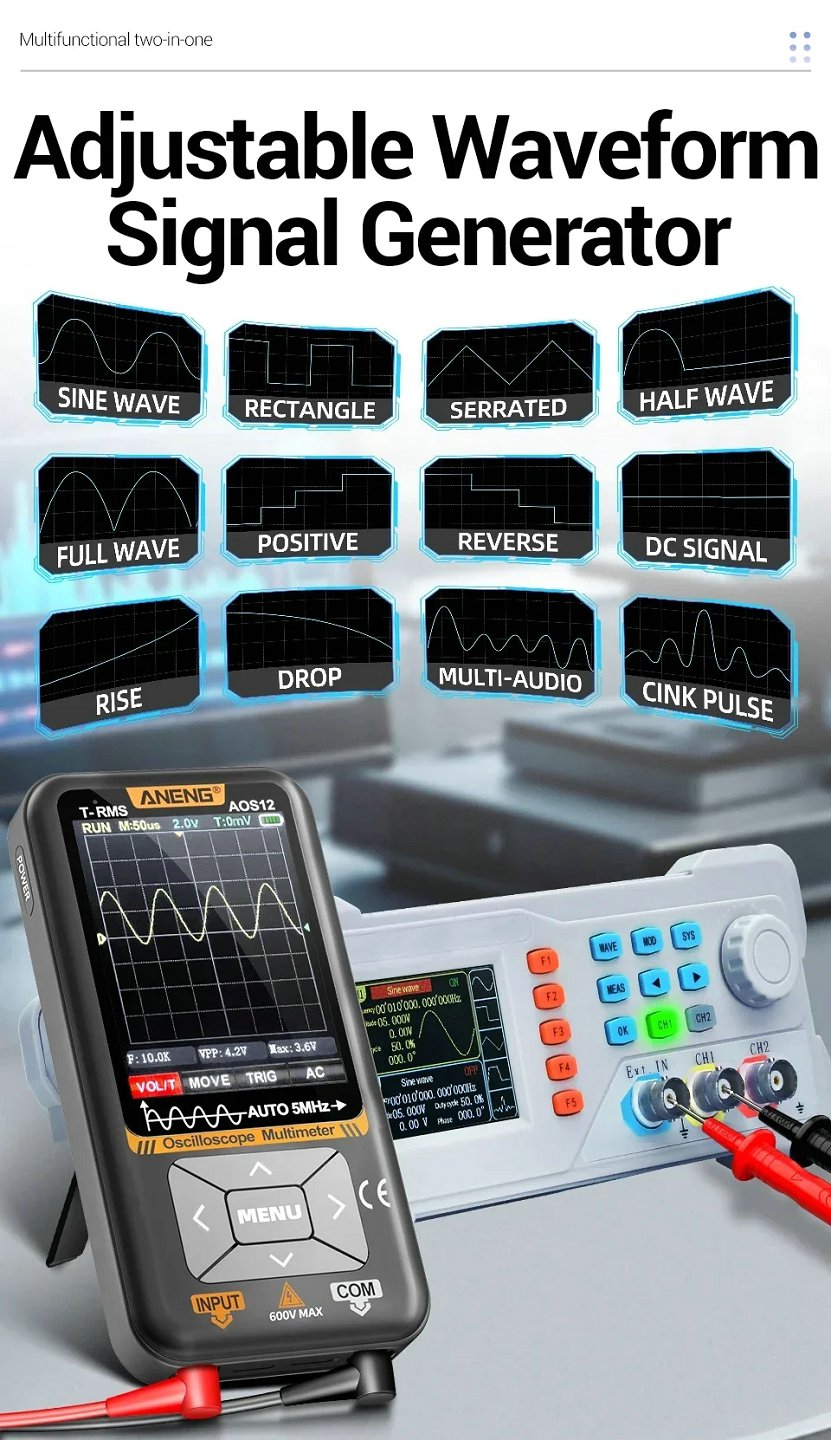

Oscilloscope technical specifications:
|
Characteristic |
Explain |
|
|
Bandwidth |
5 MHz |
|
|
Sampling |
Sampling method |
real-time sampling |
|
Real-time sample rate |
48MSa/s |
|
|
Number of channels |
1 |
single channel |
|
Input |
Input coupling |
DC, AC |
|
Input impedance |
10MQ, @16pf |
|
|
Maximum input voltage |
<300V (DC + AC peak) |
|
|
Horizontal |
Sample Rate Range |
1.5Sa/s-48MSa/s |
|
Waveform interpolation |
(Sinx)x |
|
|
Sweep speed range |
100Ns/div-20s/div |
|
|
Time base accuracy |
20Ppm |
|
|
Record length |
Up to 64Kbyte |
|
|
Vertical |
Sensitivity |
100mV/div-100v/div |
|
Displacement range |
4 squares(plus or minus) |
|
|
Analog bandwidth |
5 MHz |
|
|
Low frequency response |
Greater than 10Hz |
|
|
Rise time |
Less than 100ns |
|
|
DC gain accuracy |
±3% |
|
|
Measure |
Measurement information |
Frequency,peak to peakmaximumminimum,root mean square, duty cycle |
|
Trigger |
Trigger method |
Automatic,normal, single shot |
|
Trigger edge |
Rising edge, falling edge |
|
|
Screen display |
VA color reverse display screen |
|
|

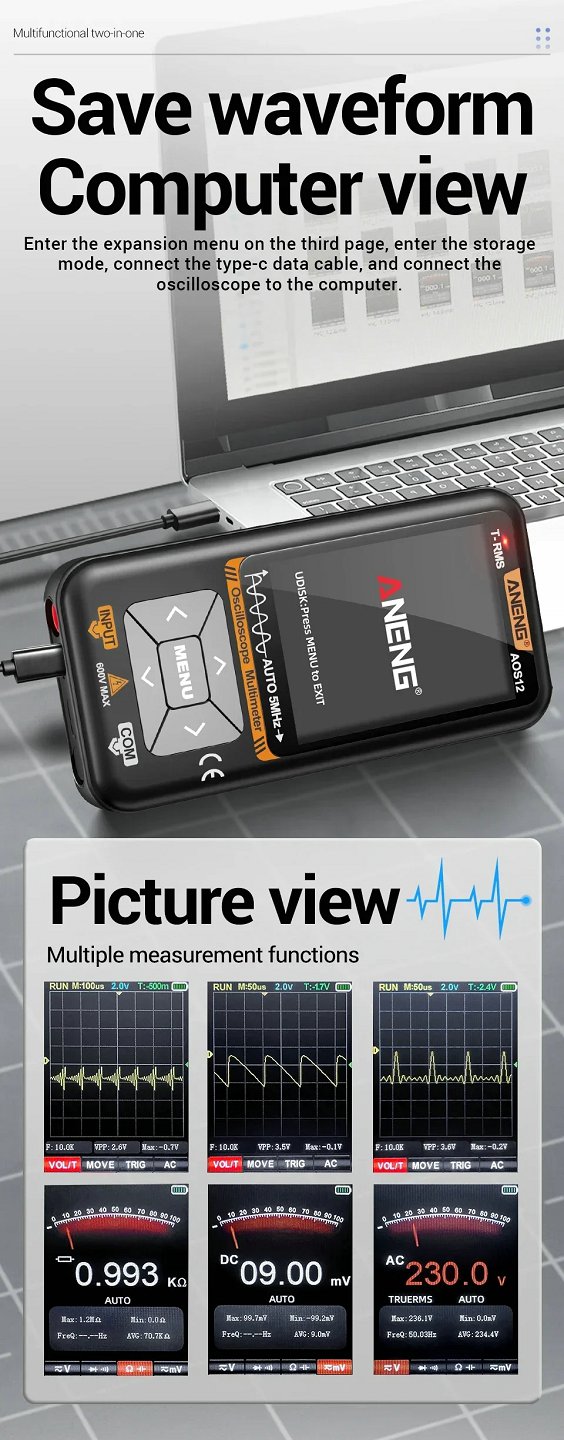

Waveform storage |
It can store about 104 waveforms |
|
