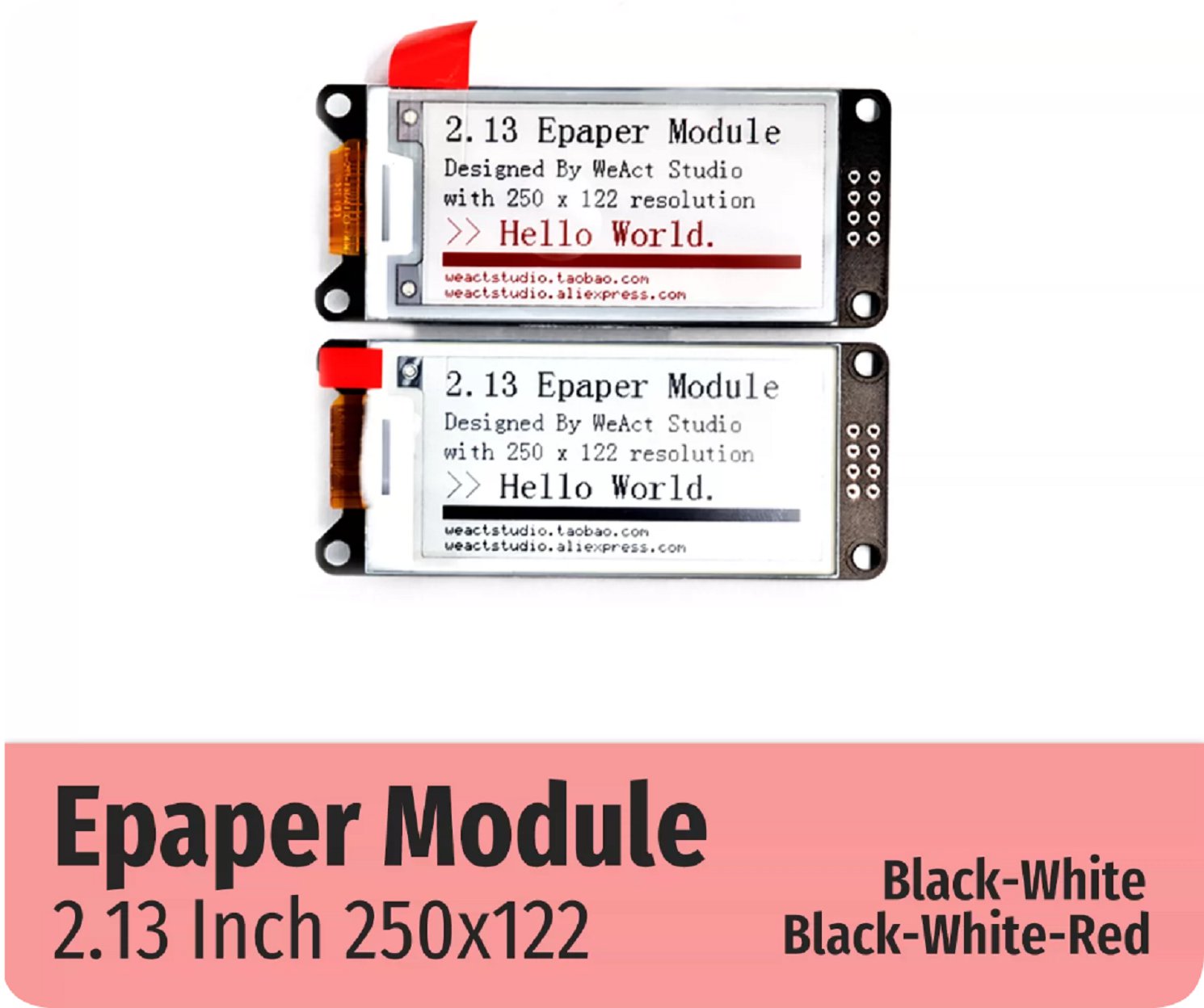

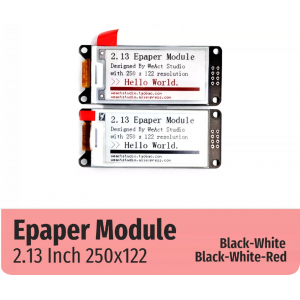

HS8514 WeAct 2.13 Inch Epaper diaplay Module
Data Link
Github:https://github.com/WeActStudio/WeActStudio.EpaperModule
WeAct Studio Epaper Module
We provide two types of modules: black-white, black-white-red. The black-white module supports partial screen brushing, while the black-white-red module does not support partial screen brushing.
Full brush time: The black-white module is about 3s, the black-white-red module is about 19s.
Display size: 2.13 inches
Display resolution: 250x122
Display size: 2.9 inches
Display resolution: 296x128
Display color: black-white/black-white-red
I/O level: 3.3V
Supply voltage: 3.3V-5V
Connector Type: 2x4Pin 2.54mm row pin /MX1.25-8P wire-to-board connector
Module size: 72mmx30mm
Shipping list
1. Electronic paper module X 1
2. 2.54mm 2x4Pin row pin x 1
3. Mx1.25-8p to 8P 2.54mm Dupont cable conversion cable x 1
