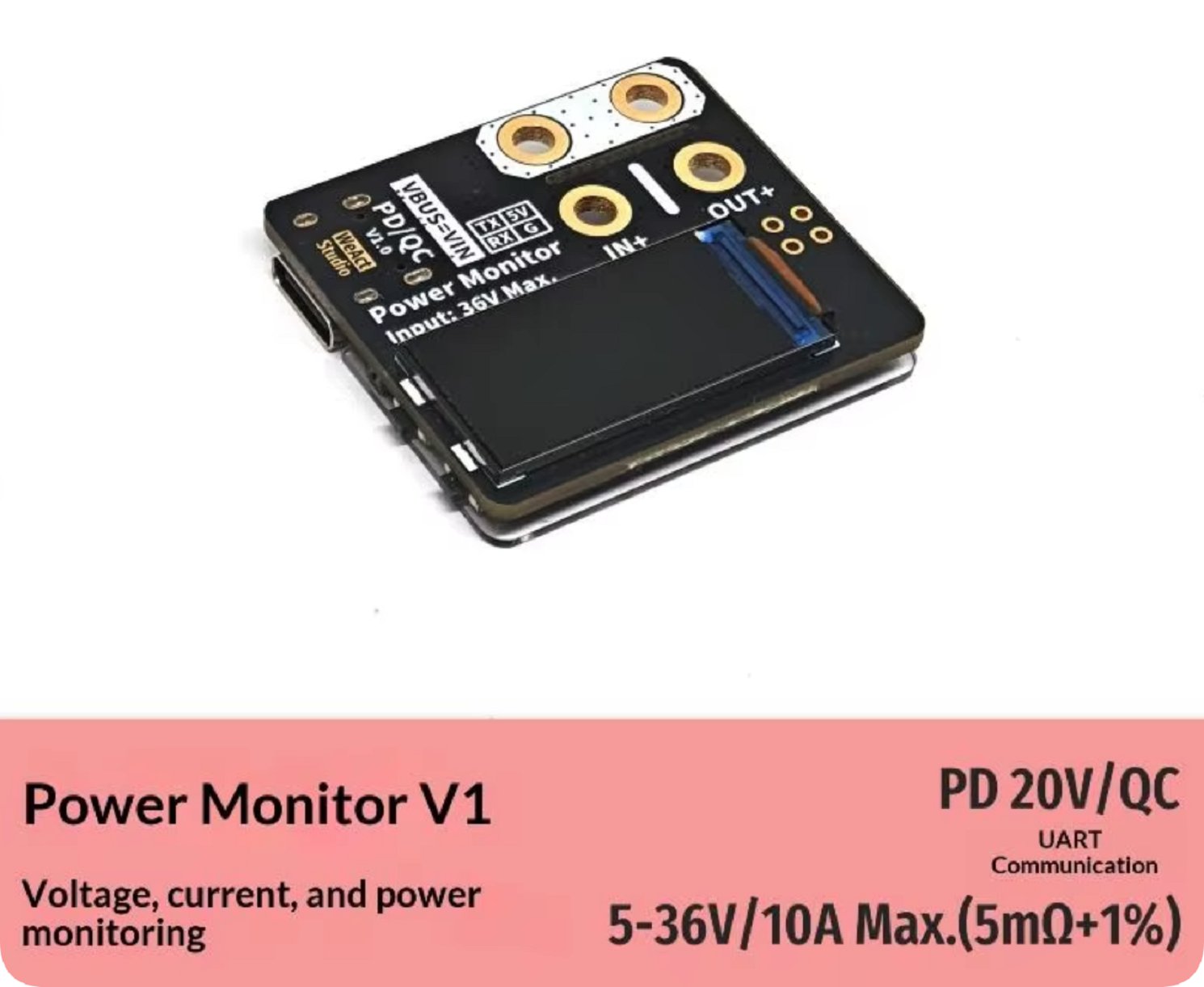

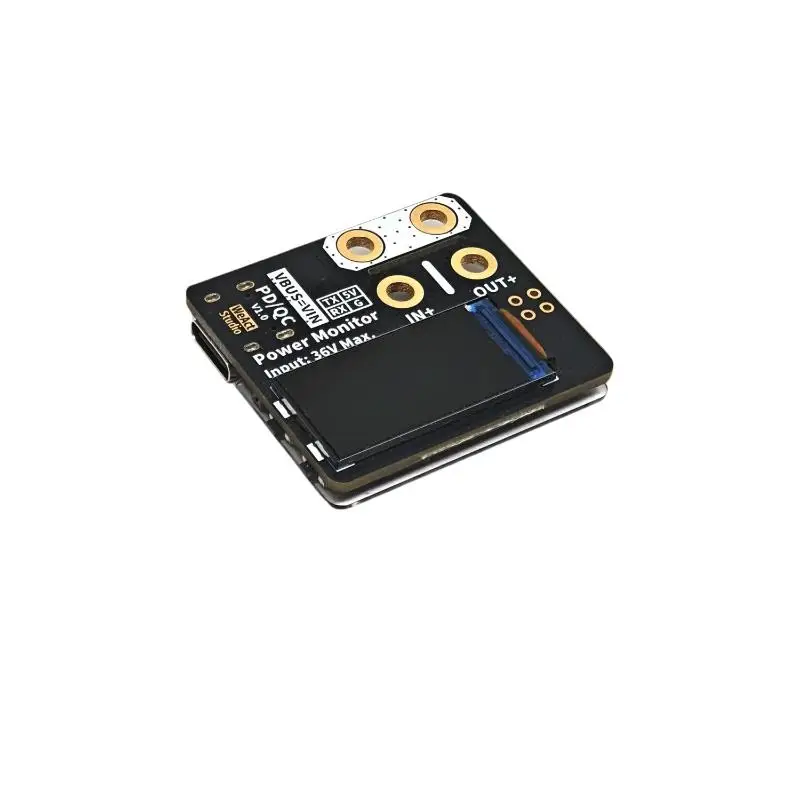

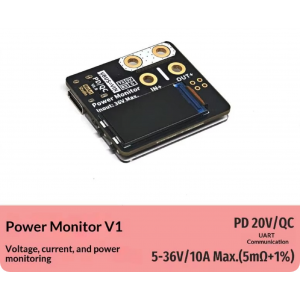

HS8528 WeAct 36V 10A Max Power Monitor Module

Description:

Power Monitor Module 36V 10A Max With XT60 Connector PD QC Support For RC Drone Battery Power Detection

Specifications:

Input: 5-36V/10A

Material: Plastic+Metal

Packing: 1 set

Notes for Attention

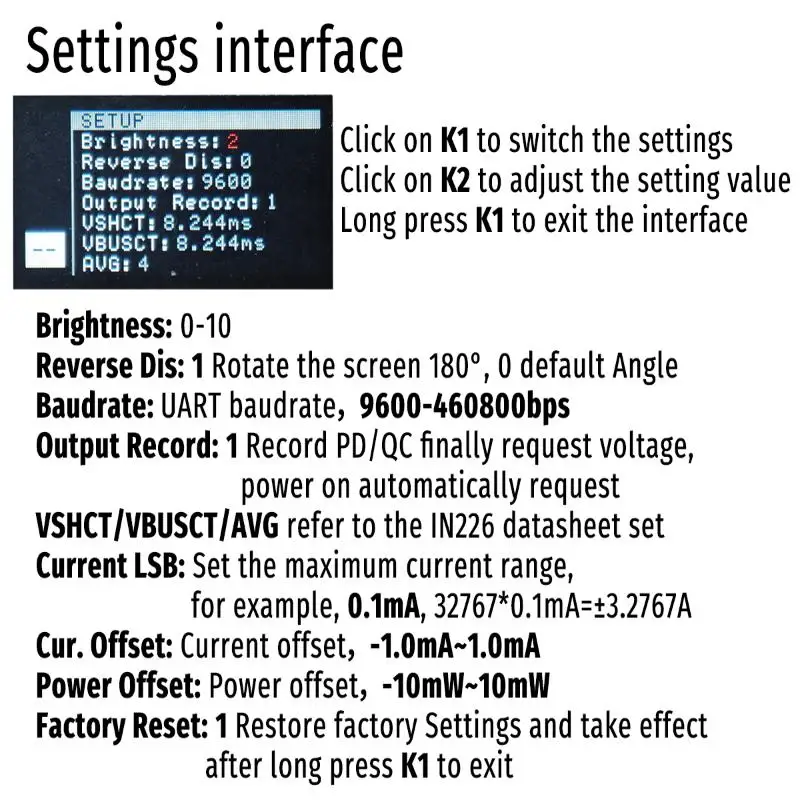

1. When the current and power are at no-load state and the display is not 0, zeroing can be achieved through the settings interface.

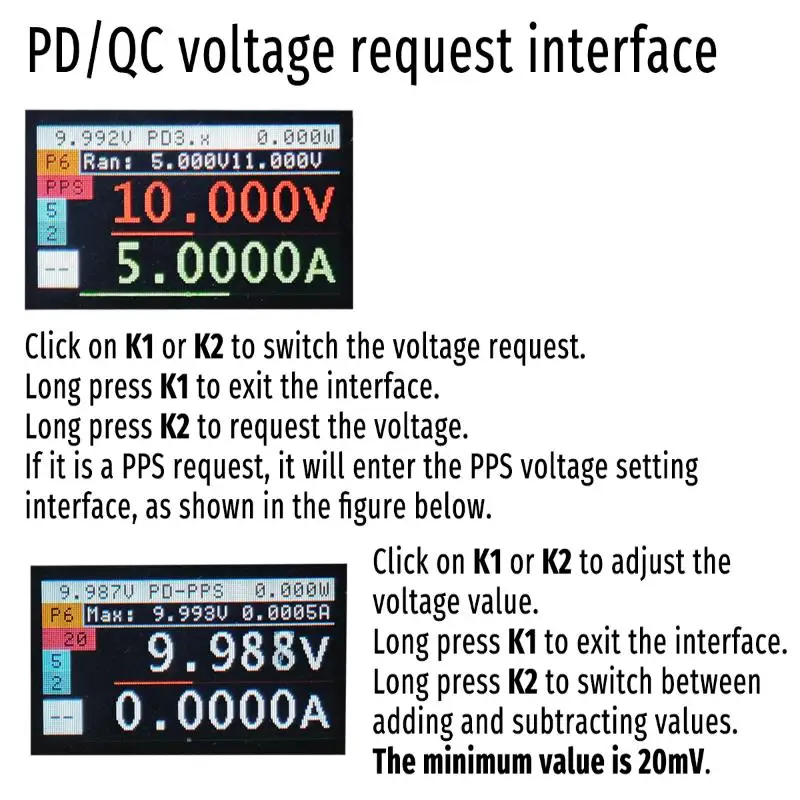

2. The PD request function supports requesting a 28V voltage(Need upgrade firmware to v1.0.0.1), but 36V has not been tested.

3. The external soldering wire input and USB Type-C input cannot be used simultaneously.

4. The PCB does not support directly soldering XT60/XT30 terminals.

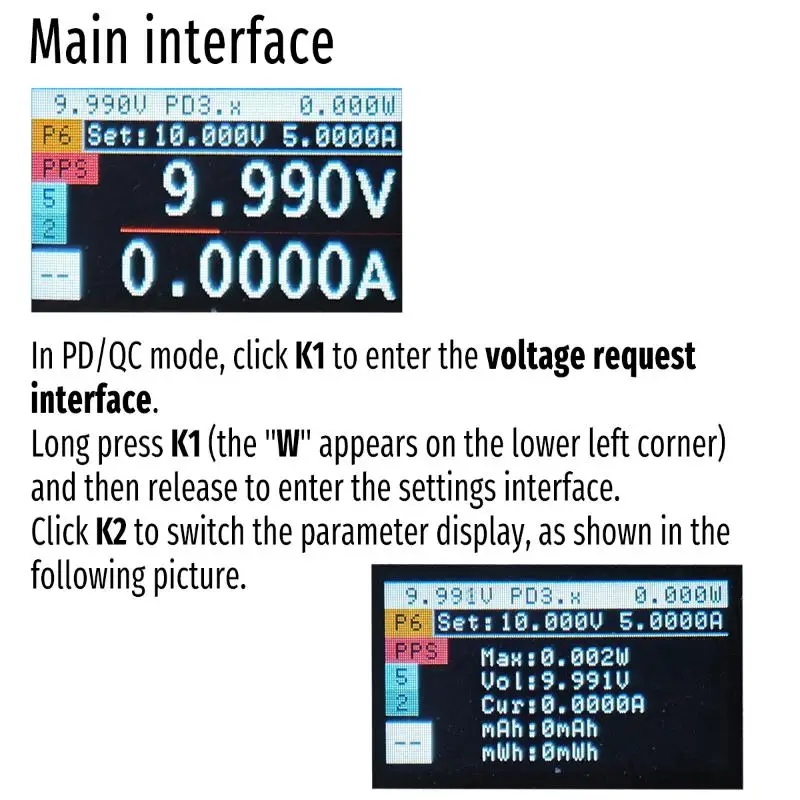

5. After enabling the Output Record function for the first time, you need to request the voltage again and then return to the main interface.

Firmware Release Notes

**V1.0.0.1**

1. Fix the issue where the screen brightness parameters in the settings interface are not saved.

2. Add the function of automatic screen sleep(Dis Auto Off). The screen will automatically turn off after 10 seconds of no operation. Press any key or set the communication settings to PD PDO to display the screen.

3. The PD protocol supports EPR Fixed and AVS. A 28V voltage can be applied. The voltage range is 15V - 28V with a 0.1V step adjustment (the 36V gear has not been tested).

4. Communication protocol increases EPR AVS PDO data reading and PD PDO number reading.
