| Brand: | Haitronic |
| Product Code: | HS8562 |
| Availability: | 999999 |
HS8562 GWinstek SPS-3610 36V 10A Switching DC power supply
Features
Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control
The SPS-Series is single output, 360W, switching DC power supplies.
OVP protects the SPS-Series and their loads from unexpected conditions.
High regulation is maintained at 0.01%. Remote sensing adds an extra level of
precision by compensating cable losses between loads.
Turning the output On/Off from external device is available through remote control terminals.
The SPS-Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.

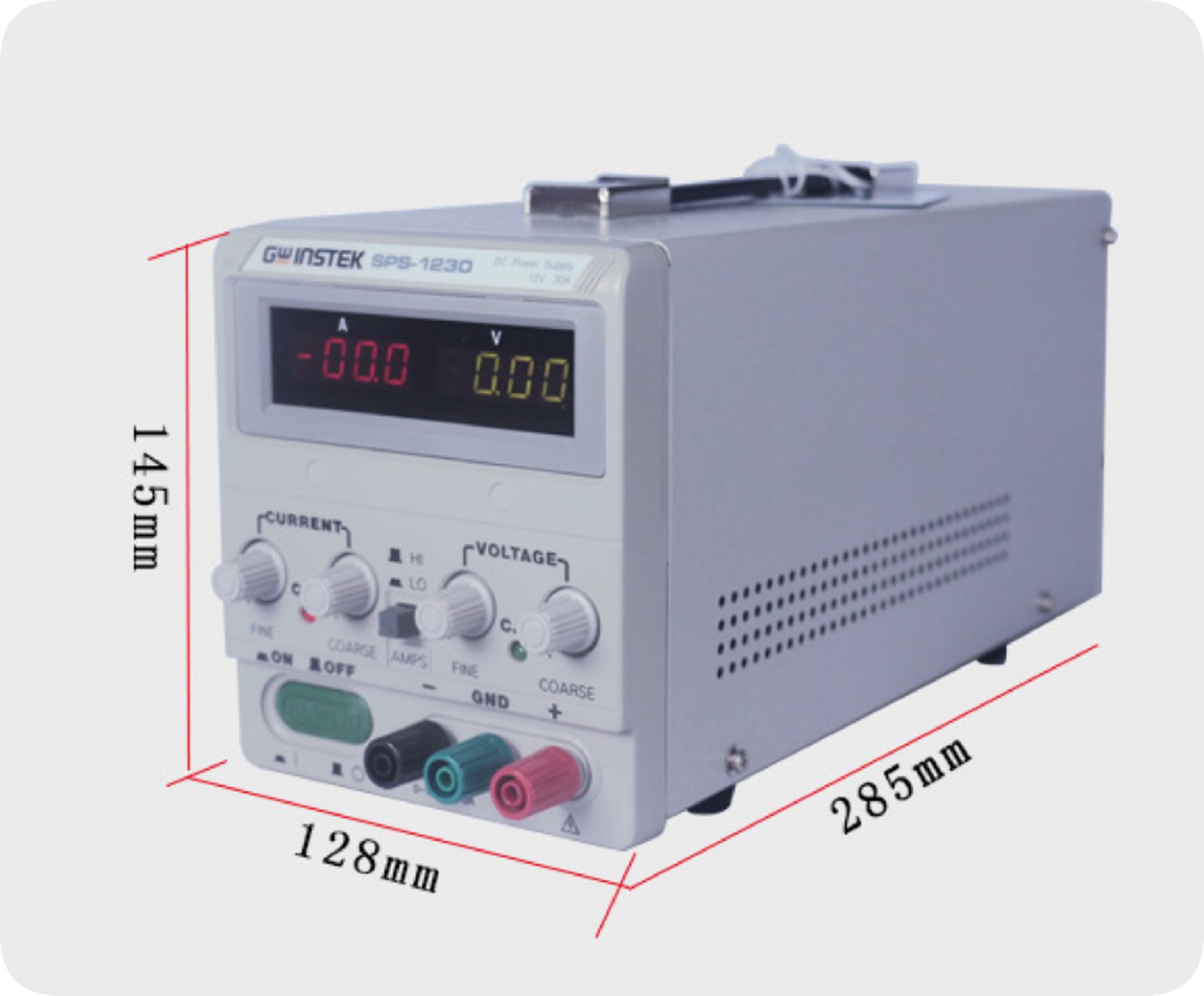

SPS-Series Specifications The specifications apply when the SPS-Series is powered on for at least 30 minutes under +20°C~+30°C. OUTPUT SPS-1230 SPS-1820 SPS-2415 SPS-3610 SPS-606 Voltage 0~12V 0~18V 0~24V 0~36V 0~60V Current 0~30A 0~20A 0~15A 0~10A 0~6A CONSTANT VOLTAGE OPERATION Line Regulation < 5mV Load Regulation < 5mV Ripple & Noise < 5mVrms, 100mVp-p 20Hz ~ 20MHz Recovery Time < 500μS ( 50% Load change, Minimum load 0.5A ) Temp. Coefficient < 100 ppm/°C Output Range 0 to rating voltage continuously adjustable CONSTANT CURRENT OPERATION Line Regulation < 3mA Load Regulation < 3mA Ripple Current < 3mArms (SPS-606) < 5mArms (SPS-3610) < 10mArms (SPS-2415) < 10mArms (SPS-1820) < 30mArms (SPS-1230) Output Range 0 to rating current continuously adjustable (Hi/Lo range switchable) METER Type 3 1/2 Digit 0.39" LED Display Accuracy ±( 0.5% of rdg + 2 digits ) INSULATION Chassis and Terminal 20MΩ or above (DC 500V) Chassis and AC Cord 30MΩ or above (DC 500V) POWER SOURCE AC 115V/230V ±15%, 50/60Hz DIMENSIONS & WEIGHT 128(W) x 145(H) x 285(D)mm Approx. 3.2kg
