| Brand: | Haitronic |
| Product Code: | HS8563 |
| Availability: | 999999 |

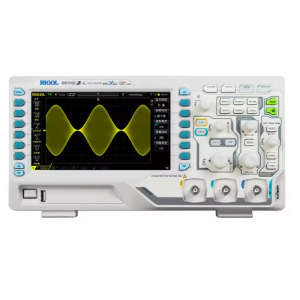

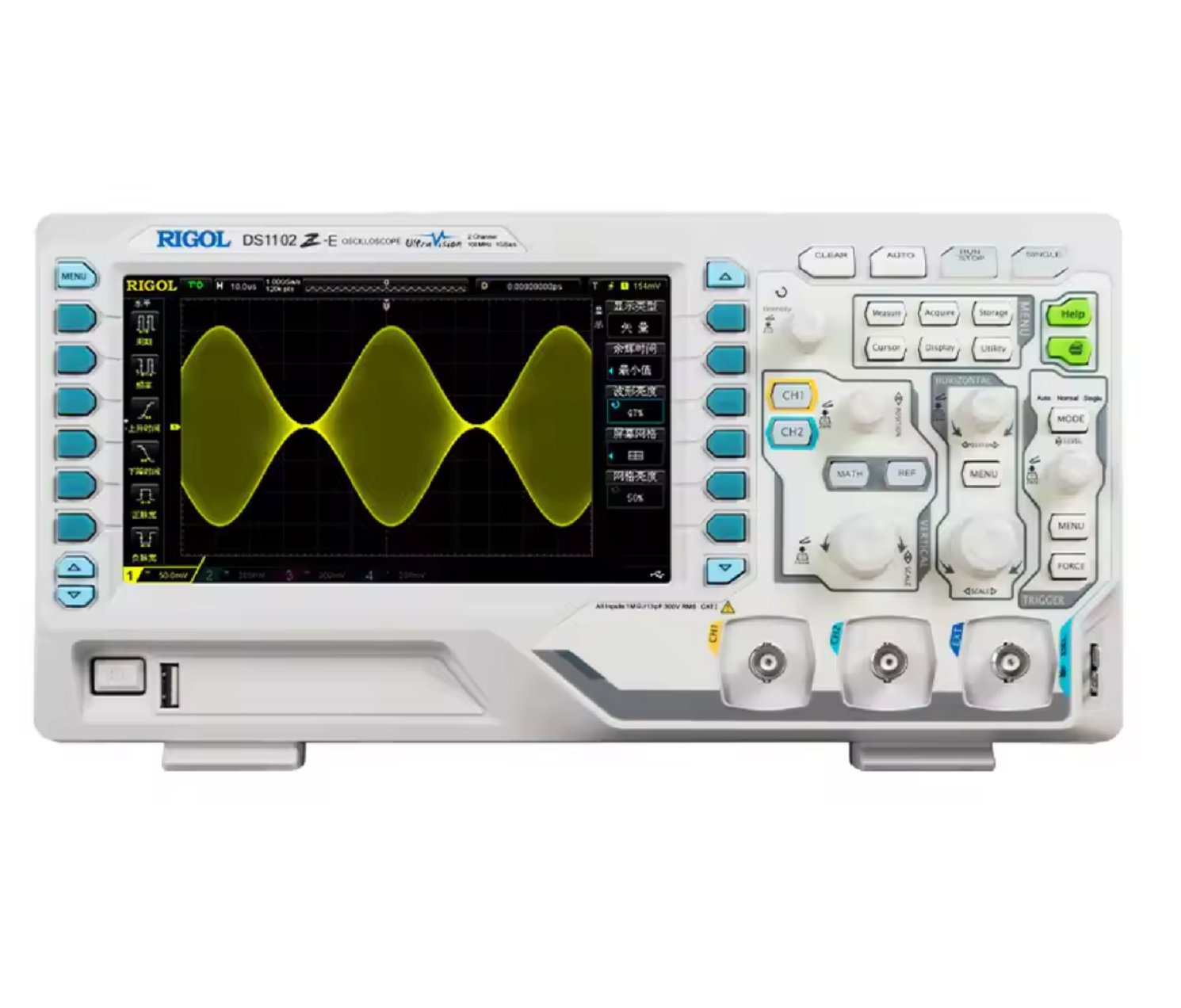

HS8563 RIGOL DS1102Z-E Oscilloscope 200MHz

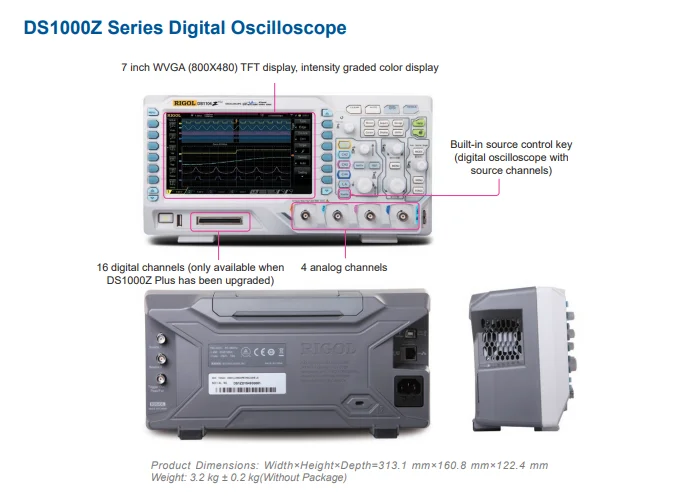

DS1000Z series is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. Wherein, the mixed signal digital oscilloscope aimed at the embedded design and test ffelds is equipped with 16 digital channels and allows users to measure analog and digital signals at
the same time.
Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz4 analog channels, 16 digital channels (only available for DS1000Z Plus
that has been upgraded with the MSO upgrade option)Real-time sample rate up to 1 GSa/sMemory depth up to 24 MptsUp to 30,000 wfms/s waveform capture rateUp to 60,000 frames hardware real-time waveform recording and

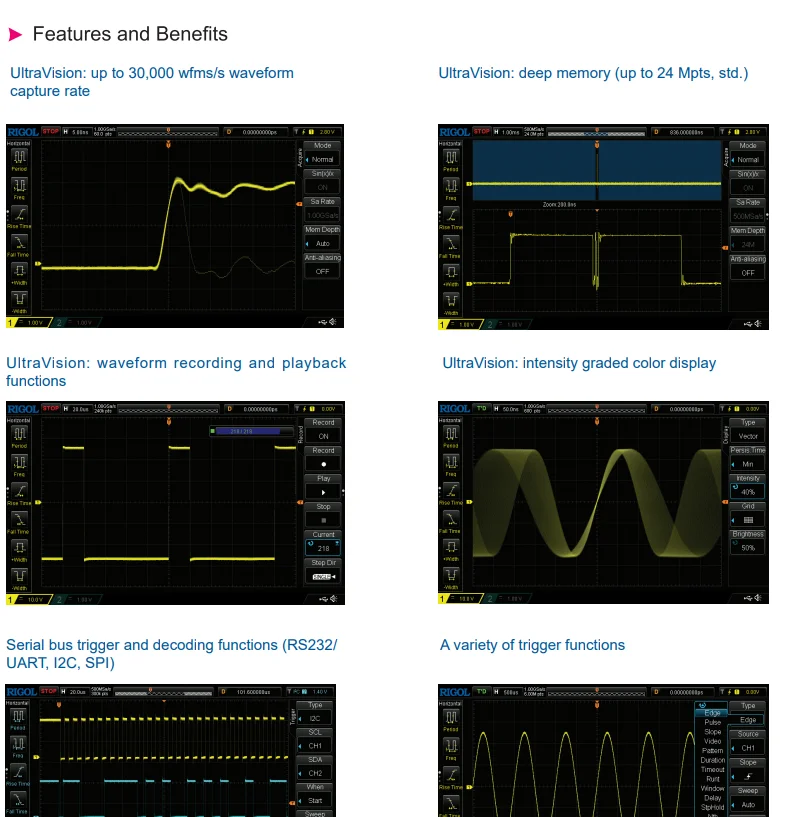

playback functionsInnovative "UltraVision" technologyVarious trigger and bus decoding functionsLow noise ffoor, vertical scale range: 1 mV/div to 10 V/divBuilt-in dual-channel 25 MHz function/arbitrary waveform generator
(only for digital oscilloscope with source channels)Various interfaces: USB Host&Device, LAN (LXI), AUXCompact size, light weight, easy to use7 inch WVGA (800x480) TFT LCD, intensity graded color display
