HS8582 FNIRSI TMP-610S 3-in-1 Digital Multimeter Oscilloscope Signal Generator 60000 Counts 10MHz 50MS/s Automotive Diagnostic Tool
The TMP‑610S integrates a 60000‑count True‑RMS multimeter, 10‑MHz oscilloscope with 50 MS/s sampling rate, and a 50‑kHz 13‑waveform signal‑generator within a compact body. It features auto‑ranging measurement, customizable display UI, waveform persistence analysis and adjustable signal‑output parameters, fulfilling multi‑functional testing demands for circuit debugging and field‑site maintenance.
Kindly Tip: TMP-610S is a 3-in-1 professional device (Multimeter + Oscilloscope + Signal Generator) for advanced troubleshooting, while TMP-600 is a high-precision standalone multimeter designed for accurate daily electrical measurements.
1. 3-in-1 Integrated Testing Platform: Combines a true RMS multimeter, oscilloscope, and signal generator into a single compact device for all-in-one electronic diagnostics and troubleshooting.
2. 60,000-Count High-Precision Measurement: Delivers stable and accurate True RMS readings with μA and mV resolution, ensuring reliable performance for sensitive electronic and PCB-level testing.
3. 10MHz Oscilloscope with 48MSa/s Sampling: Provides real-time waveform capture with AC/DC coupling support, enabling fast and accurate signal analysis and fault detection.
4. 50KHz DDS Signal Generator: Supports 13 waveform outputs with adjustable frequency, amplitude, and duty cycle, making it ideal for circuit testing, simulation, and calibration tasks.
5. Bluetooth Smart App Connectivity (DMM Only): Enables wireless monitoring, real-time data logging, and export functions through a mobile app, improving efficiency for field and remote measurements.
TMP‑600：Stand‑alone True‑RMS Digital Multimeter
TMP‑610S：3‑in‑1 Tester (DMM + DSO + DDS Signal Generator)
Digital Multimeter Parameters
DC Voltage
Range：600mV, 6V, 60V, 600V, 1000V
Accuracy ：±(0.03%+5d)
AC Voltage
Range：600mV, 6V, 60V, 600V, 750V
Accuracy：±(0.3%+15d)
DC Current
Range：600μA, 6000μA, 60mA, 600mA；6A, 10A
Accuracy：±(0.15%+5d)；±(0.2%+5d)
AC Current
Range：600μA, 6000μA, 60mA, 600mA；6A, 10A
Accuracy ：±(0.5%+15d)；±(0.75%+15d)
Resistance
Range：600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ；60MΩ
Accuracy：±(0.1%+5d)；±(0.2%+10d)
Capacitance
Range：60nF, 600nF, 6μF, 60μF；600μF, 6mF, 60mF
Accuracy：±(2.5%+30d)；±(3.5%+30d)
Frequency
Range：10Hz‑60MHz
Accuracy：±(0.01%+5d)
Temperature
Range：‑40℃‑1000℃,‑20℃‑300℃；‑40℉‑1832℉,‑40℉
Accuracy：±(1.0%+5℃)；±(1.5%+5℉)
Continuity
Range：0Ω‑1KΩ
Accuracy：±(0.2%+5d)
Diode
Range：0V‑3.0V,0Ω‑1KΩ
Accuracy：±(1%+5d)
AC Frequency Response
Range：10KHz
Accuracy：‑
Oscilloscope Parameter
Real‑time sampling rate: 48MSa/s
Analogue bandwidth: 10M
HzInput impedance: 1MΩ
Coupling mode: AC / DC
Test voltage range:80Vpp (±40V) with 1:1 probe; 800Vpp (±400V) with 10:1 probe (Remark: Oscilloscope set to ×1 / ×10 attenuation gear)
Vertical sensitivity: 10mV/div ~ 10V/div (Remark: Under ×1 gear)
Vertical offset: Adjustable with status prompt
Horizontal time‑base range: 50ns‑20s
Trigger mode: Auto, Normal, SingleTrigger slope: Rising edge, Falling edge, 50%‑level trigger
Trigger level: Adjustable with status prompt
Measurement parameters:Frequency, Period, Positive duty‑cycle, Negative duty‑cycle, Positive pulse width, Negative pulse width, Maximum value, Minimum value, Peak‑to‑peak value, Amplitude, RMS value, Average value
Persistence: Off / 500ms / 1s / Infinite
Cursor measurement: Supported
Waveform snapshot and storage: Supported

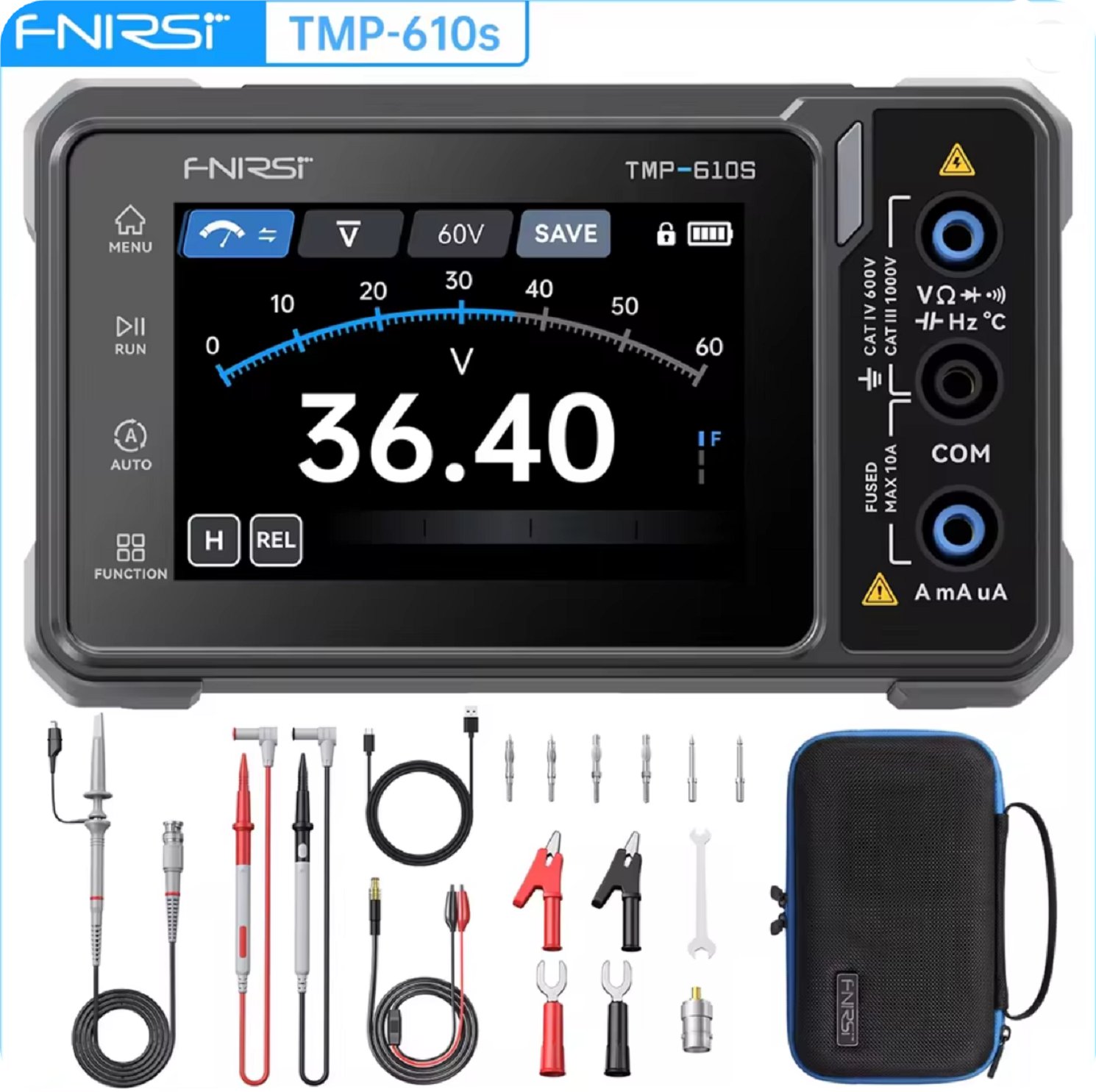

TDM-610S Package List
1. TMP‑610S DMM+DSO+DDS Scope
2. User Guide
3. P6100 Probe
4. Adapter
5. Alligator Clips
6. DMM Probes
7. Probe Accessories
8. Storage Case
9. Type‑C Charging Cable
TDM-600 Package List
1. TMP‑600S DMM Scope
2. User Guide
3. DMM Probes
4. Probe Accessories
5. Storage Case
6. Type‑C Charging Cable
