| Brand: | Haitronic |
| Product Code: | HS8597 |
| Availability: | 999999 |

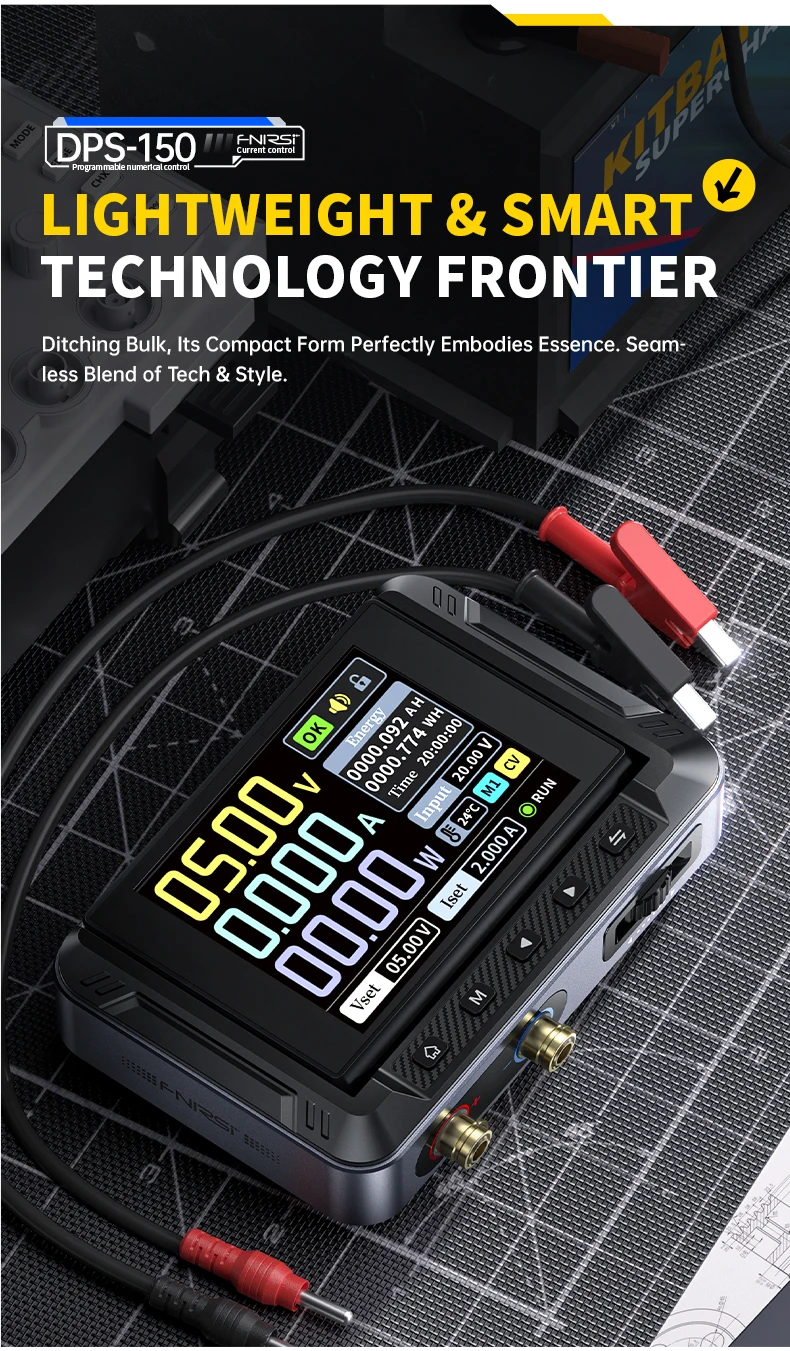

HS8597 FNIRSI DPS150 Portable Programable Laboratory DC Power Supply 30V 100mA-5A 150W Adjustable Voltage Regulator Bench Switching PD

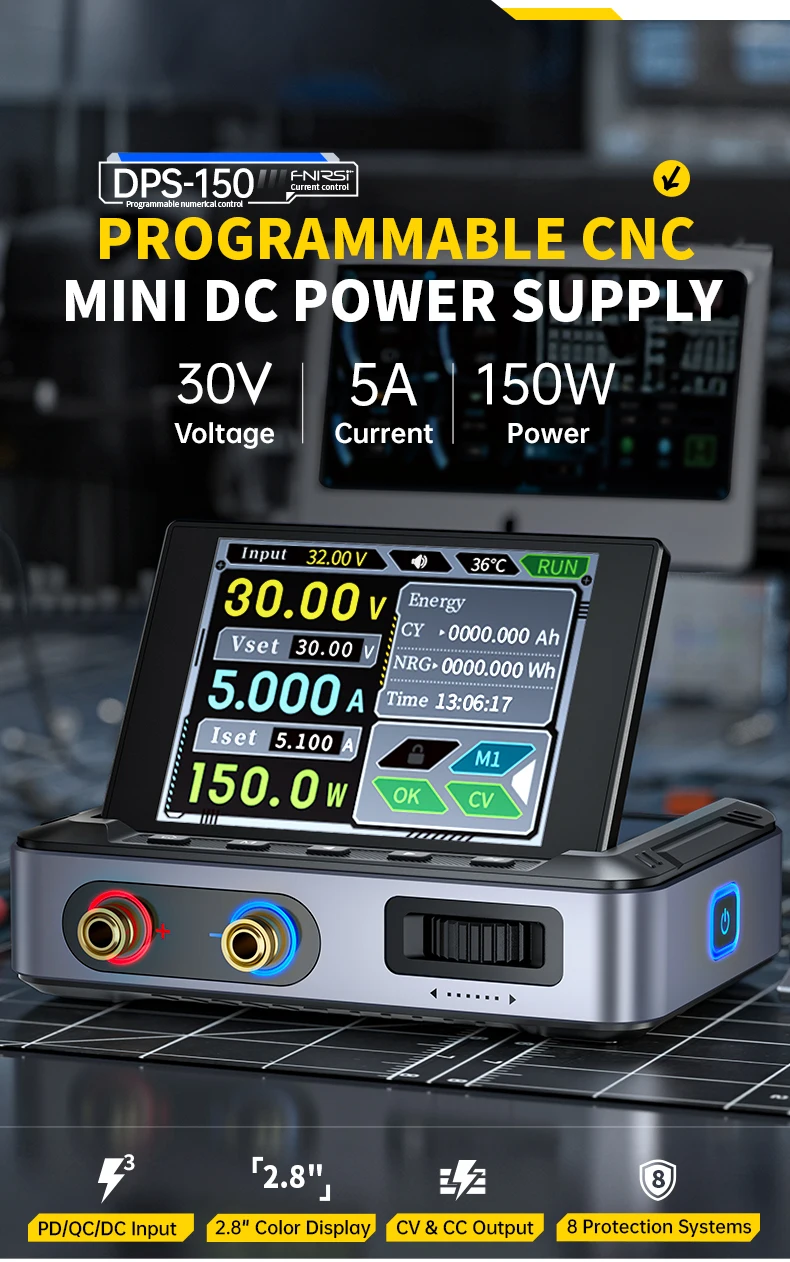

The FNIRSI-DPS150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30V) and current (0-5A). It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable humanized design, meeting various application needs. It is designed to provide you with high-performance and stable CNC power supply.

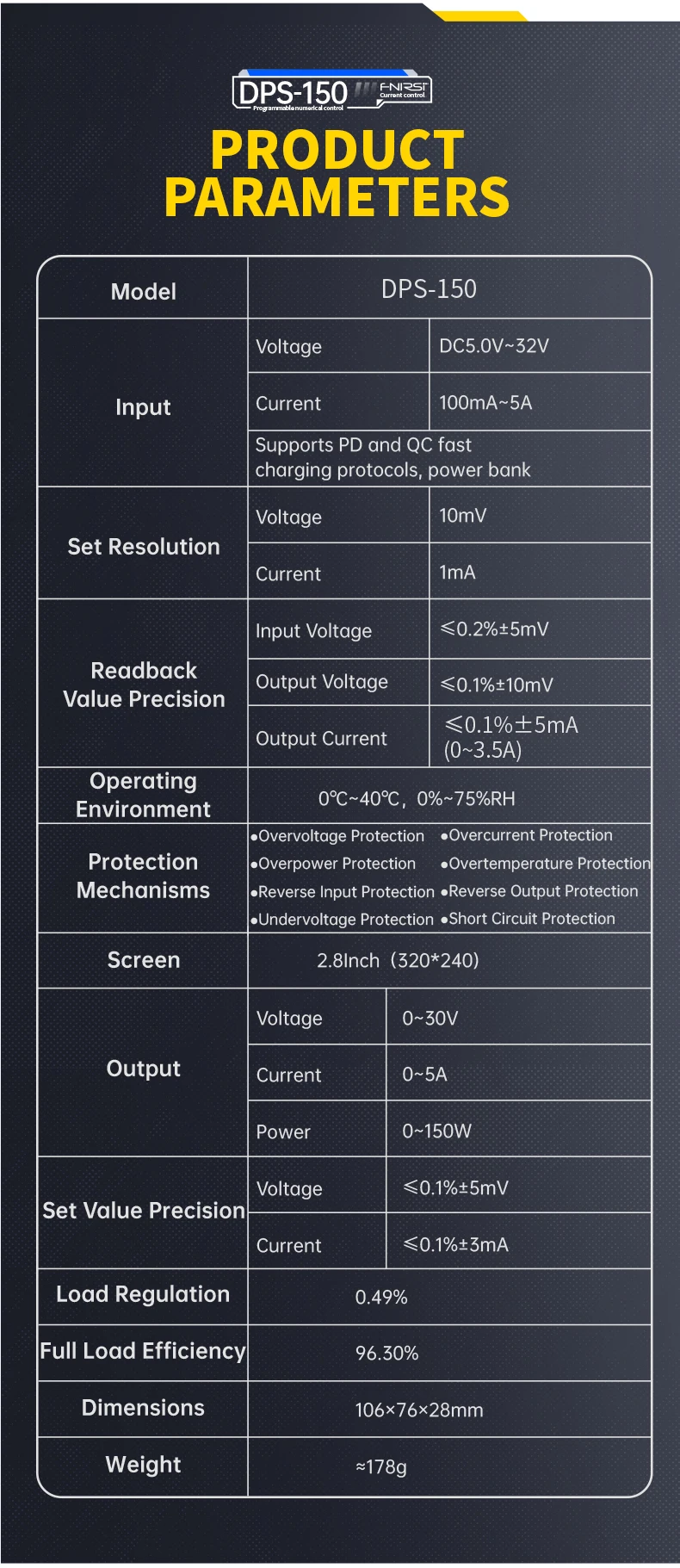

1. Model：DPS-150
2. Input Voltage：DC5.0V~32V
3. Input Current：100mA~5A

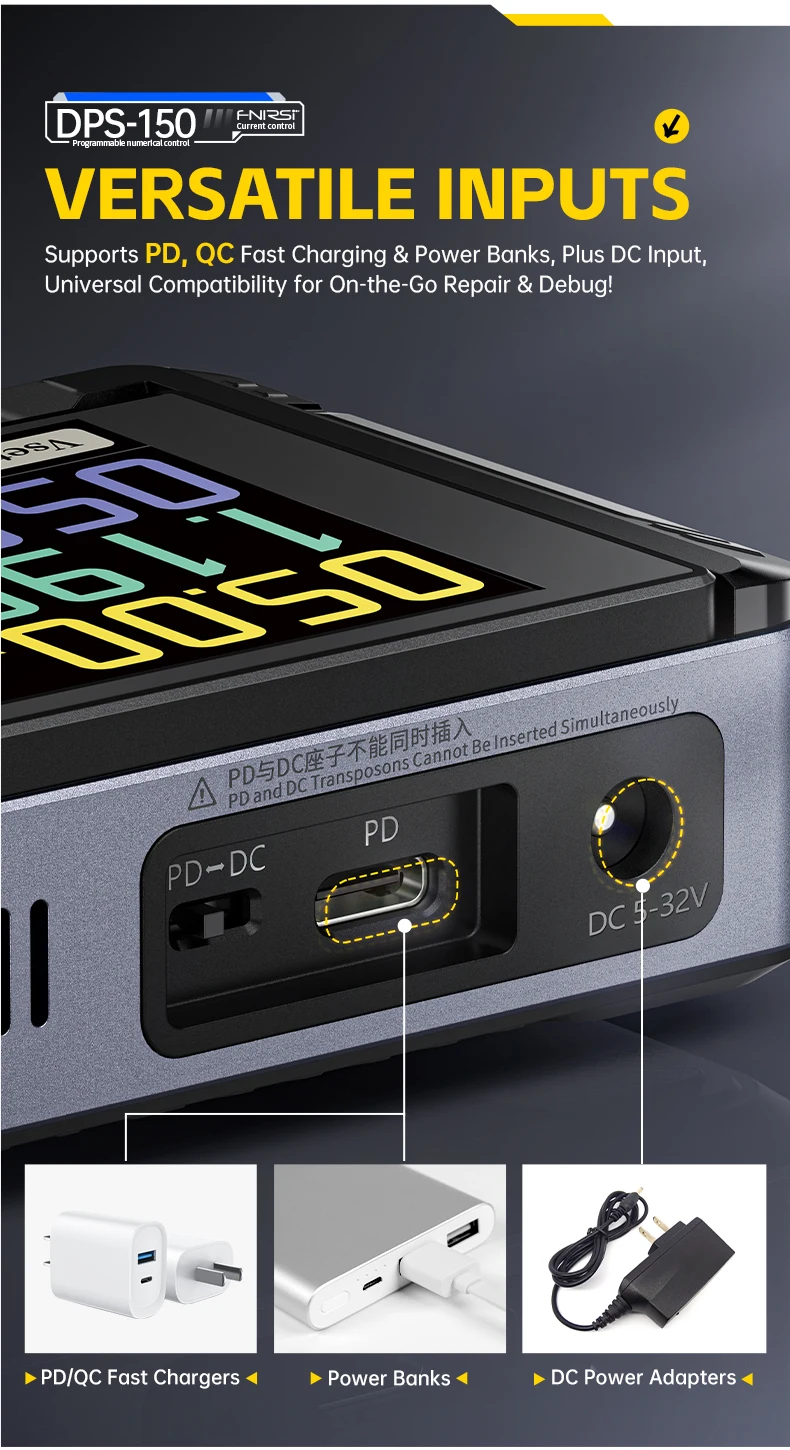

4. Input Way 1：PD fast charger
5. Input Way 2：QC fast charger
6. Input Way 3：Power bank
7. Input Way 4：DC power adapters
8. Output Voltage：0~30V
9. Output Current：0~5A
10. Output Power：0~150W
11. Operating Environment：0℃~40℃
12. Load Regulation：0.49%
13. Full Load Efficiency：96.30%

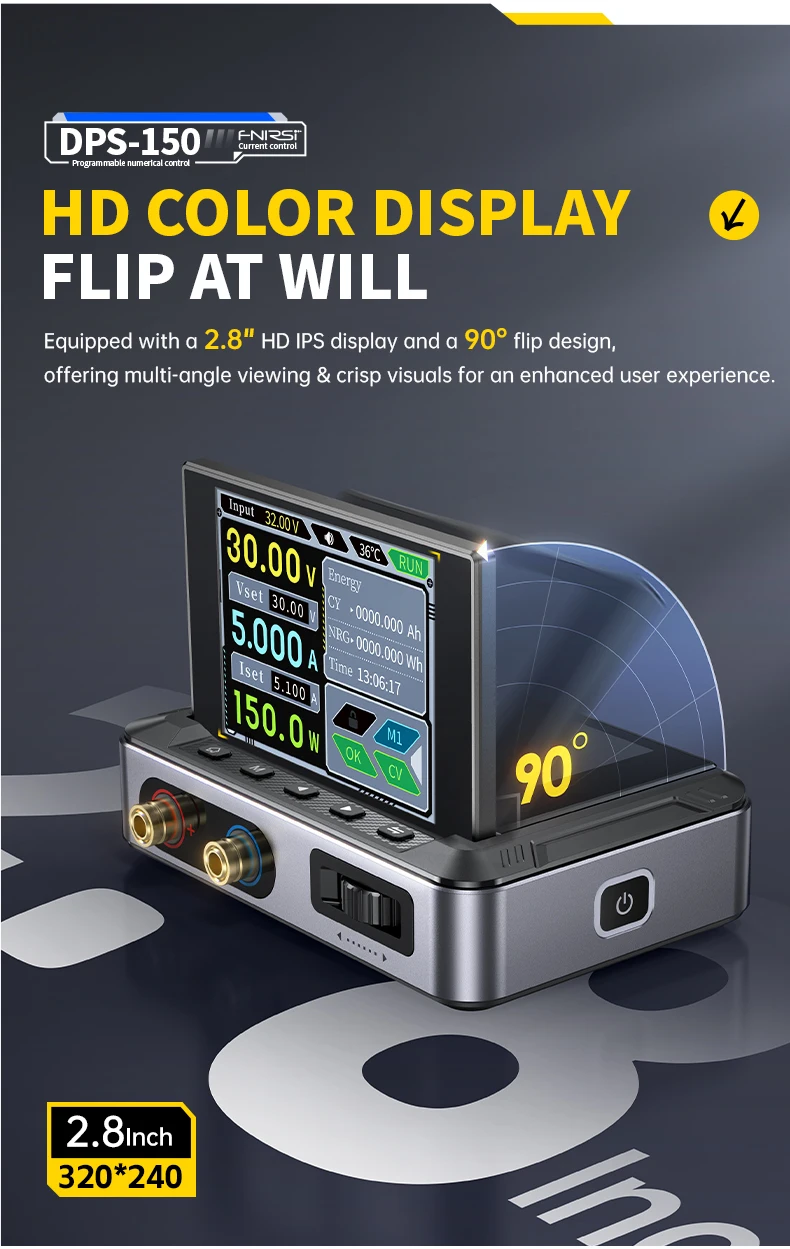

14. Screen：2.8 Inch (320*240)
15. Weight：about 178g
16. Dimensions：106×76×28mm

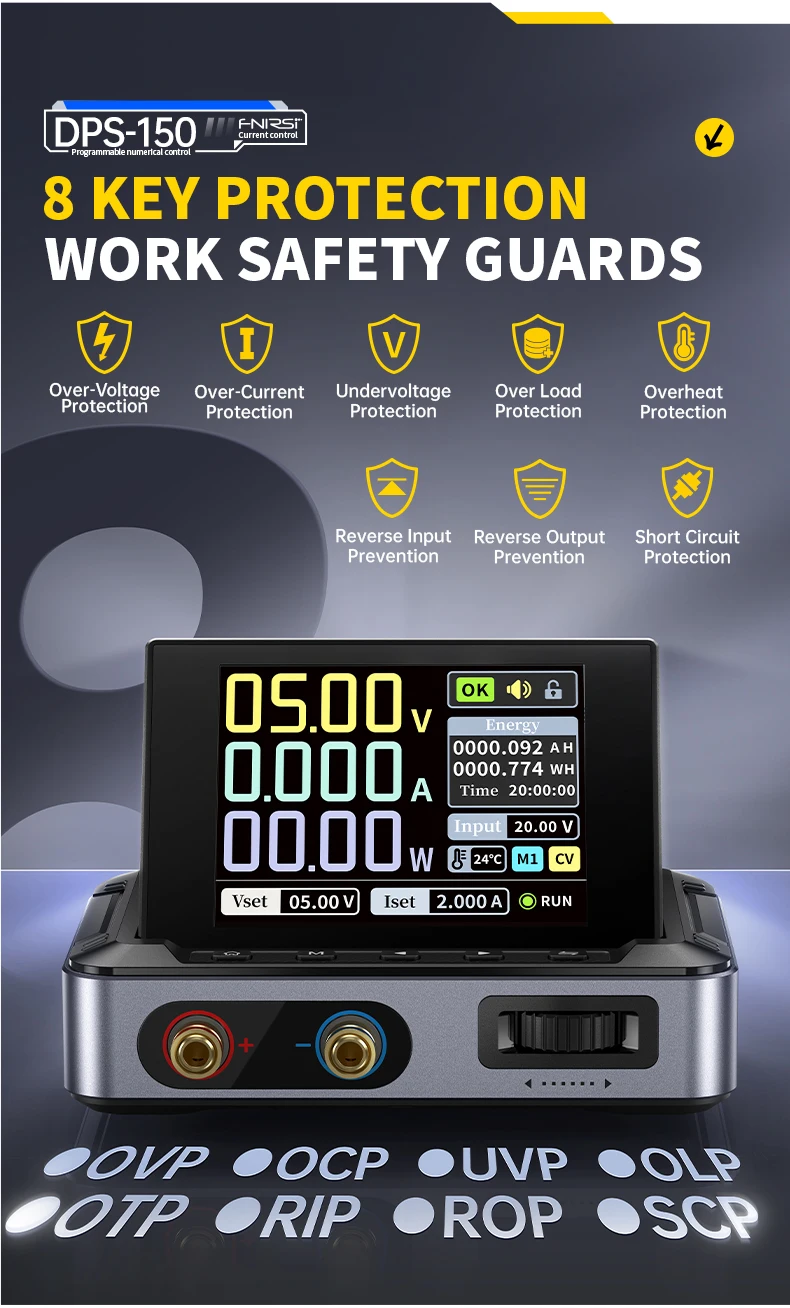

17. Overvoltage Protection：support
18. Overcurrent Protection：support
19. Undervoltage Protection：support
20. Overpower Protection：support
21. Overtemperature Protection：support
22. Reverse Input Protection：support
23. Reverse Output Protection：support
24. Short Circuit Protection：support
25. Firmware upgrade: support

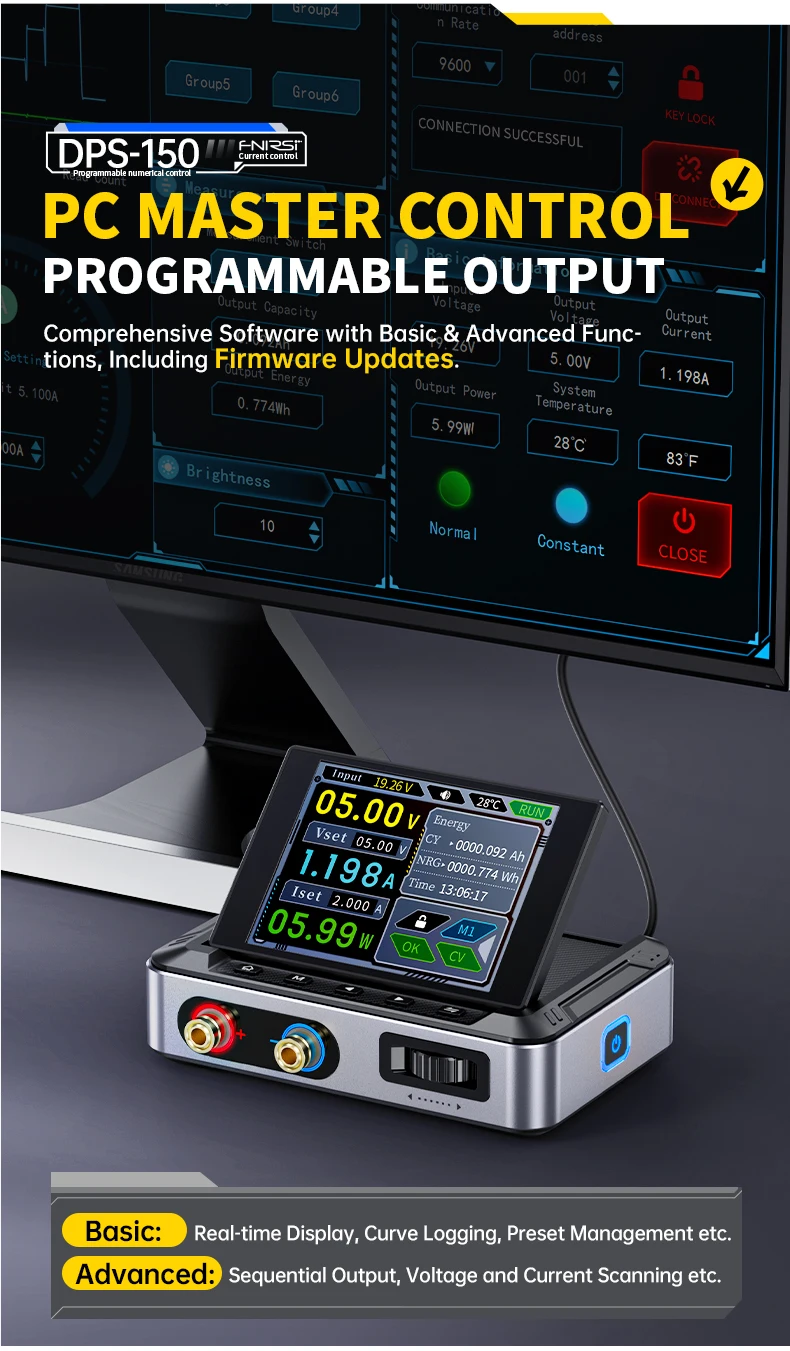

26. Upper computer software: support

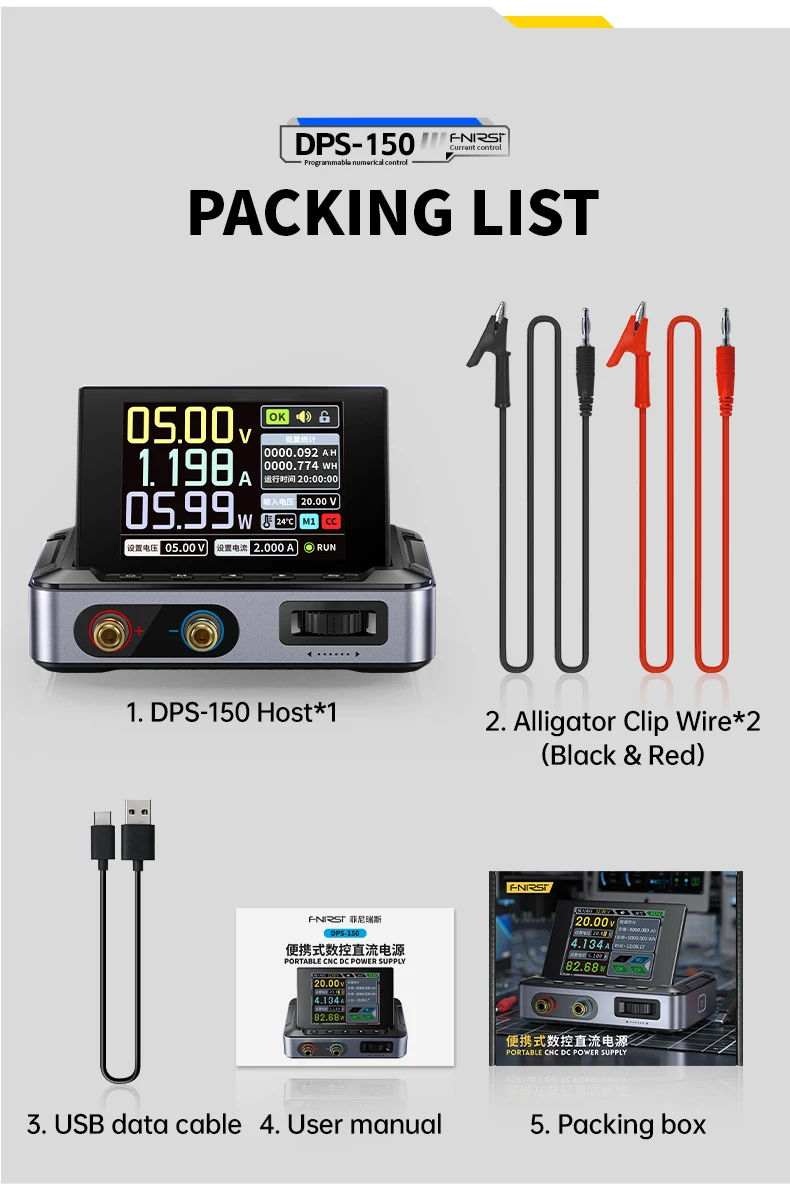

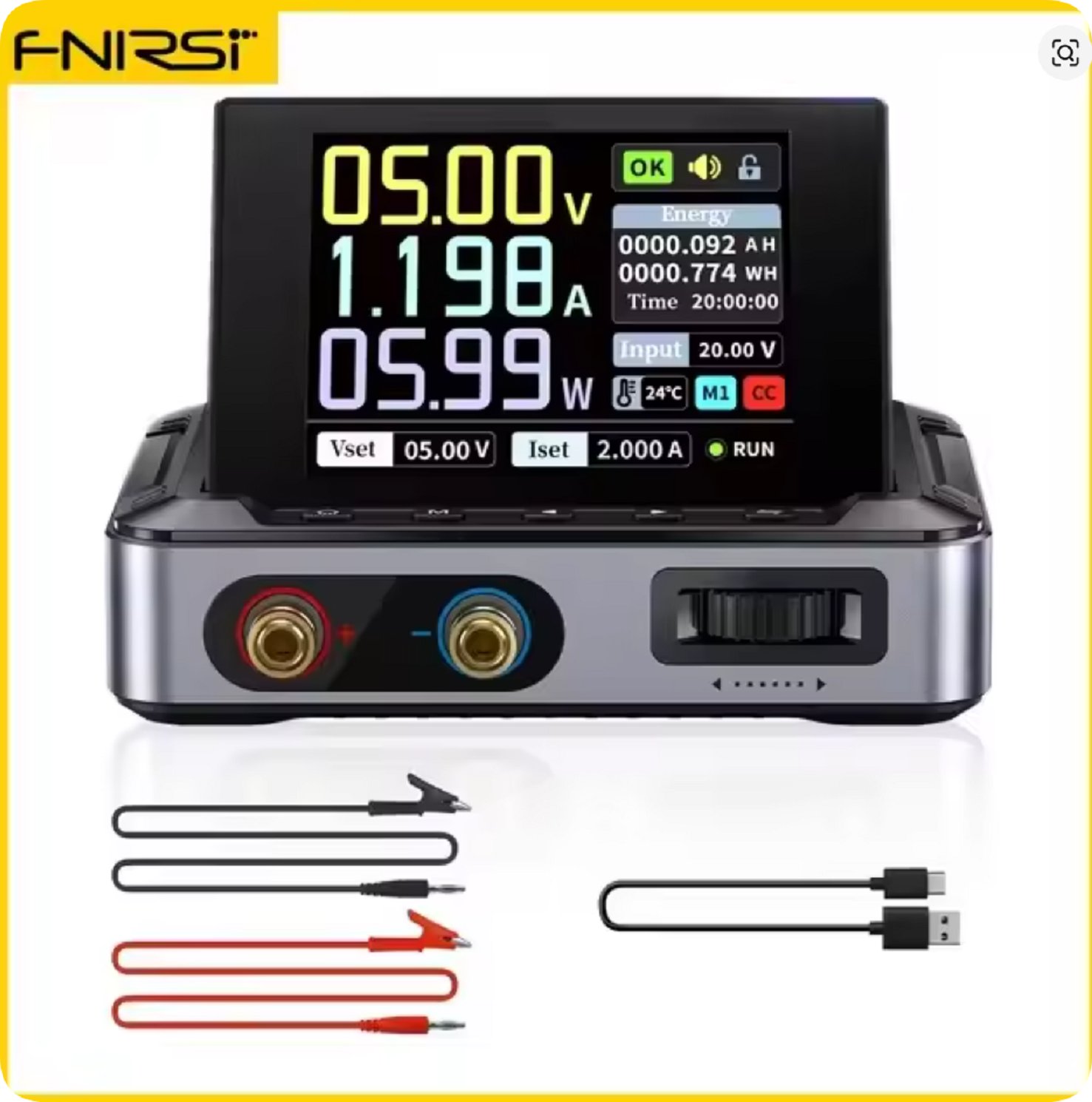

DPS-150 Standard
1. DPS-150 host*1
2. Alligator clip wire (Black & Red)*2
3. USB data cable*1
4. User manual*1
5. Packing box*1

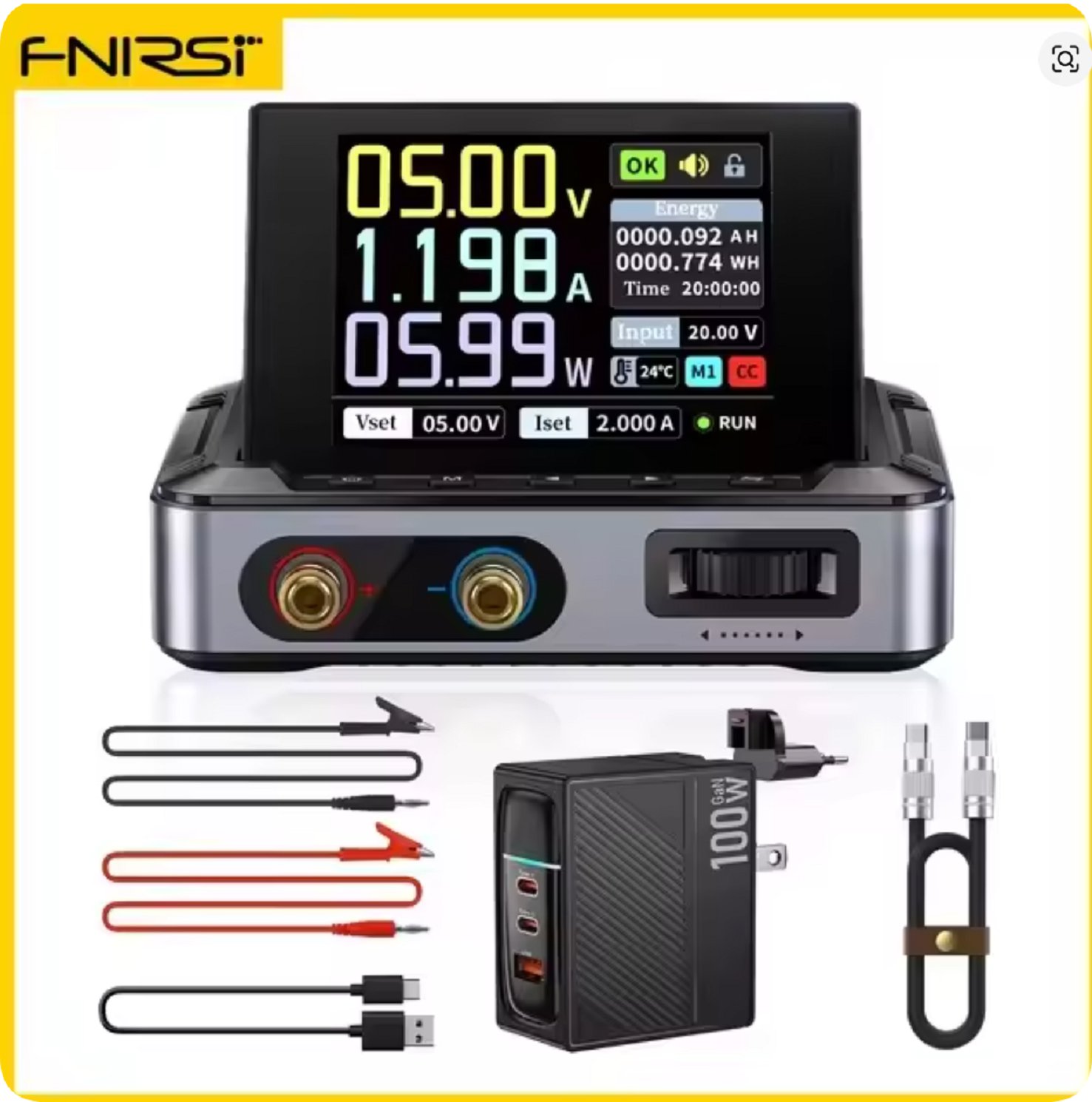

DPS-150 Optional
1. DPS-150 host*1
2. Alligator clip wire (Black & Red)*2
3. USB data cable*1
4. User manual*1
5. Packing box*1
6、100W PD GaN Fast Charger*1
7、C2C PD charging cable (1.2m)*1
