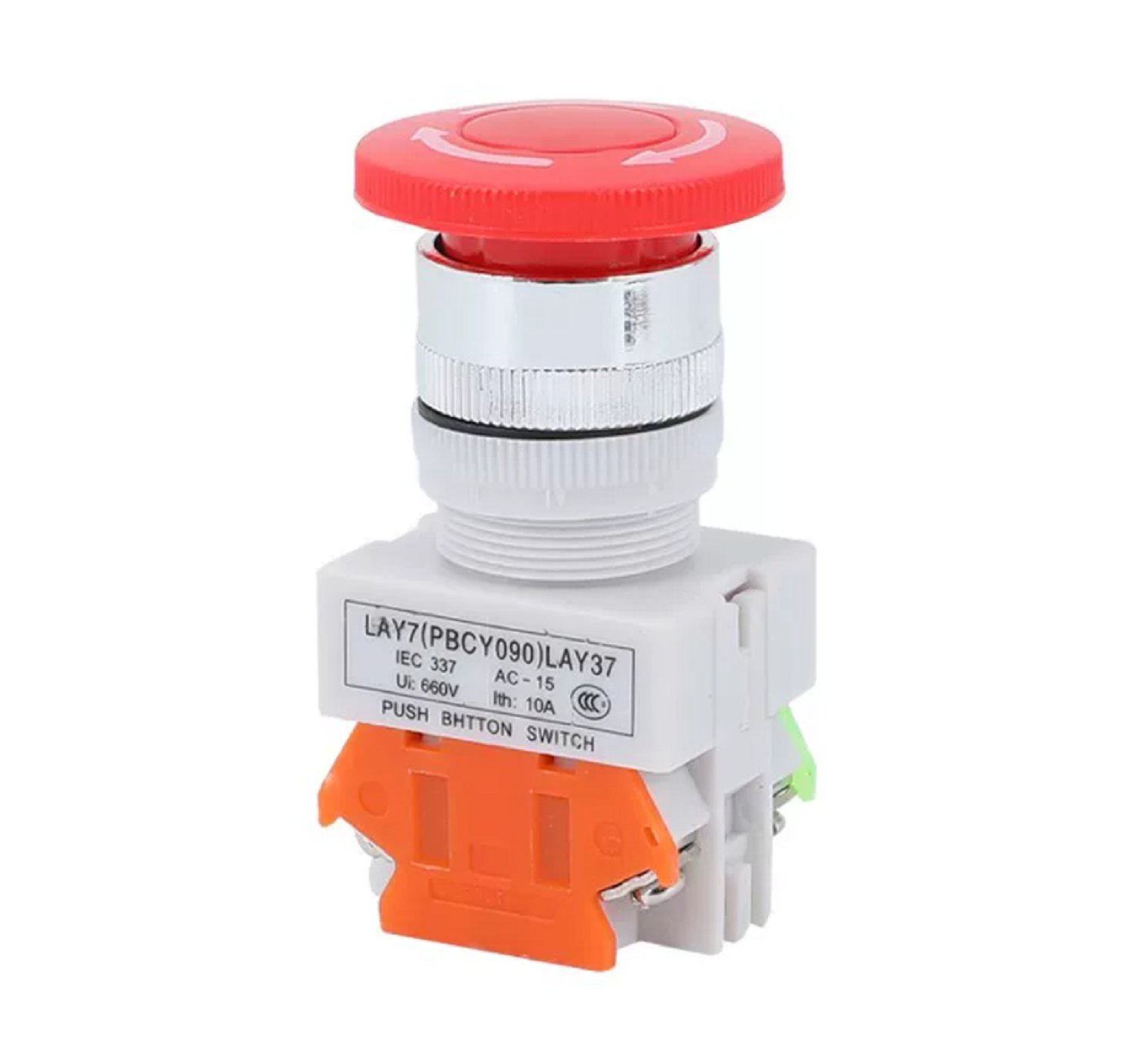

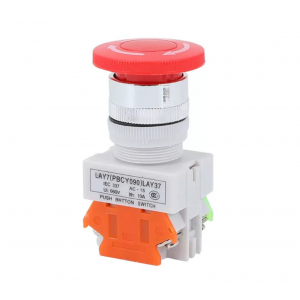

HS8683 LAY37-11ZS Stop Push Button Switch
Features:
This exigent stop push button switch features 1 normally open (NO) and 1 normally closed (N C) contact, with double-pole single-throw (DPST) configuration and latching action type, guarantee reliable circuit interruption for safety control.
Designed with a 40 mm (1.6-inch) red mushroom head for highly visible and quick operation, it includes a 22 mm (7/8-inch) mounting hole and adjustable panel thickness adaptation up to 6 mm (15/64 inch).
Constructed from high-quality plastic and metal materials, this lasting switch offers a long service life and withstands rigorous industrial use.
Compact dimensions of 60 x 70 mm (2.4 x 2.8 inches, max depth*height) allow for flexible installation in various control panels and machinery applications.
Rated for up to 660V UI and 10A ITH, it comes with 4 terminals for easy wiring, making it widely suitable for controlling magnetic starters, contactors, relays, and other automation control circuits.
Specification:
Part Name: Exigent Stop Push Button Switch
Model: LAY37-11ZS
Rated Voltage: Up to 660V
Rated Current: 10A
Contact Type: 1NC + 1NO
Opening Size: 22mm
Type: Self-locking (Retained)
Color: Red
Contact Material: Silver
Casing Material: High-temperature flame-retardant
Electrical Lifespan: 20,000 hours
Mechanical Lifespan: 3,000,000 hours
Ingress Protection: IP40
Size: 73*37*30mm
Package Content:
1*Exigent Stop Push Button Switch
