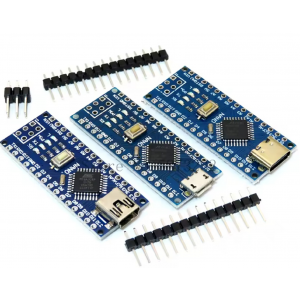

HR0072-1 Nano V3.0 ATmega328 CH340（No cable ）

HR0072-1 Nano V3.0 ATmega328 CH340（No cable ）

CH340G Replace FT232RL

Operating Voltage(logic level):5V

8 analog inputs ports:A0 ~ A7

14 Digital input / output ports:TX,RX,D2 ~ D13

6 PWM ports:D3, D5, D6, D9, D10, D11

1 pairs of TTL level serial transceiver ports RX / TX

Using Atmel Atmega328P-AU MCU

There is bootloader installed in it

Support USB download and Power

Support for external 5V ~ 12V DC power supply

Support power supply by 9V battery

CH340G Driver Download link : Driver for Windows 7

IDE of arduino Download link : http://arduino.cc/en/Main/Software
