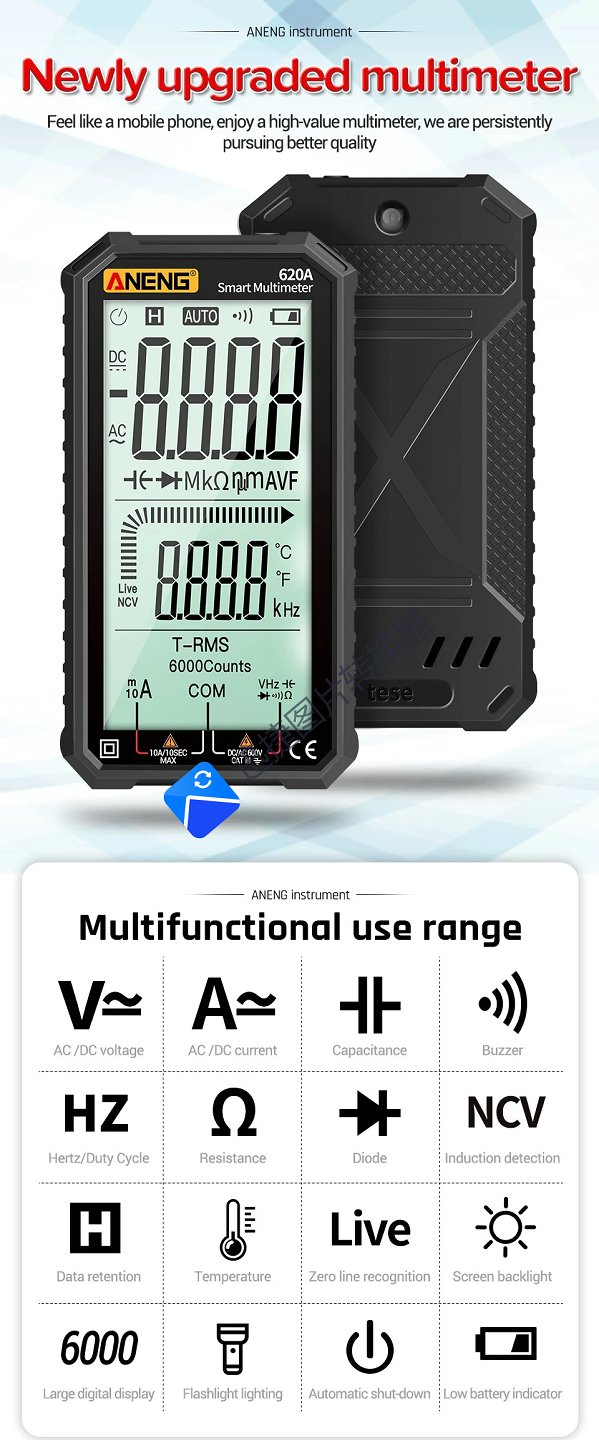

HS3399 ANENG 620A 4.7-inch Large LCD Screen Automatic + Manual Intelligent True RMS Digital Multimeter Resistance Diode Capacitance Temperature Frequency Test

Brand:	Haitronic
Product Code:	HS3399
Availability:	99999

Available Options

* Color:

Qty: - OR - Add to Wish List Add to Compare

0 reviews Write a review

Description Reviews (0)

HS3399 ANENG 620A 4.7-inch Large LCD Screen Automatic + Manual Intelligent True RMS Digital Multimeter Resistance Diode Capacitance Temperature Frequency Test

Features:

Manual + Atuo test

6000 counts digital display

True RMS

AC DC Voltage Measurement

AC DC Current Measurement

Continuity measurement

Resistance measurement

Diode test

Capacitance measurement

Temperature measurement

Frequency measurement

Specifications:

● Select measurement function and range automatically.

● Overload protection throughout the range.

● Max. voltage between measurement terminal and ground: 600V DC or 600V AC

● Display: 4.7-inch LCD

● Max. display value: 6000 digit.

● Polarity indication: Automatic indication, and ‘ - ’indicates negative.

● Over range display: ‘0L’ or ‘-0L’.

● Sampling time: About 3 times/second.,bargraph 10 times/second

● Unit display: Function and electricity quantity unit display.

● Automatic shutdown time: 15 minutes

● Power supply: 1.5V AAA battery × 2( not included)

● Battery under-voltage indication: LCD display symbol

● Temperature coefficient: Less than 0.1×accuracy/℃.

● Operating temperature: 18℃ ～ 28℃.

● Storage temperature: -10℃ ～ 50℃.

	Range	Resolution	Accuracy
AC current	6000mA	1mA	± (1.0% reading + 8 digits)
AC current	10 A	0.01 A	± (1.0% reading + 8 digits)
DC current	6000mA	1mA	± (1.0% reading +5digits)
DC current	10 A	1mA	± (1.0% reading +5digits)
DC voltage	6V	0.001V	± (0.5% reading + 3 digits)
	60V	0.01V
	600V	0.1V
AC voltage	6V	0.001V	±(0.8% reading + 5 digits)
	60V	0.01V
	600V	0.1V
Line on-off test		1Ω	If resistance of the line
			being measured is less than
			50Ω, buzzer in instrument
			will make continuous
			alarming sounds.
Resistance	6000	0.1Ω	± (0.8% reading + 3 digits)
	6kΩ	0.001kΩ
	60kΩ	0.01kΩ
	600kΩ	0.1kΩ
	6MΩ	0.001MΩ
	60MΩ	0.01MΩ
Diode test	1 V	0.001V	Testing current ：about 1mA
			Open circuit voltage :about 2.8V
			The display shows an
			approximation of the diode
			forward pressure drop

Temperature	-40~1000 °C	1°C	± (1% reading +3°C)
Temperature	-40-1832 °F	1°F	± (1% reading +3℉)
Frequency	100.0 Hz	0.1Hz	土（ 1.0%reading+ 5digits)
Frequency	1000Hz	1Hz	土（ 1.0%reading+ 5digits)
Capacitor	6nF	0.001nF	士( 10%reading + 40 digits)
	600nF	0.1nF	±( 2.5%reading+ 20 digits)
	6uF	0.001 uF
	60uF	0.01 uF
	600uF	0.1uF
	6mF	1 uF
	60mF	0.01mF
