| Brand: | Haitronic |
| Product Code: | HS7026 |
| Availability: | 99999 |

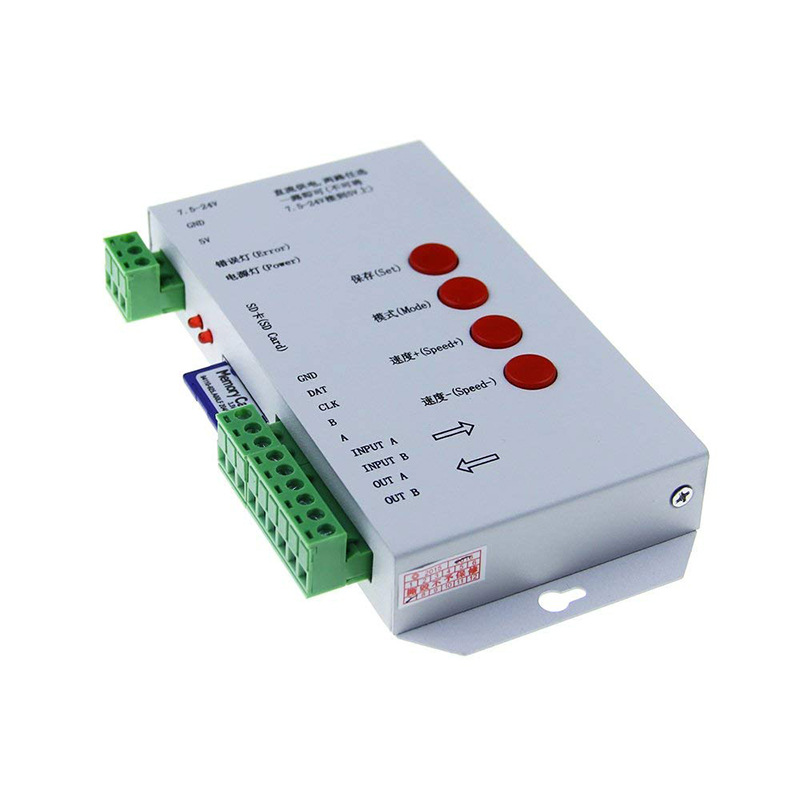

HS7026 T-1000S Pixel LED Controller DC5-24V
Description:
Memory card:
type:SD card
Capacity:128MB-2GB
Store file:*.led
Physical parameters:
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Working power:2W
Weight:0.3kg
Size:L165mm×W80mm×H30mm
Signal port:3pin connect port
T-1000S System features
1.32-65536 Gray,Support software Gamma correction.
2.Support point, line, surface, rules and special-shaped handle.
3.Single-port output,can support 2048 pixels.
4.Multiple controllers can be cascaded together and work synchronous,
play back content stored in the SD card.
5.Compatible with single line or double line chips.
NOTE:
When T1000S controller load less than 512 pixels the frame rate can reach 30fps.
When T-1000s control more than 512 pixels the frame rate will slow down automatically.
