| Brand: | Haitronic |
| Product Code: | HS7128 |
| Availability: | 99999 |

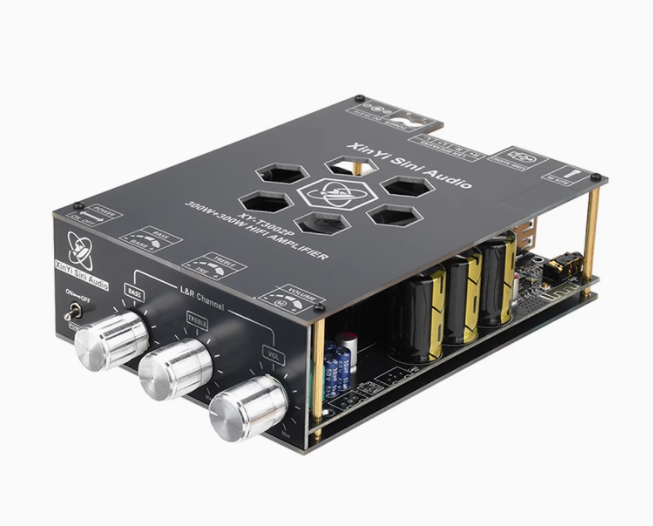

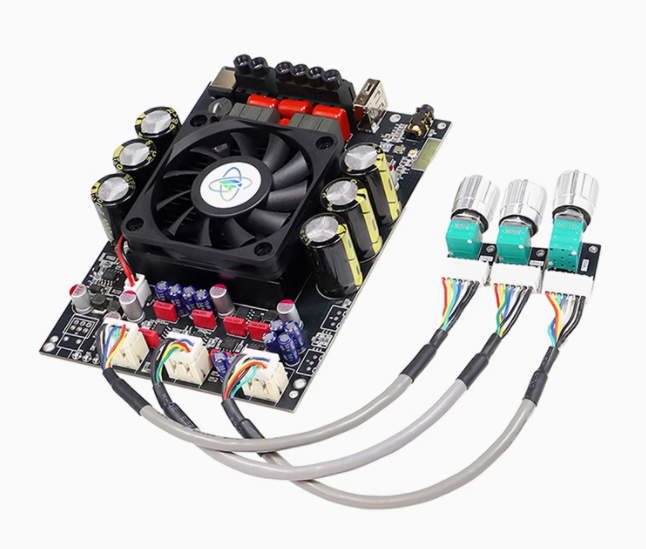

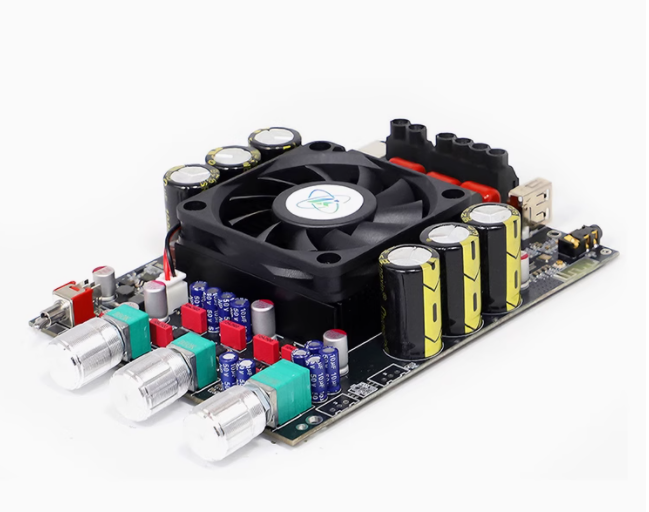

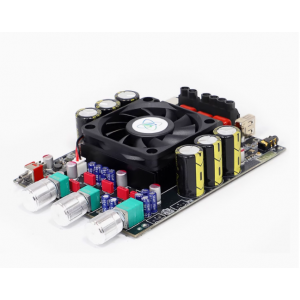

HS7128 300W*2 Bluetooth digital amplifier module XY-T3002P upgraded version high and low frequency adjustment TPA3255 support APP
Features:
1. High performance TPA3255 chip: using the high-end TPA3255 chip, supporting lossless component sound quality, providing a clearer and more delicate audio experience.
2. Multi functional volume knob: Integrated with multiple operation functions, click pause/play, double-click next track, triple tap previous track, quadruple tap switch mode, long press power on/off, easy and efficient operation.
3. High power output design: Supports up to 300W+300W output power, adapts to different voltage requirements, meets multiple scene applications, and has stunning sound effects.
4. Multiple audio input methods: Supports multiple input methods such as BT 5.2, AUX, USB flash drive, USB sound card, etc., compatible with lossless formats such as WAV, FLAC, APE, etc., meeting diverse audio source needs.
5. High quality component selection: Equipped with digital amplifier specific low loss inductors, large capacity black gold capacitors, and metal film capacitors to ensure stable and efficient audio performance, resulting in purer sound quality.
Parameter:
Product Name: BT Digital Audio Amplifier Board
Product model: T3002P
Power supply: DC19-51V/10A or above
BT version: 5.2
Audio input: BT/AUX/U disk/USB sound card
BT audio decoding: AAC SBC
USB lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
30W+30W @8Ω/24VDC
70W+70W @4Ω/24VDC
80W+80W @8Ω/36VDC
160W+ 160W@4 Ω/36VDC
160W+ 160W@8 Ω/50VDC
300W+ 300W@4 Ω/50VDC
Package Include:
1X power amplifier board
1X screwdriver
