| Brand: | Haitronic |
| Product Code: | HS7188 |
| Availability: | 99999 |

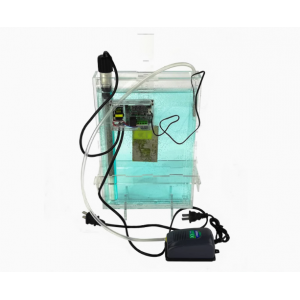

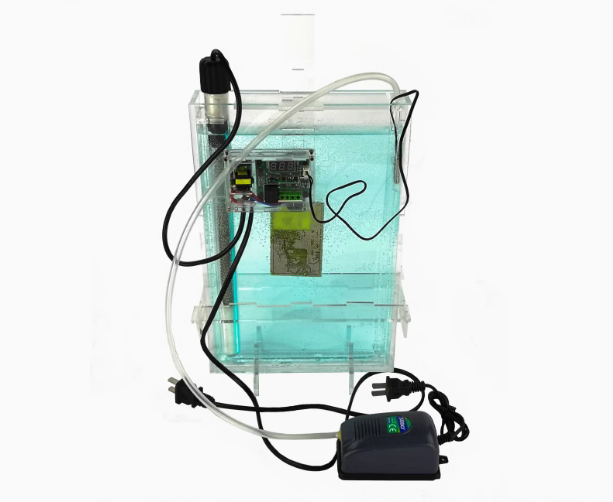

HS7188 PCB manufacturing etching machine HK2030 PCB metal etching machine 220V circuit board production equipment
HK2030 PCB Circuit Board Making Etching Machine DIY Metal Corrosion Etcher 220V Circuit board production equipment
Specification:
Model: HK2030
Product name: PCB circuit board production metal etching machine
Rated power: 300W
Input voltage: AC 220V
Internal size: 15x25CM
Product size: 20x30CM
Heating: Quartz explosion-proof heating rod
Control: Digital temperature control
Bubble part: Conical 4 rows of bubbles
Packing weight: 2KG
notes:
The temperature inside the etching machine should not exceed 60°C, so as not to damage the machine and reduce the corrosion rate. The solution must cover the temperature probe and the heater wire portion of the heater.
We have adjusted the heating rod in advance, the upper limit is set to 55°C, the set temperature is 45°C, and it can be used directly after plugging in the power supply.
