| Brand: | Haitronic |
| Product Code: | HS7201 |
| Availability: | 1 |

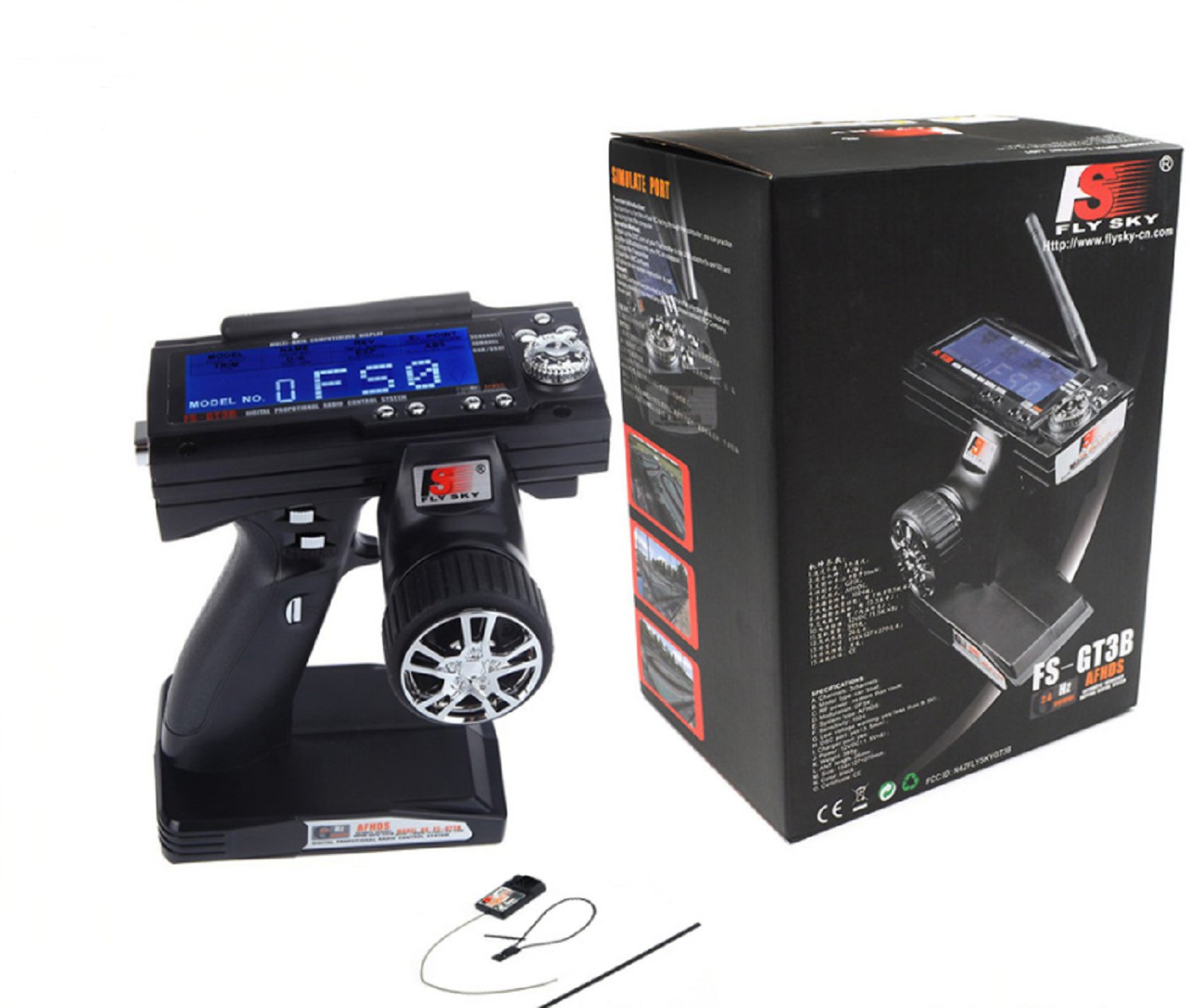

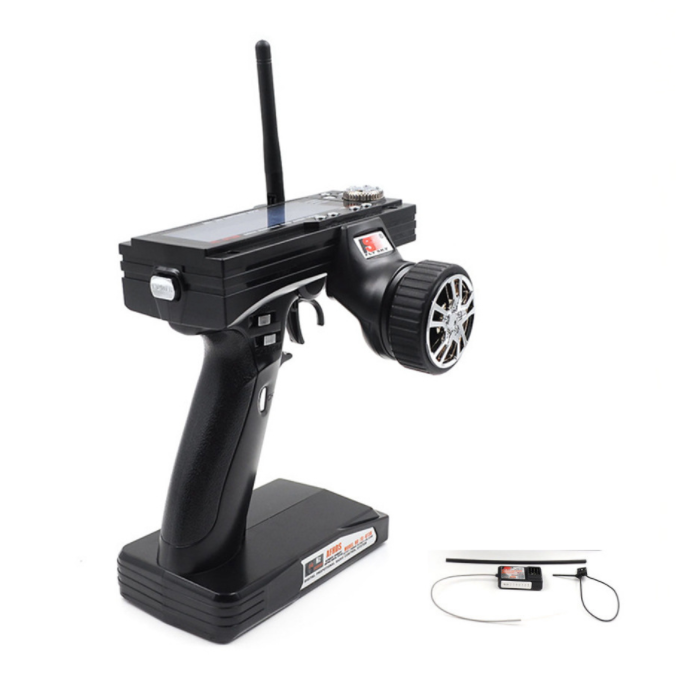

HS7201 FlySky GT3B FS-GT3B 2.4G 3CH transmitter RC System Gun Controller with FS GR3E Receiver For RC Car Boat with LED Screen
3CH remote control for RC cars and boats.
Works between 2.400GHz to 2.4835GHz frequencies, divided into 160 wave bands.
It covers the entire band width of the antenna bandwidth range.
Adopts AFHDS (Automatic Frequency Hopping Digital System).
High receiving sensitivity.
Super active and passive anti-jamming capabilities.
Very low power consumption, and stable performance.
LCD screen display.
Specifications:
|
Transmitter: |
|
|
Channels: |
3 |
|
Mode type: |
car / boat |
|
RF range: |
2.4-2.48GHz |
|
Band width: |
500KHz |
|
Band: |
160 |
|
RF power: |
less than 20dBm |
|
2.4G system: |
AFHDS |
|
Code type: |
GFSK |
|
Sensitivity: |
1024 |
|
Low voltage warning: |
yes (less than 9V) |
|
DSC port: |
3.5mm (output: PPM) |
|
ST range: |
90 degrees (L: 45, R: 45) |
|
TH range: |
45 degrees (F: 30, B: 15) |
|
Charger port: |
yes |
|
Power: |
12V |
|
Powered by: |
8 * 1.5V AA batteries (not included) |
|
Display: |
LCD screen |
|
Weight: |
395g / 13.9oz |
|
ANT length: |
2.6cm / 1in |
|
Size: |
approx. 15.5 * 12.5 * 18.5cm / 6.1 * 4.9 * 7.2in |
|
Receiver: |
|
|
Channels: |
3 |
|
Model type: |
car / boat |
|
Frequency: |
2.4-2.48GHz |
|
Band width: |
500KHz |
|
Band: |
160 |
|
2.4G system; |
AFHDS |
|
Code type: |
GFSK |
|
Sensitivity: |
1024 |
|
RF receiving sensitivity: |
-105dBm |
|
Power: |
4.0-6.5V DC |
|
Weight: |
5g / 0.1oz |
|
ANT length: |
2.6cm / 1in |
|
Size: |
3.5 * 2.2 * 1.2cm / 1.3 * 0.8 * 0.4in |
|
Color: |
black |
|
Certificate: |
CE, FCC |
|
Package size: |
25.7 * 18.8 * 14cm / 10.1 * 7.4 * 5.5in |
|
Package weight: |
602g / 1.3lb |
Packing list:
1 * Transmitter
1 * Receiver
1 * Antenna tube
1 * Code matching line
