| Brand: | Haitronic |
| Product Code: | HS7229 |
| Availability: | 99999 |

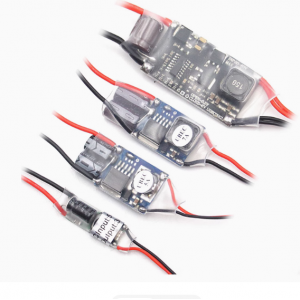

HS7229 5V 3A 5A 7A 15A External UBEC Voltage Regulator Anti-interference Support 2S-12S Receiver Power Supply for RC
Features:
1. LED LED working status indicator light, when the output is normal.
2. Small size, light weight, electronic devices are protected by shielding cover.
3. There is a protection function to prevent the polarity of the power supply from being reversed. If the power supply is accidentally reversed, it will not cause damage to the UBEC.
4. Adopts switching power supply structure design, switching power supply main control chip frequency is 300KHz, and has over-current and over-temperature protection function, chip efficiency is as high as 92%.
5. Advantages compared with the traditional BEC: Compared with the BEC using the switching power supply mode and the BEC using the linear voltage regulator, the advantages are mainly reflected in that the BEC heating can be greatly reduced when more than 3 series (11.1V) batteries are used, and the overall efficiency can be improved (for example, when 4 series of lithium batteries are used, the voltage during normal use is about 14.8V).
Description:
UBEC is an external DC voltage stabilization device that can operate in a switched and regulated power supply mode. The UBEC can obtain DC voltages suitable for receivers and other devices of 2-12 lithium battery packs. It uses a double-parallel output that can carry large currents and steadily deliver output currents up to 15A. The UBEC can easily power a wide range of devices on remote control models and is particularly suitable for large helicopters and large fixed-wing aircraft using multiple steers.
Specifications:
UBEC-3A
Operating voltage: lipo 2S-5S
Continuous current: 3A
Instantaneous current: MIN 4A 20 seconds
Output voltage: 5.25V +/-0.5V
UBEC-5A
Operating voltage: 5.5V-35V lipo 2S-7S
Continuous current: 5A
Instantaneous current: MIN 6A 10 seconds
Output voltage: 5.25V +/-0.5V
UBEC-7A
Operating voltage: 5.5V-35V lipo 2S-7S
Continuous current: 7A
Instantaneous current: MIN 7.5A 40 seconds
Output voltage: 5.25V +/-0.5V
UBEC-15A
Operating voltage: 3S-12S (23V-45V)
Continuous current: 15A
Instantaneous current: MIN 28A 10 seconds
Output voltage: 5.25V +/-0.5V
Shipping list:
Module X1
