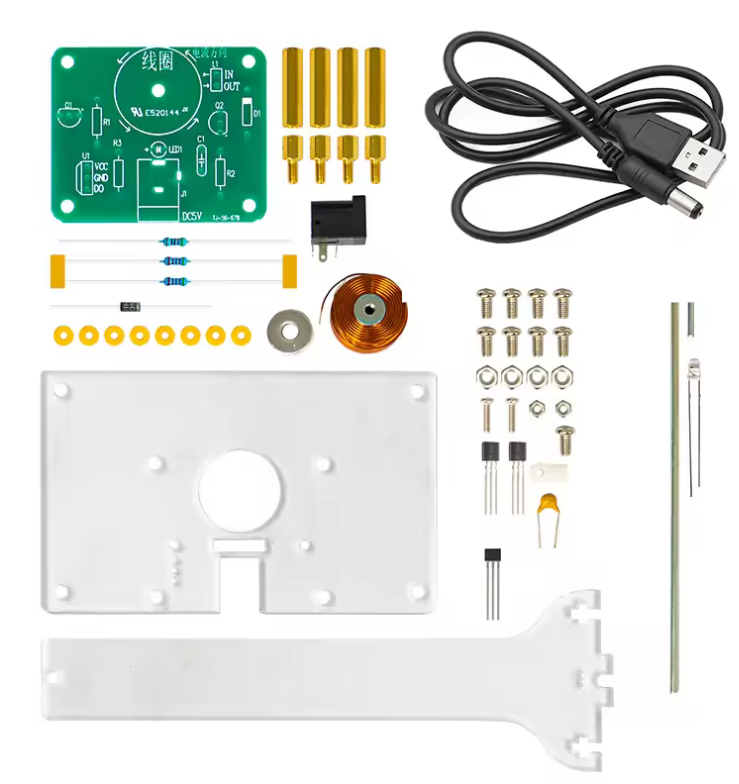

HS7231 DIY Electromagnetic Swing Induction Kit PCB Teaching Training Oscillator Welding Production Kit

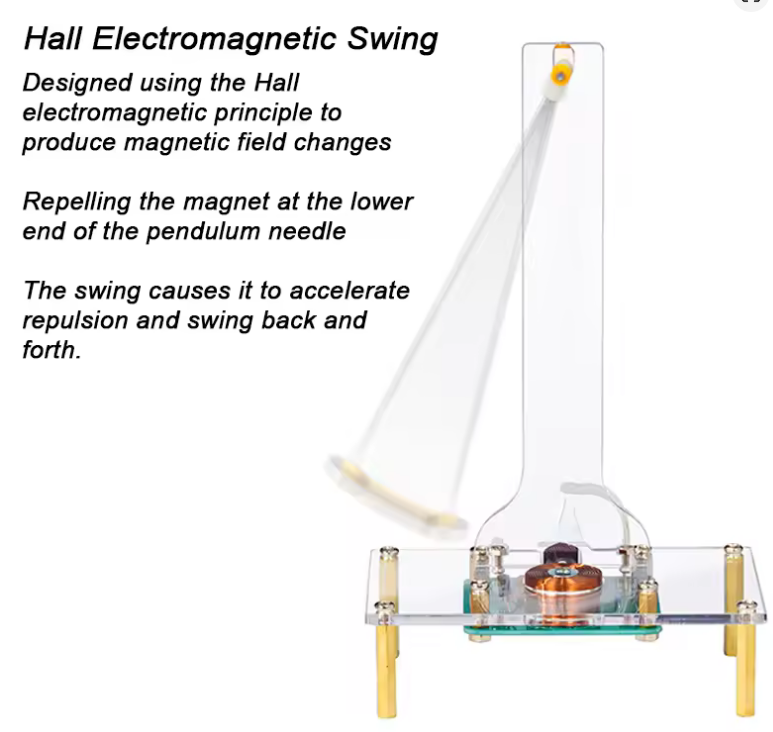

Hall sensor is a magnetic field sensor based on the Hall effect. When the magnet is above the Hall sensor, the Hall sensor detects the magnetic field and will output a low level. Transistor Q1 will no longer conduct, and transistor Q2 will conduct. During the conduction process, current flows through inductor L1. A magnetic field will be generated in L1. The direction of the magnetic field is determined by the direction of current flow in the coil. Following the right-hand spiral rule, when the magnetic field of the coil and the magnetic field of the magnet repel each other, the magnet will be pushed away. After the magnet is pushed away, The Hall sensor will no longer detect the magnetic field, it will output a high level, Q2 will no longer conduct, and the remaining potential on L1 will dissipate through D1. From this point on, the electronic autumn stem will keep swinging.
