| Brand: | Haitronic |
| Product Code: | HS7328 |
| Availability: | 99999 |

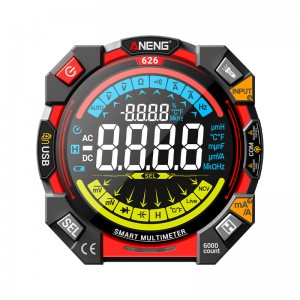

HS7328 ANENG 626 Digital Multitester Rechargable
ANENG 626
Multitester 600V Voltage Test 6000 Counts Multimeter Portable Current Ohmmer Meter Rechargable USB Detector Tools
Technical indicators:
The instrument should be specified as a one-year cycle and recalibrated at 18°C to 28°C with a relative humidity of less than 75%.
Comprehensive indicators:
1) Automatically select the measurement function and range.
2) Full range overload protection.
3) The maximum allowable voltage between the measuring terminal and the earth: 1000V DC or 600V AC
4) Working height: up to 2000m
5) Display: VA
6) Maximum display value: 6000 numbers.
7) Polarity indication: automatic indication, "-" indicates negative polarity.
8) Overrange display: '0L' or '-0L'.
9) Sampling time: about 3 times/second
10) Unit display: with function, power unit display
11) Automatic shutdown time: 15 minutes
12) Power supply: 1000mA lithium battery
13)Temperature coefficient: less than 0.1X accuracy/ ℃
14) Working temperature: 0°C~40 °C
15) Storage temperature: -20°C~60°C
Specifications:
|
626 Information |
|||
|
Function |
Range |
Resolution |
Accuracy |
|
DC voltage |
0.3mV～600V |
0.01mV～0.1V |
±(0.6%+5) |
|
AC voltage |
3mV～600V |
0.01mV～0.1V |
±(0.8%+5) |
|
DC current |
3mA～10A |
0.1mA～0.01A |
±(1.0%+8) |
|
AC current |
3mA～10A |
0.1mA～0.01A |
±(1.0%+8) |
|
Resistance |
0Ω～60MΩ |
0.1Ω～0.01MΩ |
±(0.8%+5) |
|
Capacitor |
0nF～20mF |
0.001nF～0.01mF |
±(2.5%+20) |
|
Hz hertz |
10Hz～7MHz |
0.01Hz～0.01MHz |
±(0.2%+5) |
|
% Duty cycle |
10%～90% |
0.1 |
±(2.6%+7) |
|
Temperature |
-40°C~1000°C |
1°C |
±(1.0%+3) |
|
-40°F~1832°F |
1°F |
||
|
Naught Fire Wire |
√ |
Flashlight lighting |
√ |
|
NCV voltage induction |
√ |
USB lithium |
√ |
|
On/Off |
√ |
Battery type |
3.7V 1000mA lithium battery |
|
Diode |
|
|
|
