| Brand: | Haitronic |
| Product Code: | HS7329 |
| Availability: | 999999 |

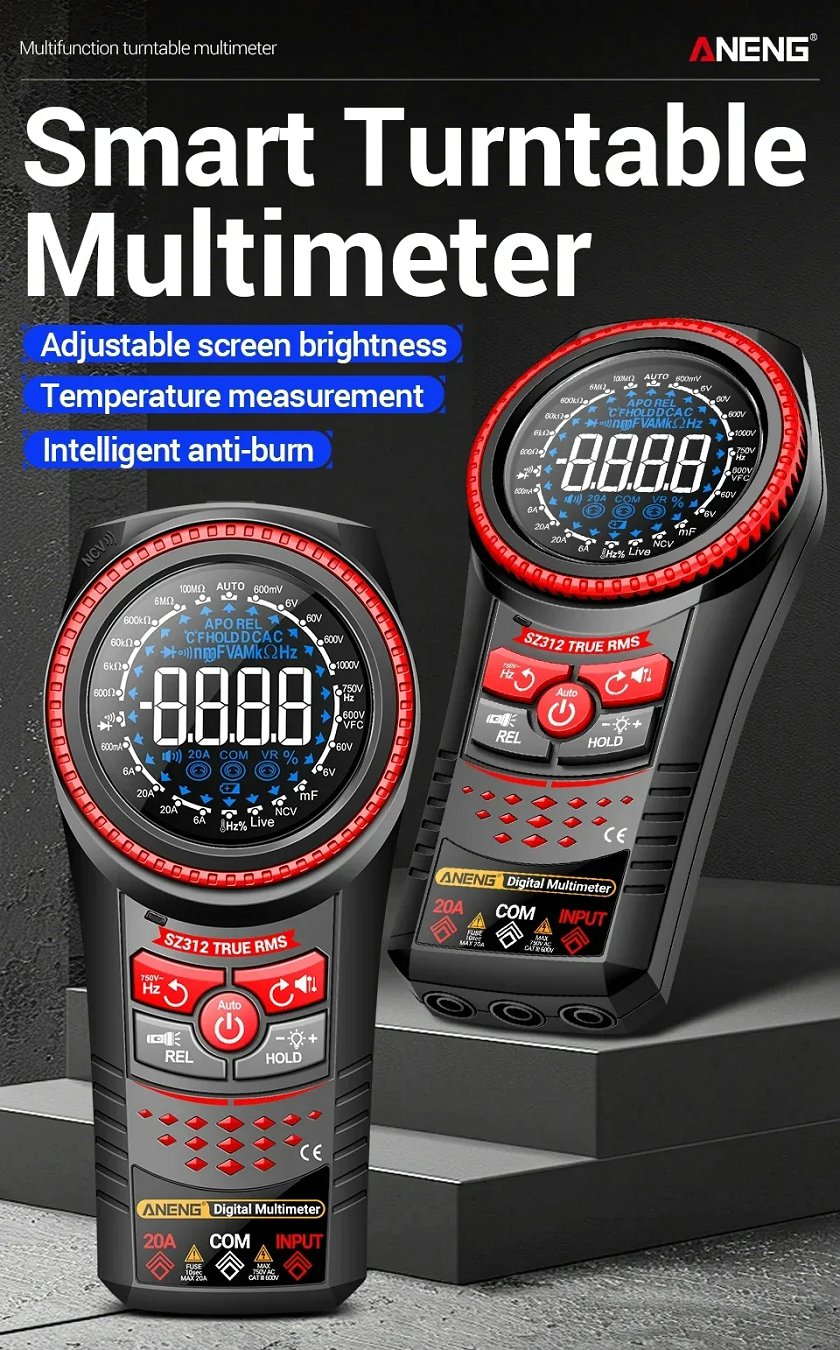

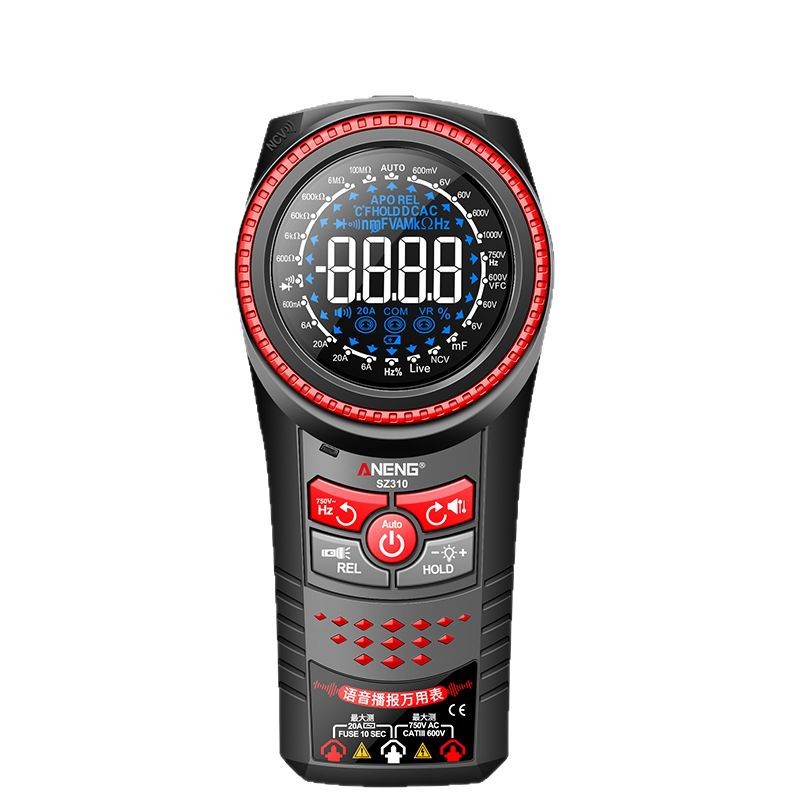

HS7329 ANENG SZ312 Multimeter 20A AC/DC Current Tester 6000 Counts 60mF Meter Capacitor Test VA Reverse Repair Tools
ANENG SZ312
Multimeter 20A AC/DC Current Tester 6000 Counts 60mF Meter Capacitor Test VA Reverse Repair Tools
Overview:

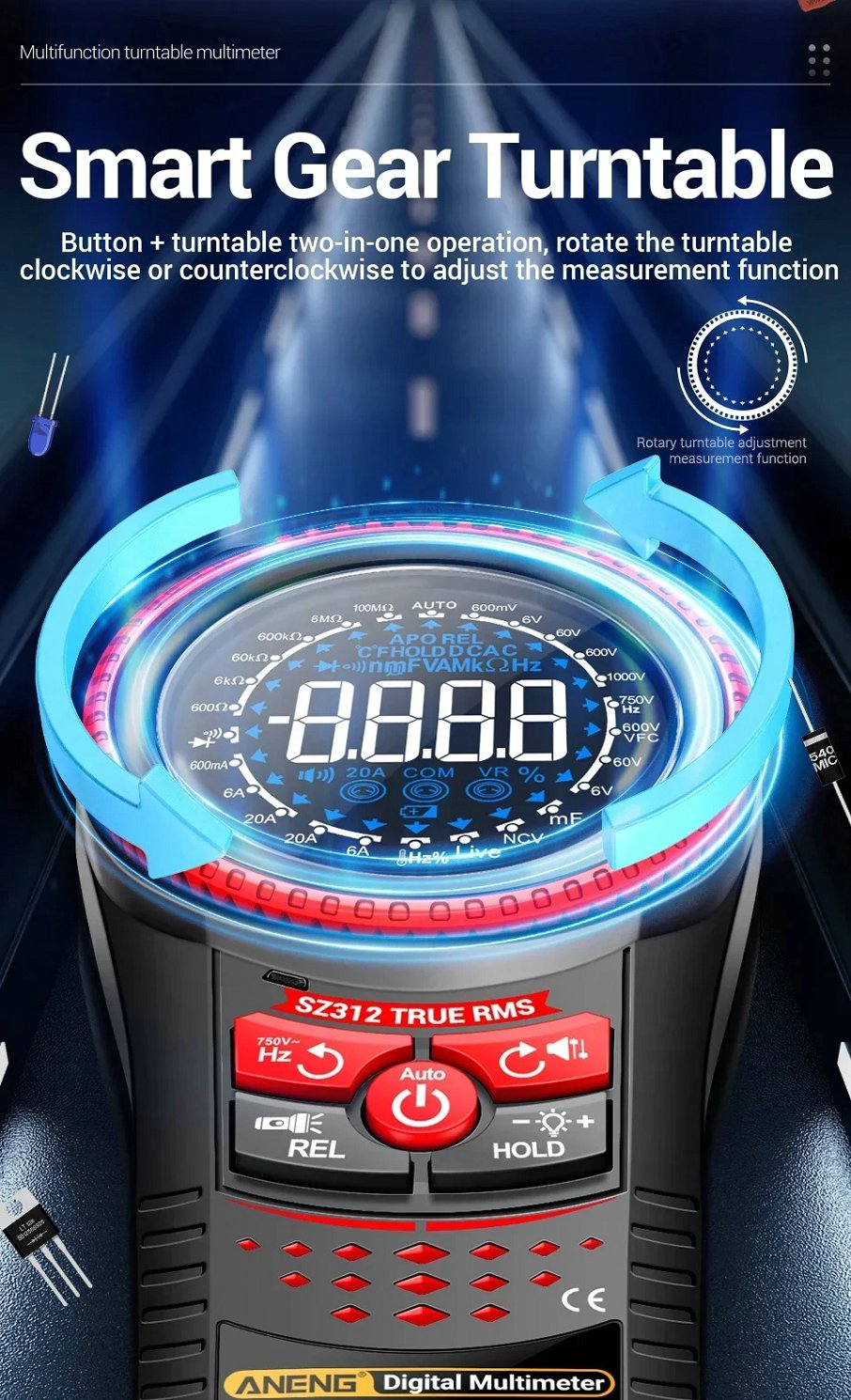

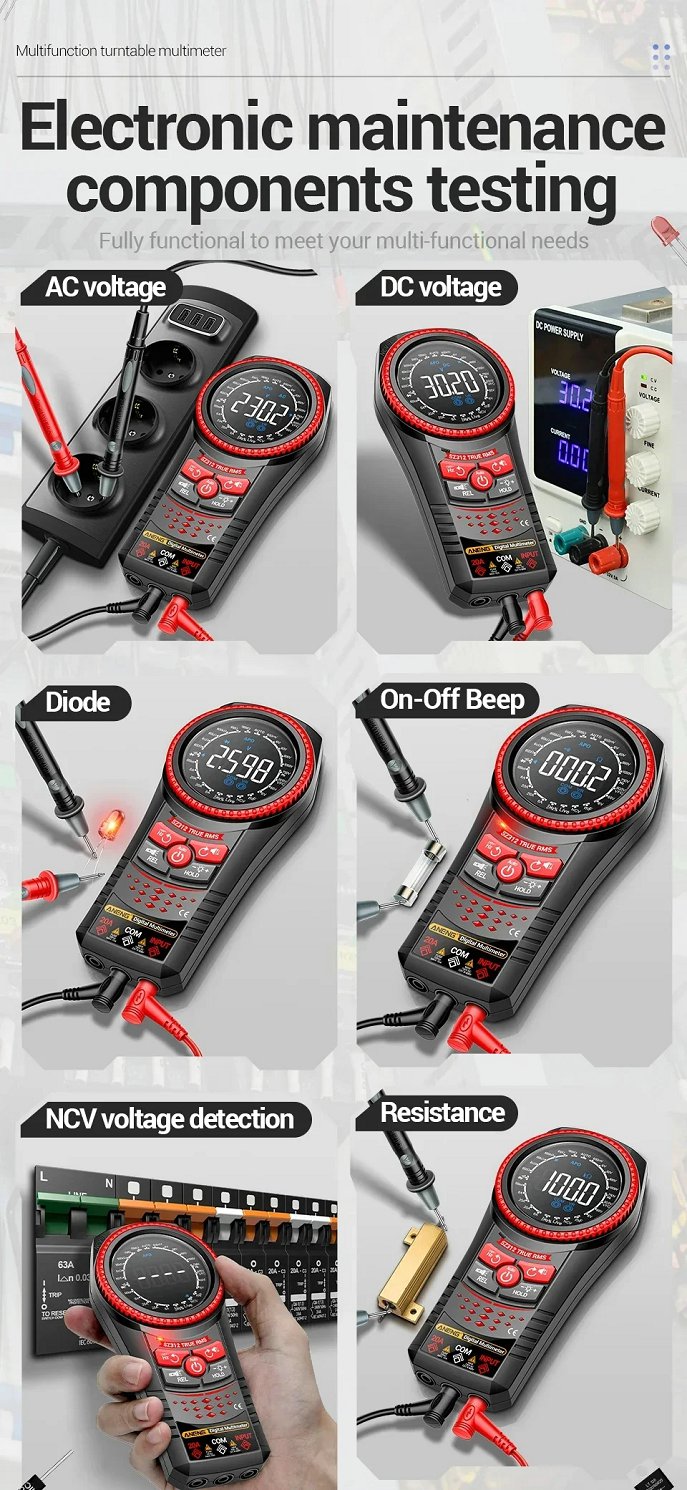

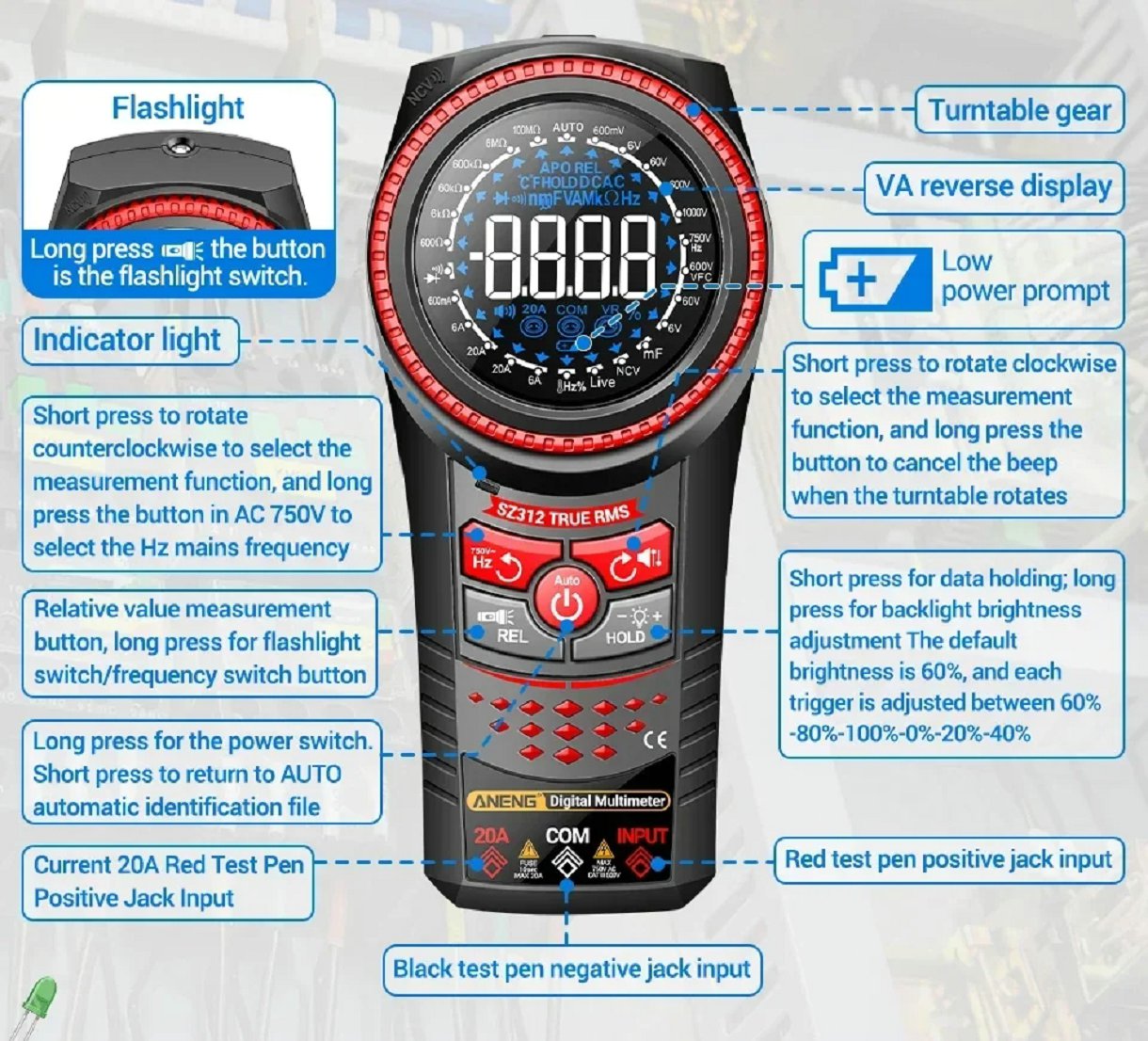

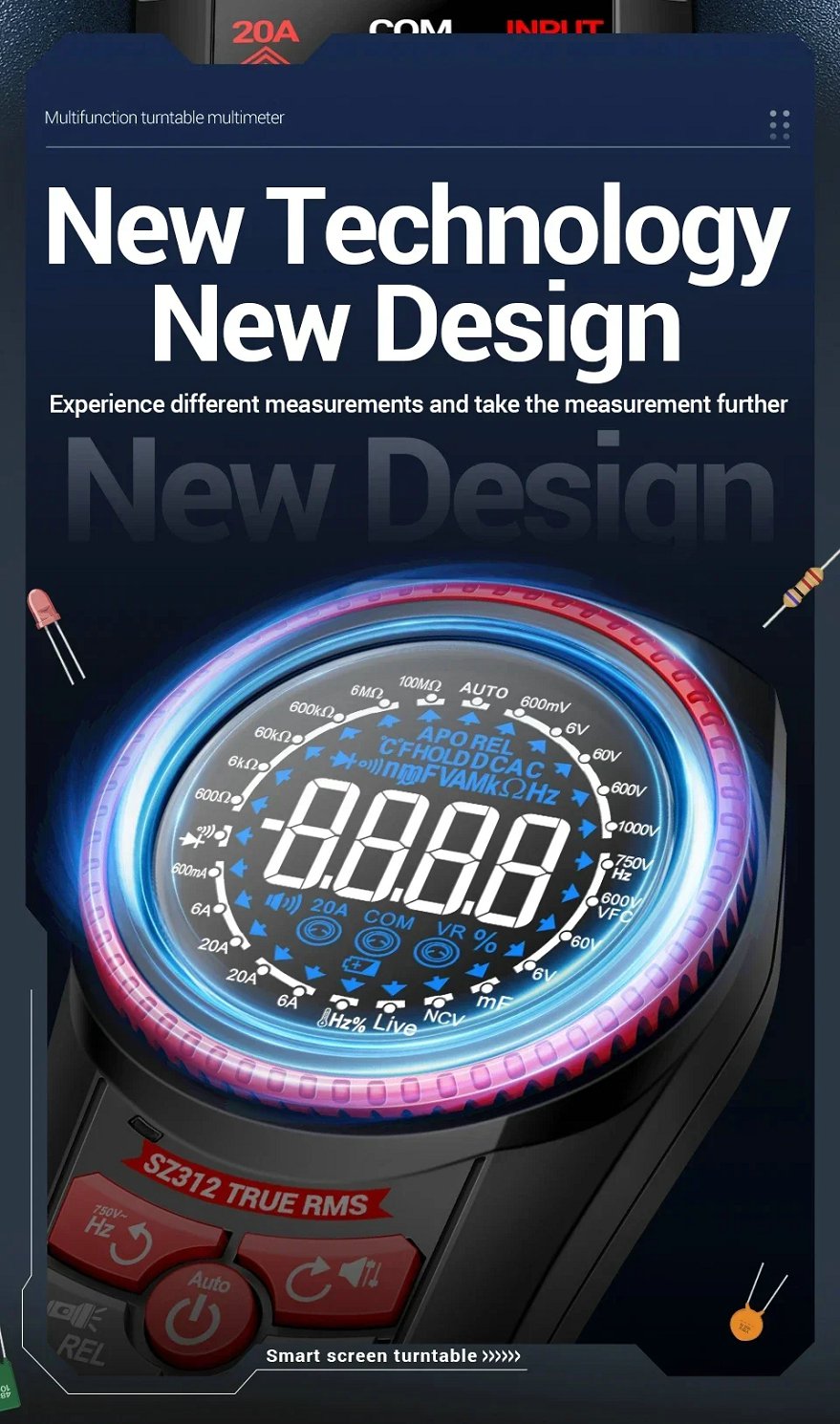

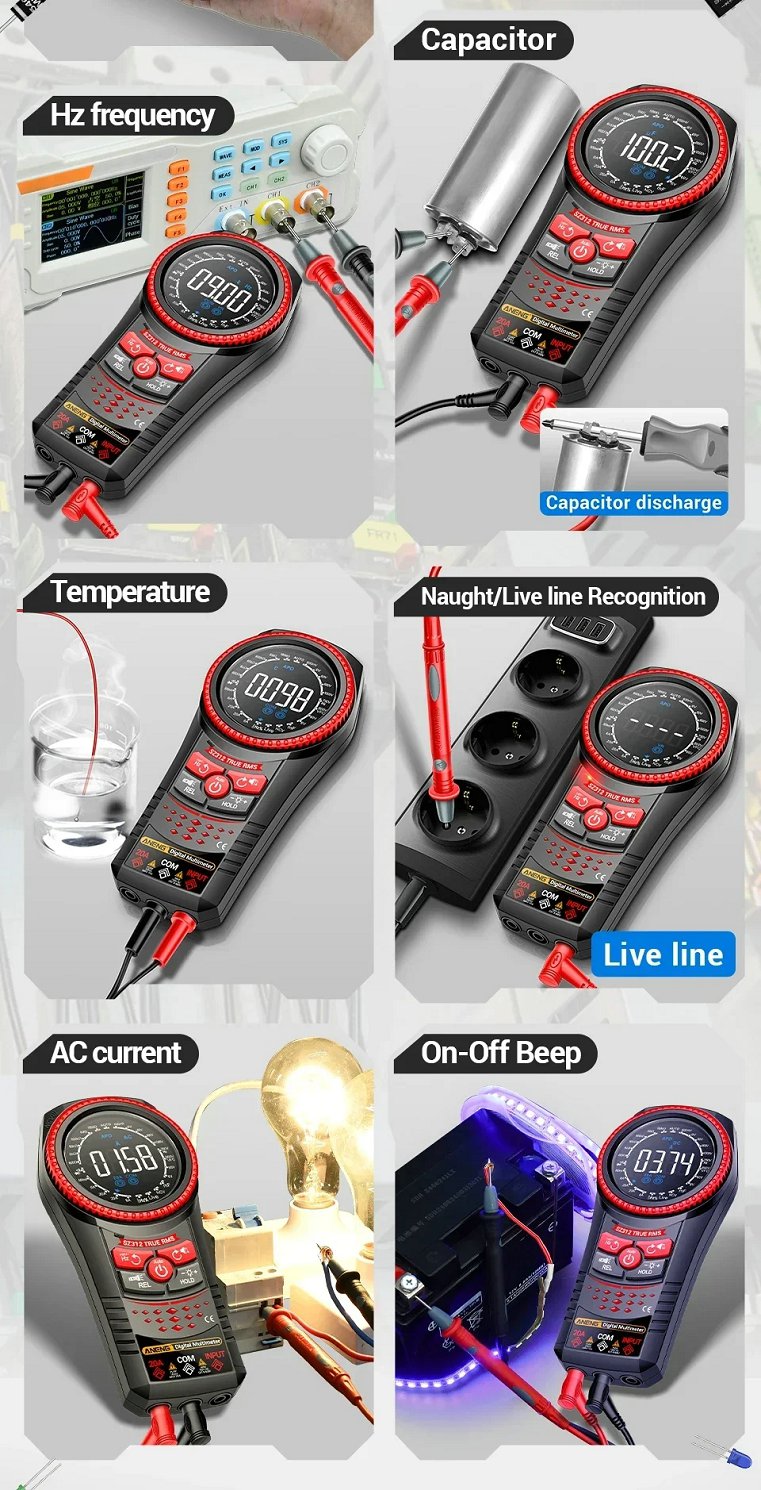

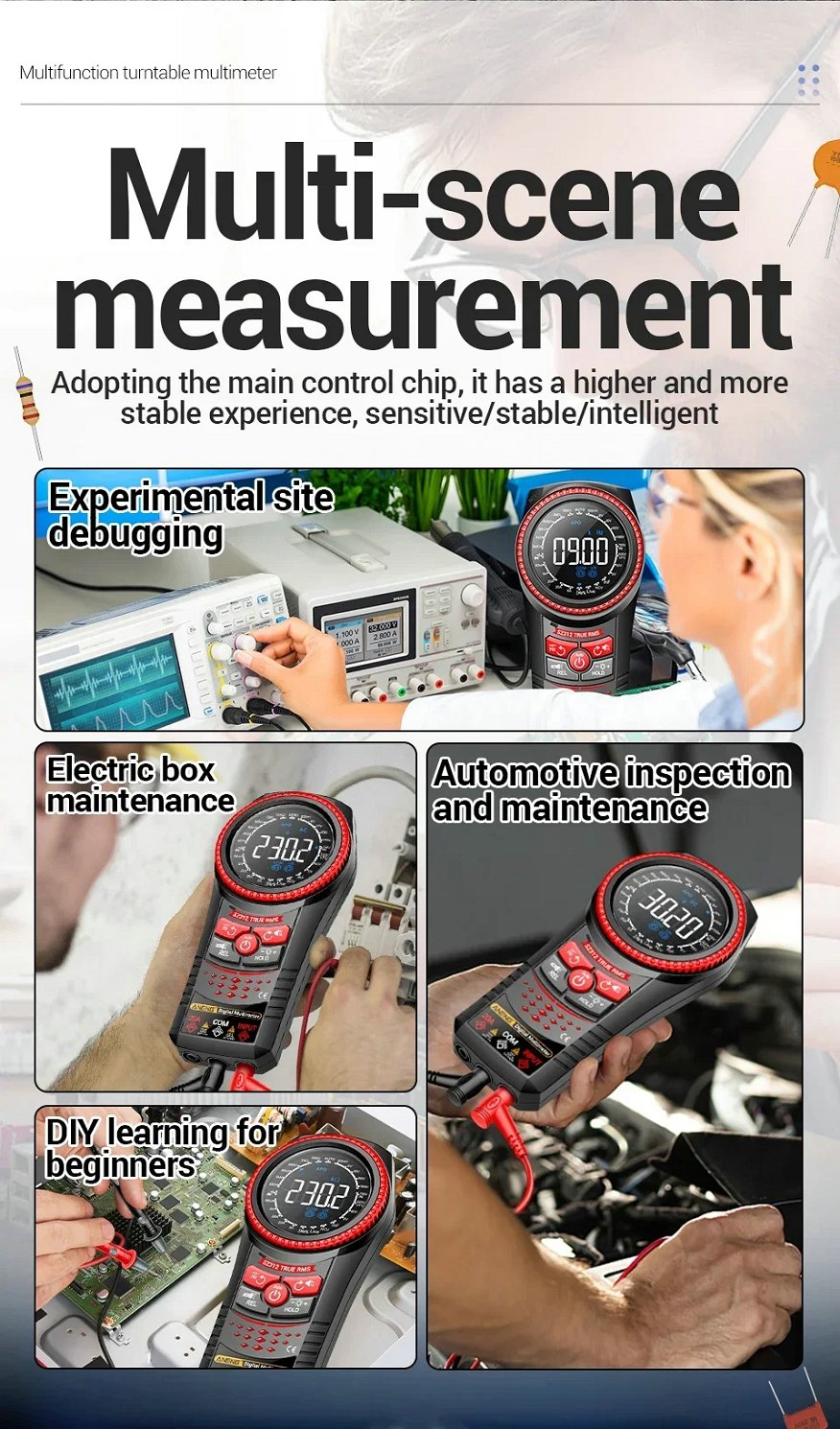

This series of instruments is a high-performance, battery driven ultra-high brightness color screen digital multimeter that uses full unit symbols and a LCD dial; Clear reading; Backlight adjustable, display and overload protection function, replacing traditional turntable with LCD, using rotary encoder to easily adjust various measurement functions. This series of instruments can be used to measure DC voltage and AC true RMS, DC current and AC current, resistance, capacitance, frequency, automatic identification testing of diode/on-off, frequency conversion measurement, and high-voltage diode output measurement. Compared to traditional diode measurement, it provides a 1V higher voltage, making it more convenient for maintenance personnel to measure various LEDs. The whole machine uses dual integration A/D conversion as the core, making it a high-performance tool and instrument, and has been awarded the title of "China Electronic Product Boutique". It is an ideal tool for laboratories, factories, radio enthusiasts, and families.

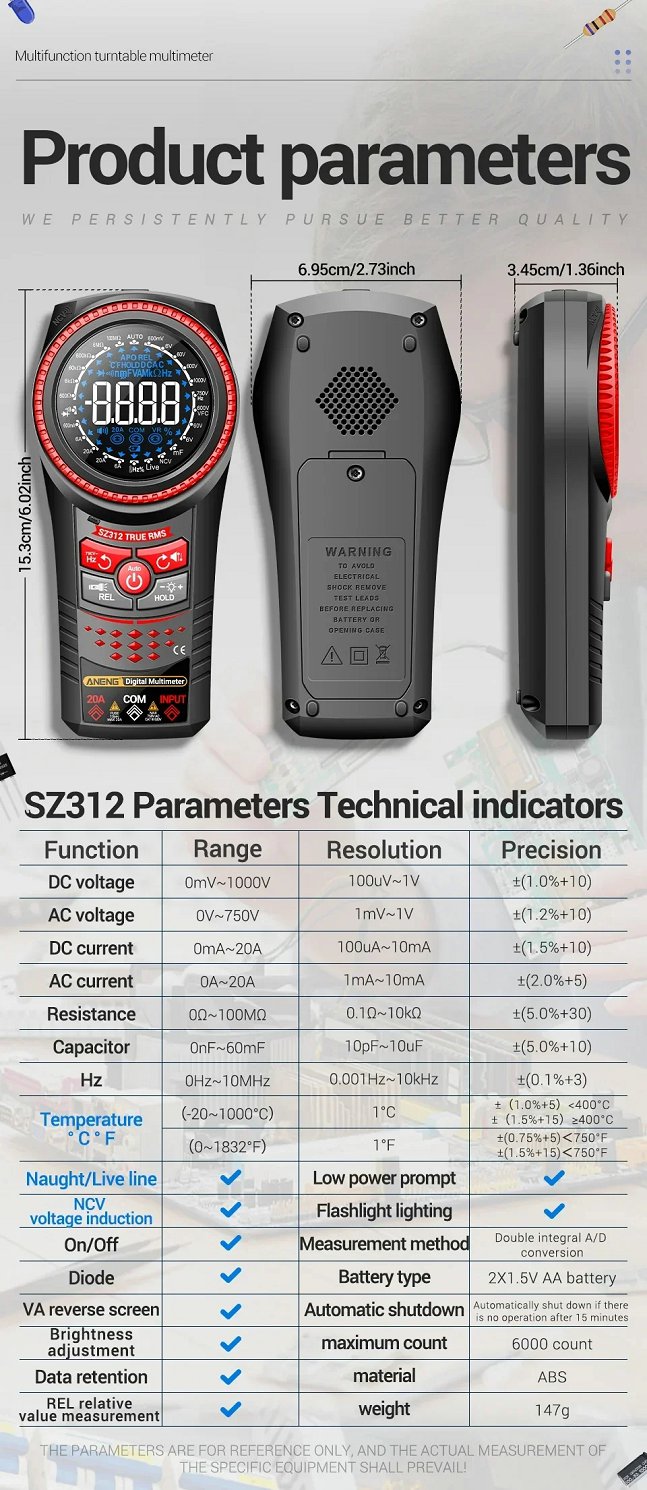

Specifications:
|
Function |
Range |
Resolution |
Precision |
|
DC voltage |
0mV~1000V |
100uV~1V |
±(1.0%+10) |
|
AC voltage |
0V~750V |
1mV~1V |
±(1.2%+10) |
|
DC current |
0mA~20A |
100uA~10mA |
±(1.5%+10) |
|
AC current |
0A~20A |
1mA~10mA |
±(2.0%+5) |
|
Resistance |
0Ω ~100MΩ |
0.1Ω~10kΩ |
±(5.0%+30) |
|
Capacitor |
0nF~60mF |
10pF~10uF |
±(5.0%+10) |
|
Hz |
0Hz~10MHz |
0.001Hz~10kHz |
±(0.1%+3) |
|

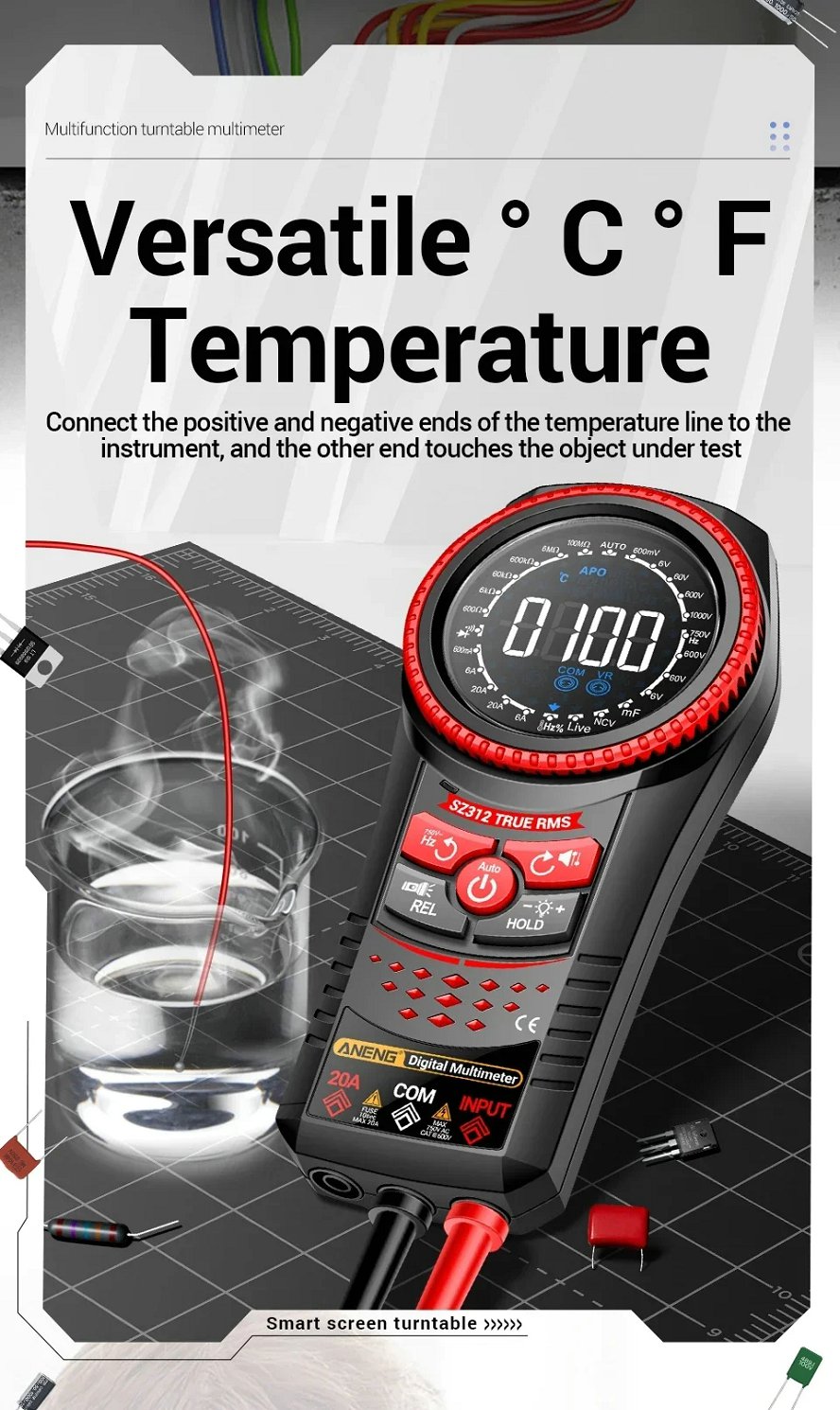

TemperatureC°F |
(-20~1000℃) |
1℃ |
±(1.0%+5) <400°℃ |
|
(0~1832°F) |
1°F |
±(0.75%+5)<750°F |
|
|

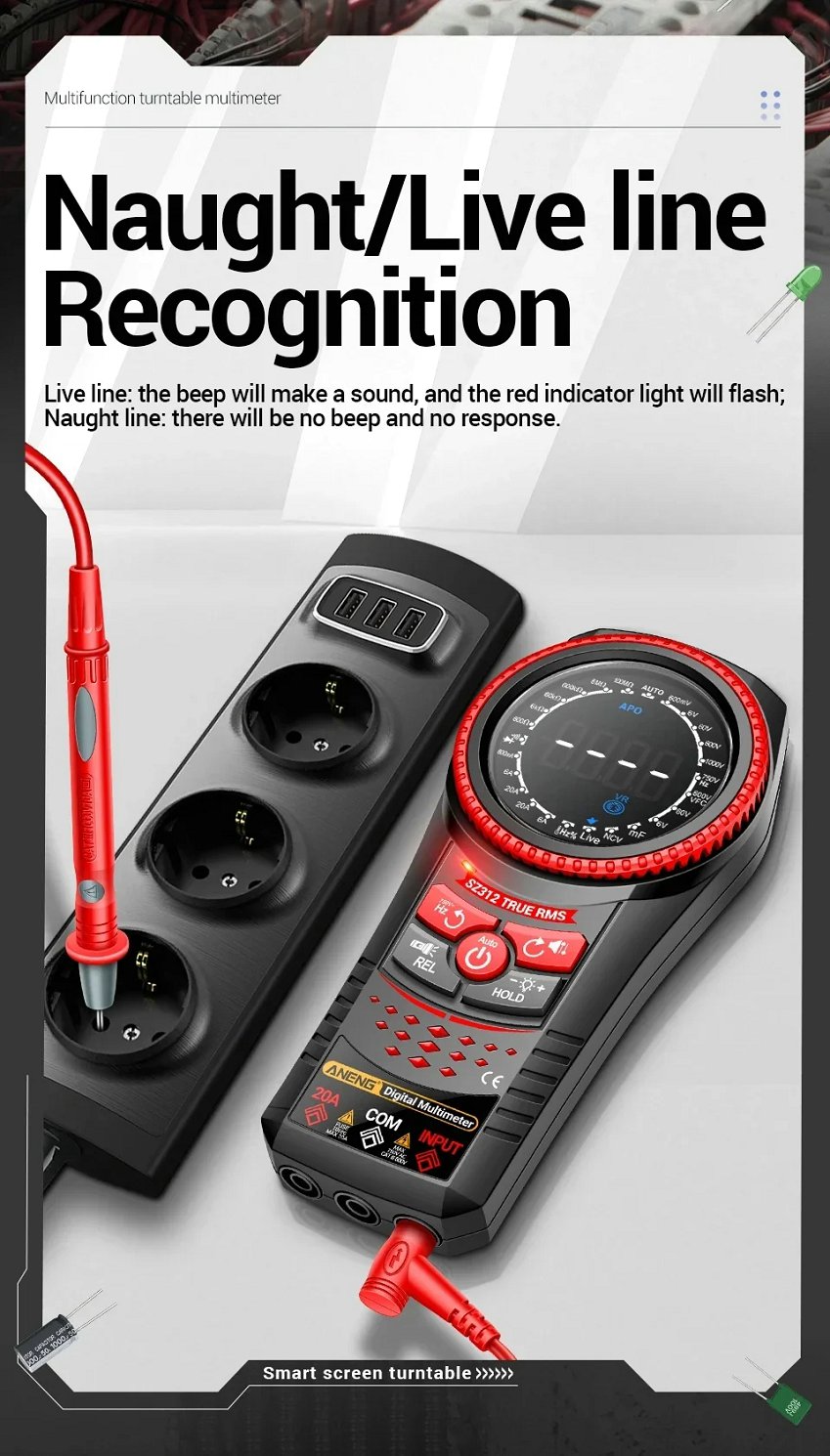

Naught/Live line |
√ |
Low power prompt |
√ |
|

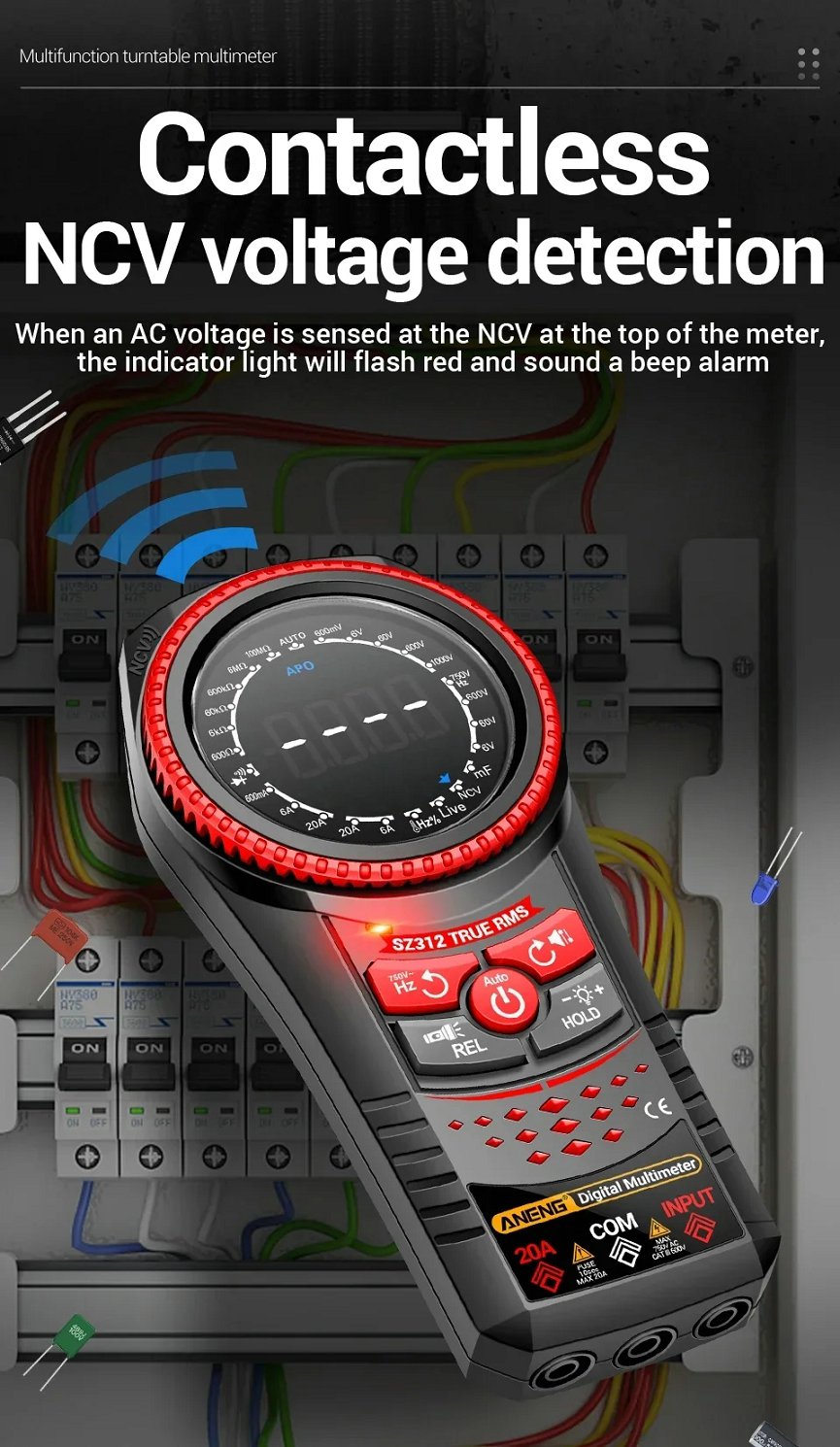

NCV voltage induction |
√ |

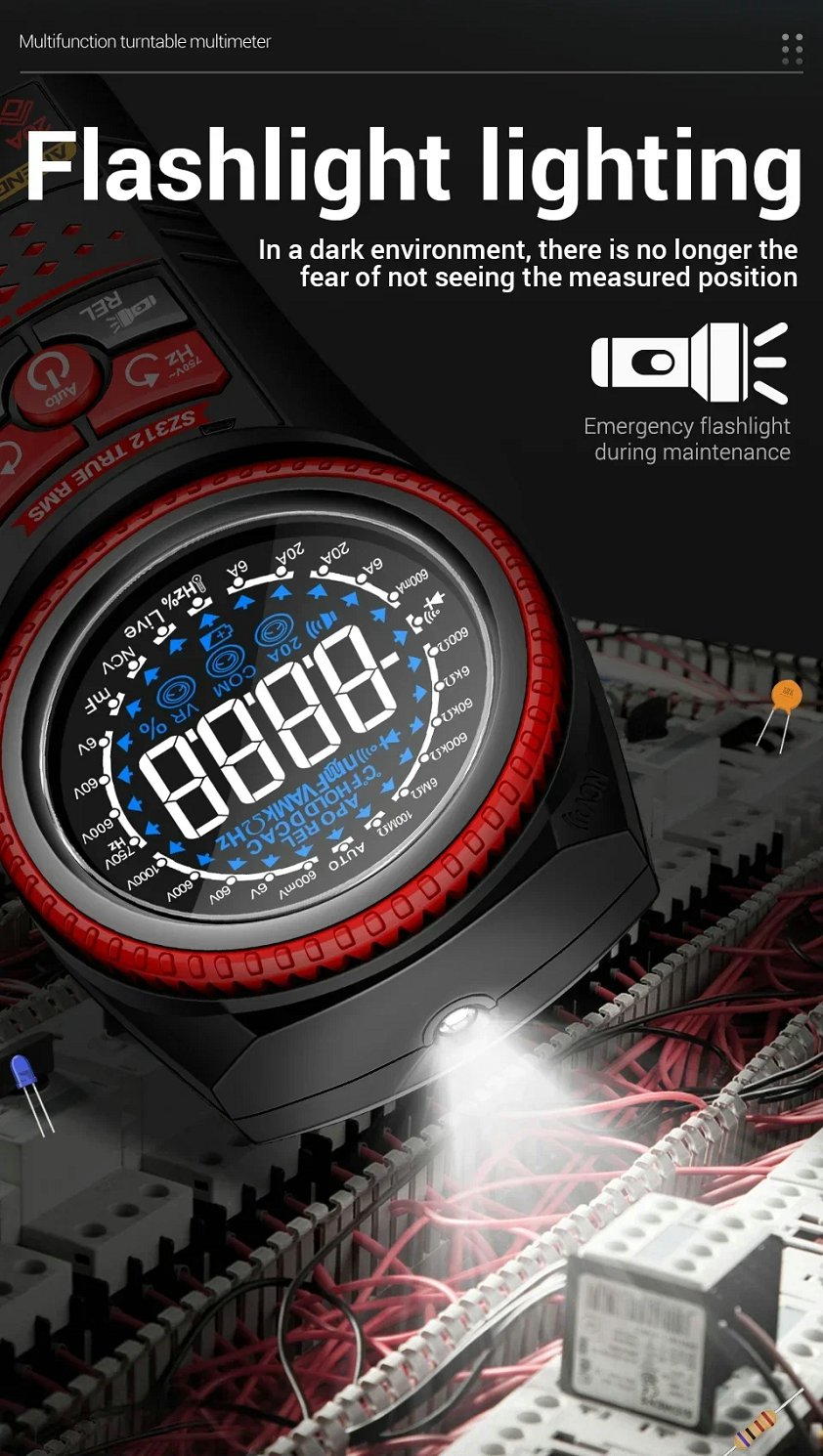

Flashlight lighting |
√ |
|
On/off |
√ |
Measurement method |
Double integral |
|
Diode |
√ |
Battery type |
2X1.5V AAbattery |
|
VA reverse screen |
√ |
Automatic shutdown |
Automatically shutdown if there |
|

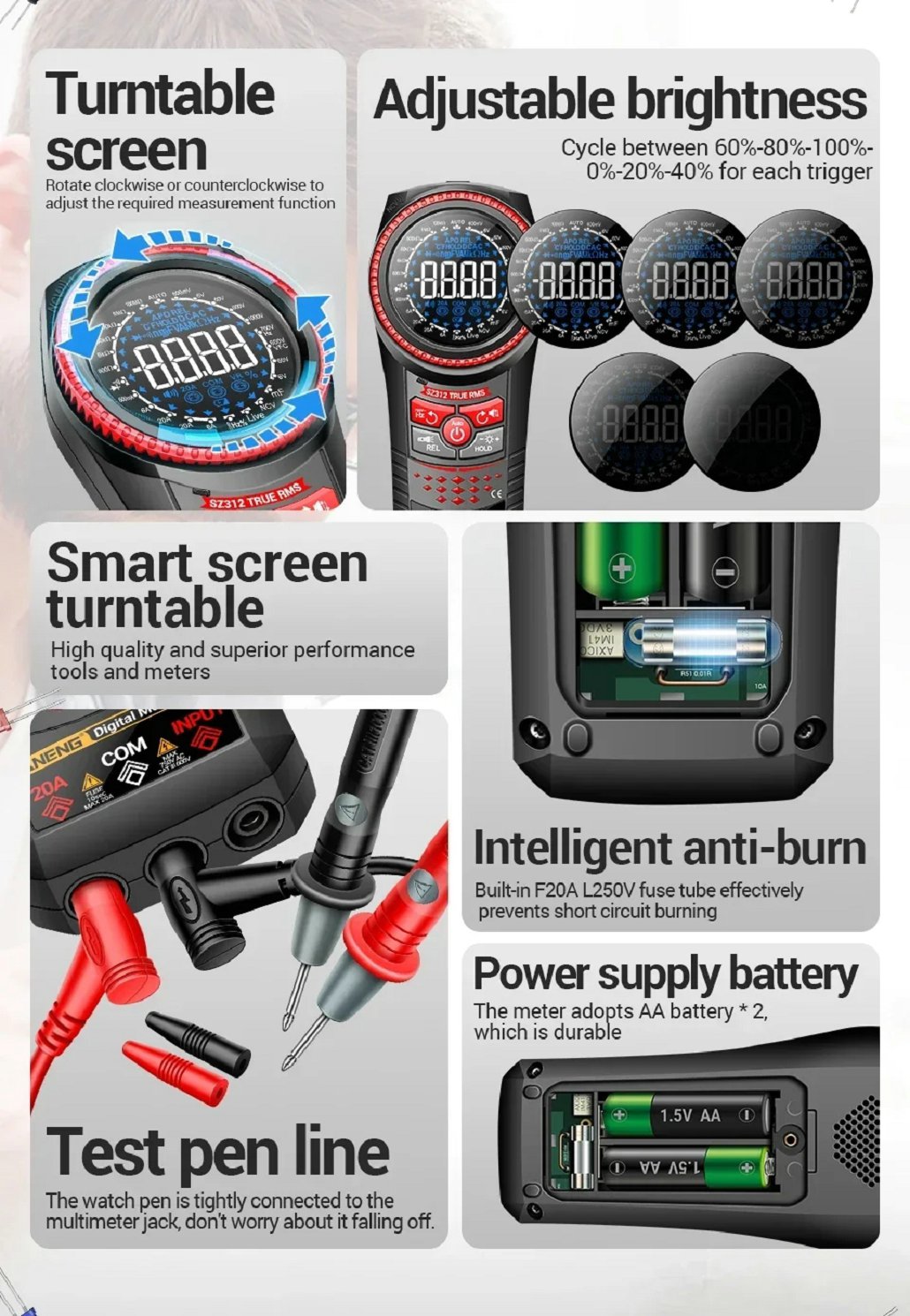

Brightness adjustment |
√ |
maximum count |
6000 count |
|
Data retention |
√ |
material |
ABS |
|
REL relative value measurement |
√ |
weight |
147g |

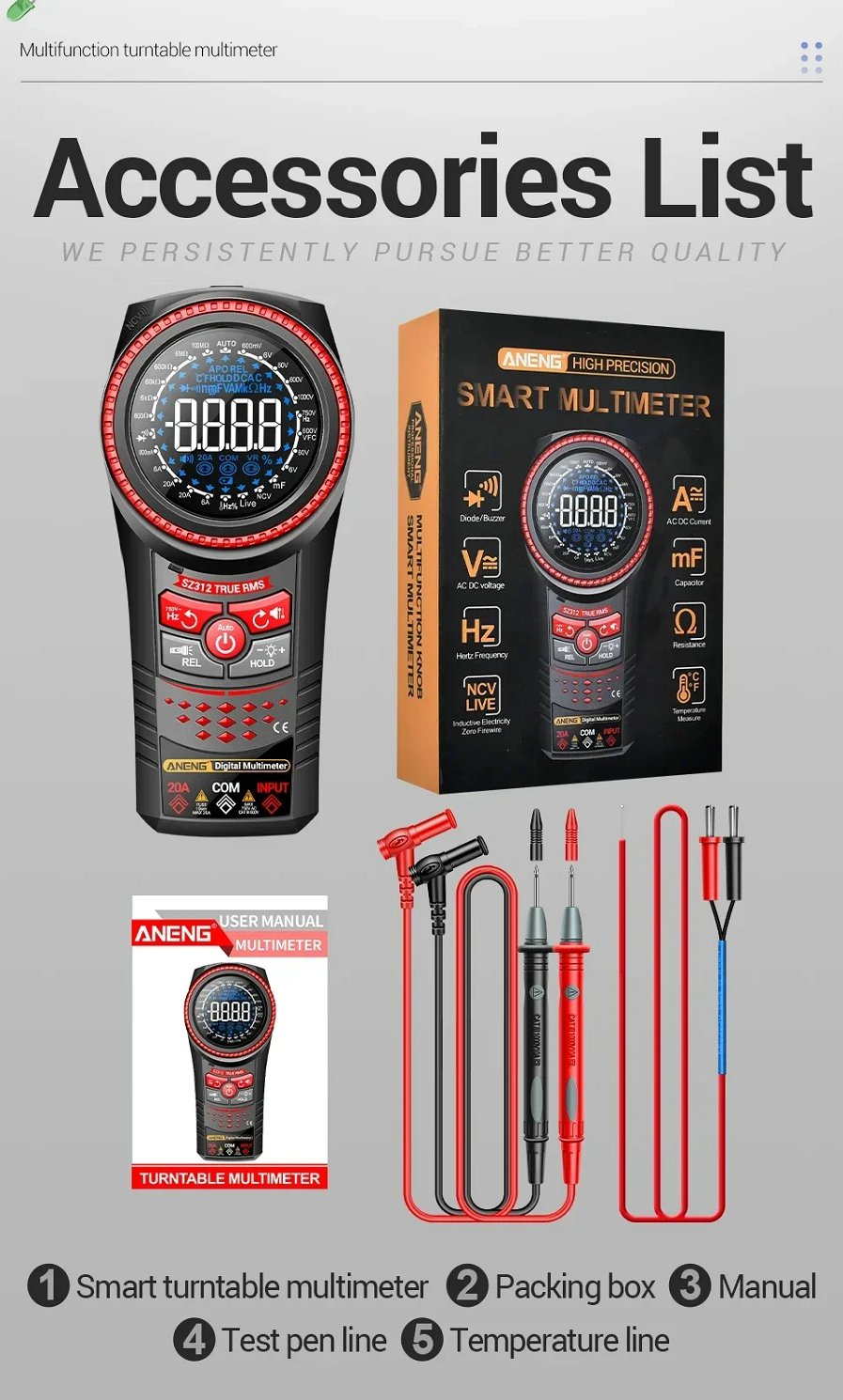

Packing list:
1 x multimeter ( Without Battery )
1 x packing box
1 x Manual
1 x test lead
1x temperature line
1x16 integrated combination line (According to the chioce)
