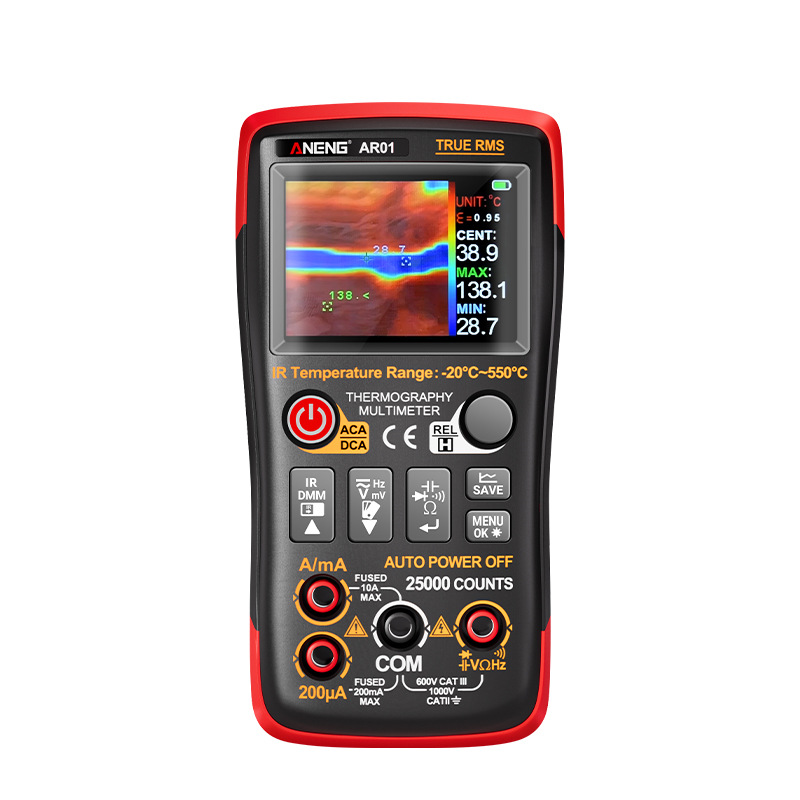

HS7332 ANENG AR01 Portable HD infrared thermal imager Digital multimeter 2-in-1





HS7332 ANENG AR01 Portable HD infrared thermal imager Digital multimeter 2-in-1

Aneng PN130 Clamp multimeter digital 4000 Count AC/DC Voltage Current  Tester NCV Induction Voltage Detect electrician Tool

Features:

LCD display: 4000 counts

Polarity indication: DC voltage automatically displays a "-" sign, positive polarity defaults

Overload indicator: Only display "OL"

Range selection: automatic

Operating temperature: 0~40 ℃, humidity less than 80%

Storage temperature: -10~50 ℃, humidity less than 85%

Product dimensions: length 160 x 37 x 26mm(L x W x T)

Product weight: approximately 76g

Please Note:
PN130 Clamp Meter with Capacitor,Hz frequency,Diode Function  (Built-in lithium batter)
PN129 Clamp Meter without Capacitor,Hz frequency,Diode Function  (AAA*2)

Specifications:

PN130 Technical parameter
Function	Range	Resolution	Precision
DC current	0A-100A	10mA-100mA	±(3.0% of rdg+10d)
AC current	0A-100A	10mA-100mA	±(3.0% of rdg+10d)
DC voltage	0V-400V	1mV-100mV	±(1.0% of rdg+5d)
	600V	1V	±(1.2% of rdg+5d )
AC voltage	0V-400V	1mV-100mV	±(1.5% of rdg+5d)
	600V	1V	±(2.0% of rdg+5d)
Resistance	0Ω	0.1Ω	±(1.5% of rdg+10d)
	4KΩ-4MΩ	1Ω-1KΩ	±(1.0% of rdg+10d)
	20MΩ	10KΩ	±(1.5% of rdg+10d)
Capacitor	0nF-40uF	1pF-10nF	±(4.0% of rdg+10d)
	400uF	100nF	±(4.5% of rdg+10d)
	4mF	1uF	±(5.0% of rdg+10d)
Hz frequency	0HZ-40KHZ	0.1HZ-10HZ	±(1.5% of rdg+10d)
	400KHZ-4MHZ	100Hz-1KHZ	±(2.0% of rdg+10d)
Diode	√	0.001V	√
Test on and off beep	√	Automatic shutdown	After 15 minutes
NCV voltage detection	√	Battery model	Built-in lithium battery

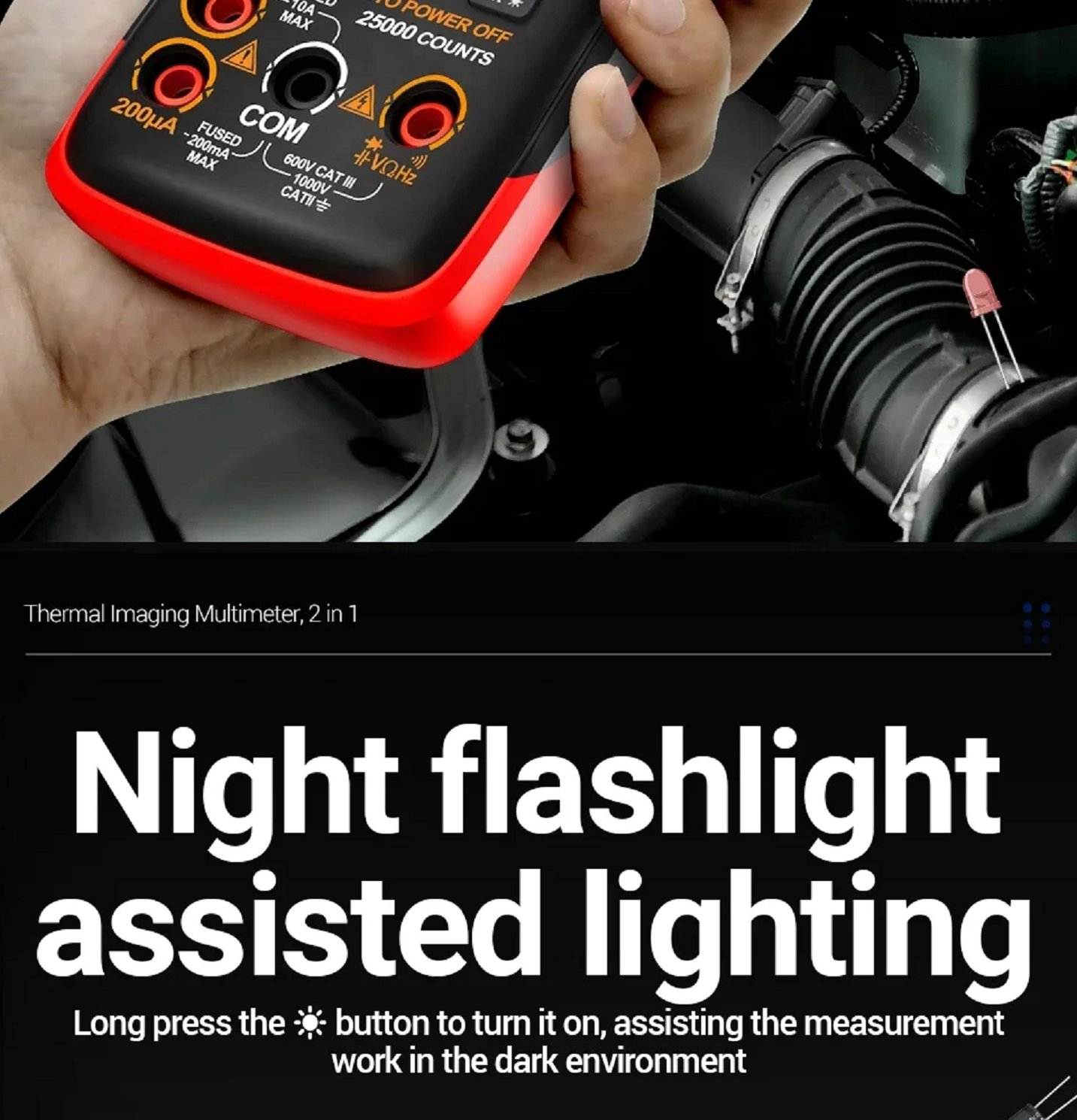

Automatic range	√	Flashlight lighting	√
Weight	68g	H data retention	√
Maximum count	4000 Count	VA color screen	√
Material	ABS	Low power display	√



PN129 Technical parameter
Function	Range	Resolution	Precision
DC current	0A-100A	10mA-100mA	±(3.0% of rdg+10d)
AC current	0A-100A	10mA-100mA	±(3.0% of rdg+10d)
DC voltage	0V-400V	1mV-100mV	±(1.0% of rdg+5d)
	600V	1V	±(1.2% of rdg+5d )
AC voltage	0V-400V	1mV-100mV	±(1.5% of rdg+5d)
	600V	1V	±(2.0% of rdg+5d)
Resistance	0Ω	0.1Ω	±(1.5% of rdg+10d)
	4KΩ-4MΩ	1Ω-1KΩ	±(1.0% of rdg+10d)
	20MΩ	10KΩ	±(1.5% of rdg+10d)
Test on and off beep	√	Automatic shutdown	After 15 minutes
NCV voltage detection	√	Battery model	AAA*2(without shipment)
Low power display	√	Flashlight lighting	√
Weight	66g	H data retention	√
Maximum count	4000 Count	LCD backlit display	√
Material	ABS

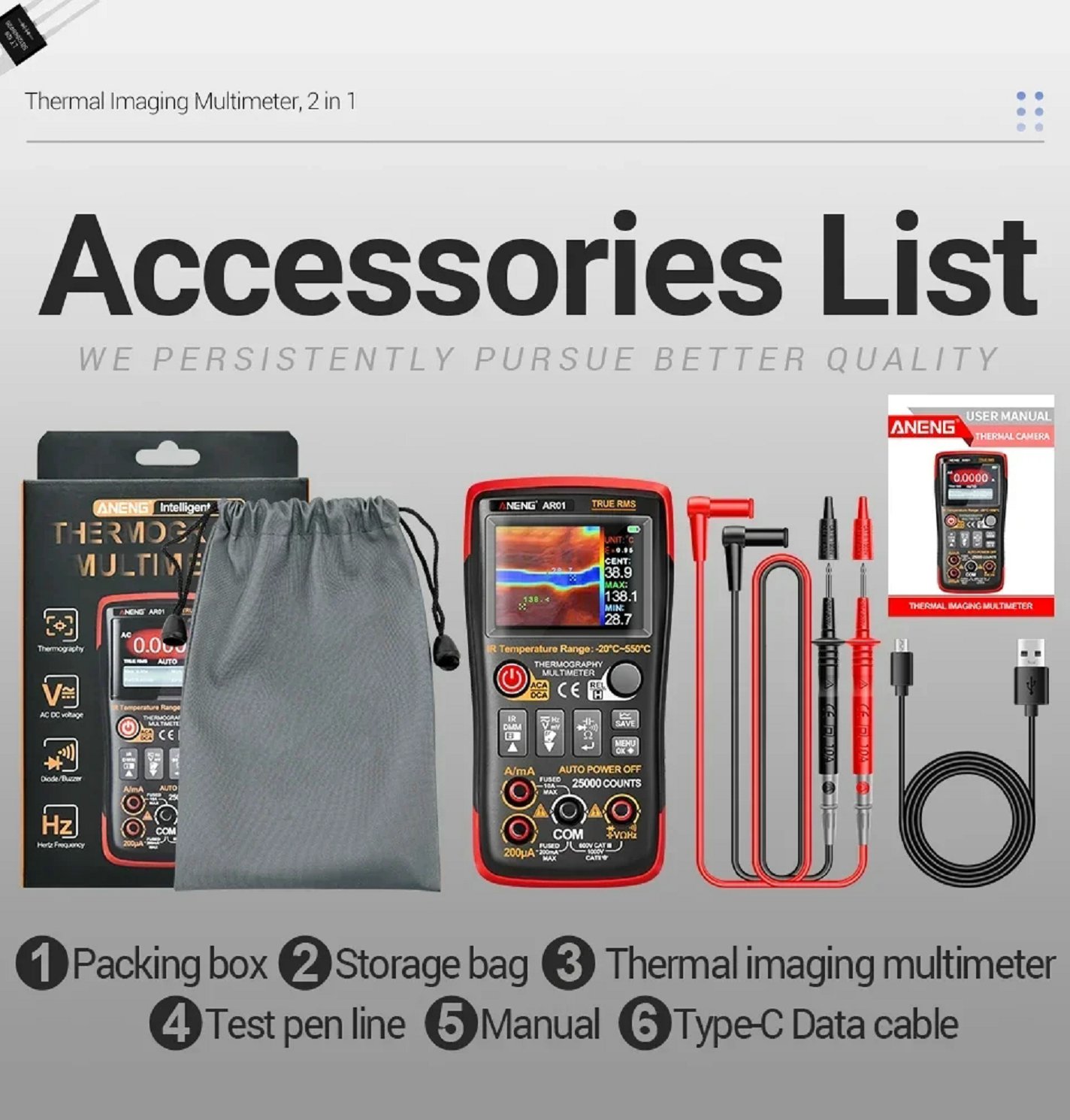

Package List:

according to your choice

Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.
5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
