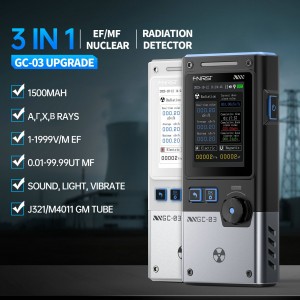

HS7359 FNIRSI GC-03 3-IN-1 Electromagnetic Radiation Detector, Electric & Magnetic Field Strength, RF Power, Temperature Monitor

HS7359 FNIRSI GC-03 3-IN-1 Electromagnetic Radiation Detector, Electric & Magnetic Field Strength, RF Power, Temperature Monitor



GC-03is a multifunctional detector, a professional instrument for measuring
nr, mainly used in various occasions such as home, office, outdoor
environment, etc. It uses a 2.4-inch high-definition color screen and
supports real-time monitoring of nr, electric field strength, and
magnetic field strength.

Main features:

1. Real-time measurement and alarm function:

The device continuously monitors and displays the measured values of
radiation, electric field strength, and magnetic field strength and
their corresponding units. And evaluates the danger level according to
the alarm threshold set for each measurement value.

2. Flexible radiation unit setting

The device allows users to select measurement units. Available units include μs v/h, uGy/h, mR/h, CPS, CPM, etc.

This function ensures that users can choose the most appropriate unit based
on their specific measurement needs and industry standards.

3. Alarm record display function

The alarm record page displays alarm records in order, with serial numbers
from the oldest to the newest. Each record contains the type of data
that triggered the alarm (for example, NR, electric field strength,
magnetic field strength) and the specific date and time when the alarm
was triggered.

4. Multiple alarm modes

This area is highlighted, indicating that the alarm mode setting has been
entered, and the corresponding setting content is displayed. There are
three alarm modes: indicator light, vibration and volume alarm. The
three modes can be combined with each other and selected according to
the user's wishes.

Basic Parameters

1.Screen material: 2.4-inch color screen

2.Backlight: Brightness Adjustable

3.Power supply: TYPE-C (5V/1A)

4.Battery: 1500mAh

5.Languages: Chinese, English

6.Product size: ≈138×63×32mm

7.Net weight: ≈141g

Measurement Parameters

1.NR

Range: 0.01usv/h-999.99usv/h

Units: usv/h

Accuracy: 0.01usv/h



2.Electric Field

Range: 1V/m - 1999V/m

Units: V/m

Accuracy: 1V/m



3.Magnetic Field

Range: 0.01μT-99.99μT

Units: μT

Accuracy: 0.01μT

Radiation Power: 0.2-1000mW/m²



NR Detection

1.Detection Type: Ionizing radiation (gamma rays, etc.)

2.Detector: Energy compensation GM tube (Geiger counter tube)

3.Dose Current Rate: 0.00-10000uSv/h (10mSv/h)

4.Cumulative Dose Equivalent: 0.00uSv-500.0mSv

5.Energy Range: 48keV-1.5MeV ≤ ±30% (for 137Cs-)

6.Sensitivity: 80CPM/uSv

7.Dose Unit: uSv/h, uGy/h, mR/h, cps, cpm

8.Alarm Mode: Light, vibration, sound

Package

 1.GC-03 Host*1

2.Packing Box*1

3.User Manual *1

4.Data Cable*1
