| Brand: | Haitronic |
| Product Code: | HS7362 |
| Availability: | 99999 |

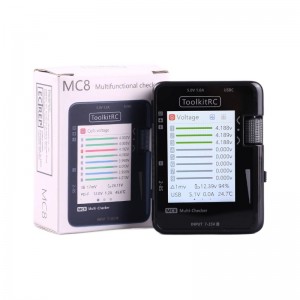

HS7362 ToolkitRC MC8 SC100 Mini Size Cell checker 32 Bit Battery Multi-Checker PWM Output PPM SBUS Readout With USB-C Fast Charging
Product overview
The MC8 is a compact multi-checker designed
for every hobbyist. Featuring a bright, color IPS display, it is accurate to
5mV.
Measures and balances LiPo, LiHV LiFe and
Lion batteries.
Wide voltage input DC 7.0-35.0V
Supports Main/Balance/Signal port power
inputs.
Measures and outputs PWM, PPM, SBUS signals.
USB-A, USB-C dual-port output.
USB-C 20W PD fast charge output
Battery over-discharge protection. Automatically disables USB output when
battery reaches criticaevels.
Measurement and balance accuracy:
<0.005VBalance current: 60mA.
2.0 inch, IPS full viewing angle display.
High resolution 320*240 pixels.
Specifications
General
Main input port：XT60 7.0V-35.0V
Balance input：0.5V-5.0V Lixx 2-8s
Signal port input：<6.0V
Balance current：MAX 60mA @2-8S
Balanceaccuracy：<0.005V @ 4.2V
USB-A output：5.0V@1.0A firmware upgrade
USB-C output：5.0V-12.0V @MAX 20W
USB-C protocol：PD3.0 QC3.0 AFC SCP FCP
Measurement
PWM：500-2500us @20-400Hz
PPM：880-2200us*8CH @20-50Hz
SBUS：880-2200us *16CH@20-100Hz
Output
PWM：1000-2000us @20-1000Hz
PPM：880-2200us*8CH @50Hz
SBUS：880-2200us *16CH @74HZ
Product
Size：68mm×50mm×15mm
Weight：50g
Package
New packaging size：74mm×56mm×27mm
Weight：100g
LCD: IPS 2.0 inch 240*240resolution
