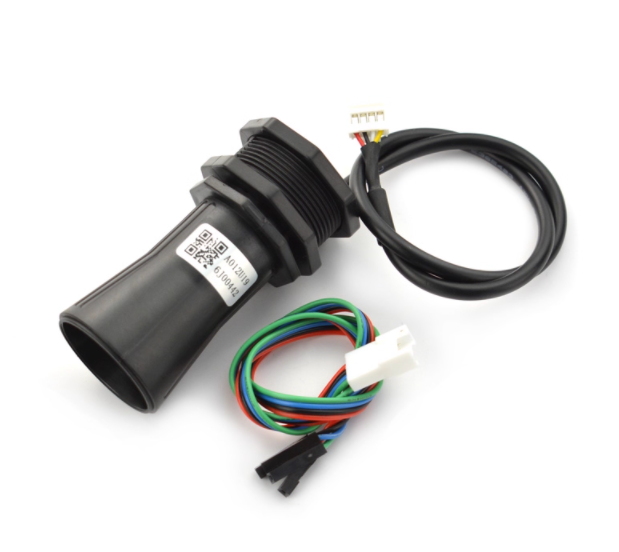

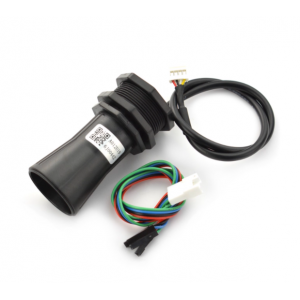

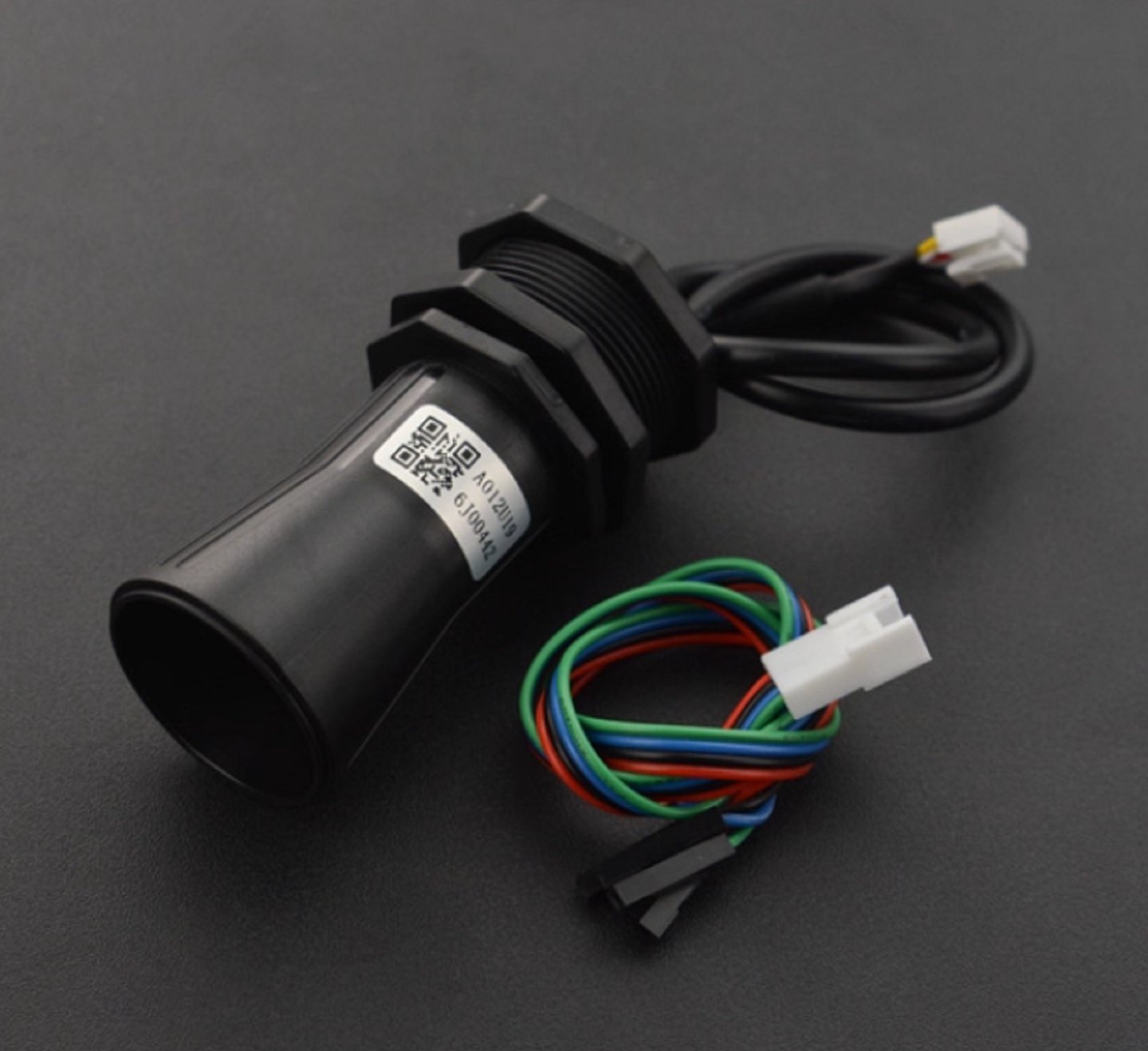

HS7424 A01NYUB ultrasonic sensor

HS7424 A01NYUB ultrasonic sensor

Brand:Haitronic
Product Code:HS7424
Availability:99999
Qty:     - OR -   Add to Wish List Add to Compare

HS7424 A01NYUB ultrasonic sensor



Features

High Protection Rate
Strong Resistance
Stable Output
Low Power
Fast Response
High Antistatic Performance
Wide Operating Temperature
High Accuracy
Small in Size

Specification

Operating Voltage: 3.3~5V
Average Current: <15mA
Blind Zone: 28cm
Detection Range (Flat Object): 28-750cm
Output: UART
Response Time: 100ms
Probe Center Frequency: 40K±1.0KHZ
Operating Temperature: -15~60℃
Storage Temperature: -25~80℃
Sensing Angle: with bell-mouth: 55º
without bell-mouth: 40º
Waterproof Grade: IP67
