| Brand: | Haitronic |
| Product Code: | HS7489 |
| Availability: | 99999 |

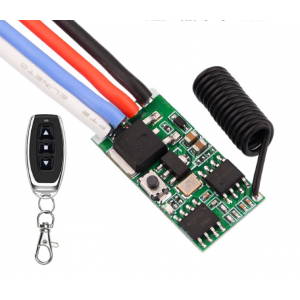

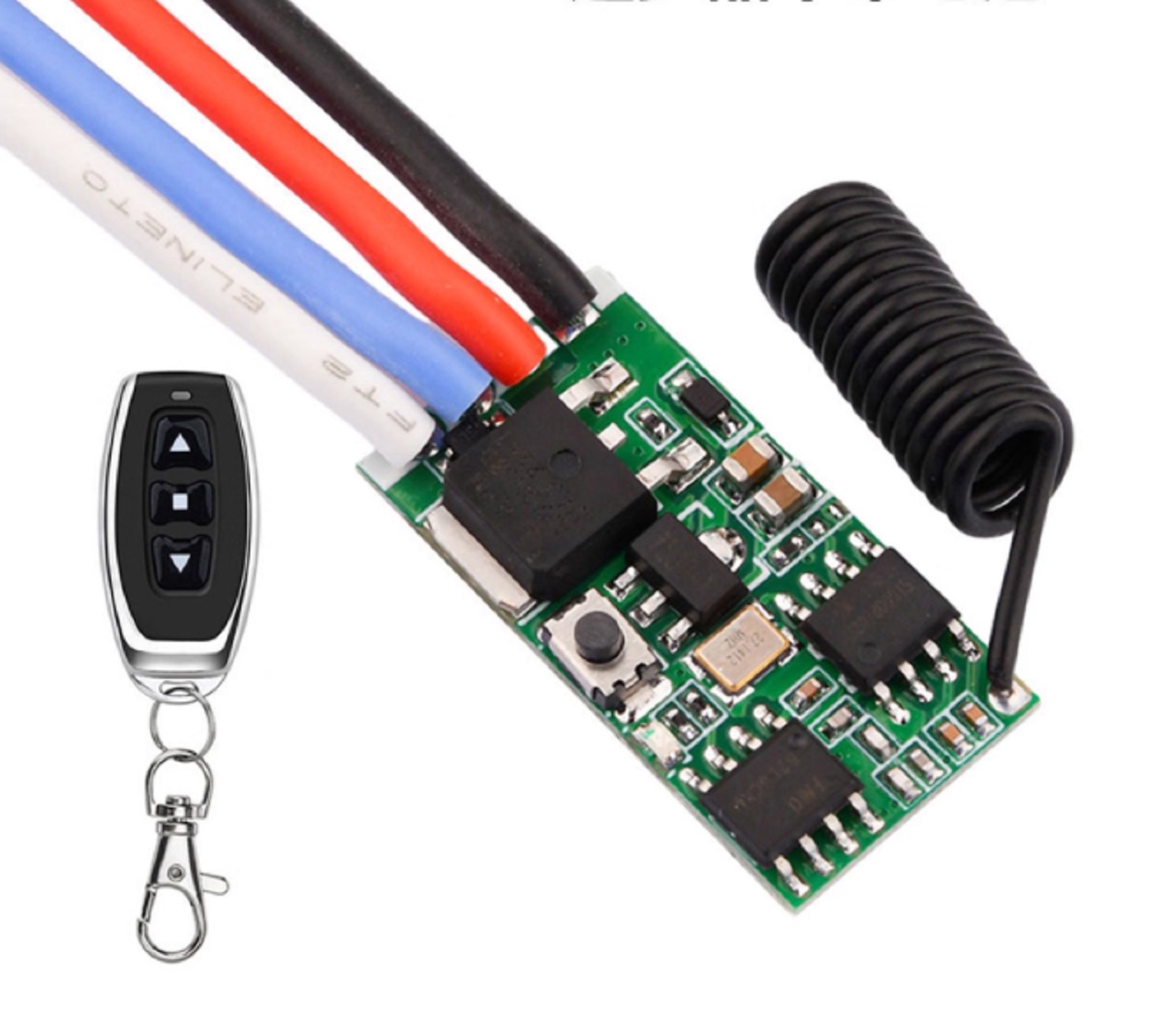

HS7489 DC 3.7V-24V 5A Wireless Remote Control
Description:
1.The product is made of high-quality materials with guaranteed quality
2.Stable product performance and long service life
3.The appearance design is compact and adopts a two in two out wiring method, with clear and simple wiring at a glance
4.The product has a wide range of application scenarios and is very suitable for DIY enthusiasts
5.The maximum working current can reach 5A, and it can work continuously for 3A for a long time
Parameters:
Product Name: Remote PWM Dimming Speed Control Module
Working voltage: DC3.7V-24V
Working current: maximum 5A, long-term continuous operation of 3A
Wiring method: two in and two out
Function description:
1.Pairing method: Press the learning button on the module once, the indicator light will flash and light up. Press any button on the remote control once, and the module will flash after receiving the signal to indicate successful pairing.
2.Press the learning button 8 times to set the call on function, and press it again 8 times to turn off the call on function. The factory defaults to turning off the call on function.
3.Press the learning button 9 times to clear all learned remote controls.
Symbol description:
DC-IN - Connected to the negative pole of the power supply DC-IN+Connected to the positive pole of the power supply
OUT - Connected to the negative pole of the load OUT+Connected to the positive pole of the load
Package include:
Module X1
Remote Control X1
