HS7492 GX591 DIY spot welder kit

HS7492 GX591 DIY spot welder kit





 Features:
1.Intelligent CNC spot welding machine, 99 gears precise adjustment.
2.High-speed microcontroller, intelligent program real-time display of battery voltage, spot welding strength can be seen.
3.Weld firmly without blowing the tube, support 0.1-0.2mm nickel sheet spot welding, weld more transparent, weld spot clean.
4. Both spot welder and voltmeter, built-in 12-bit high-precision ADC, voltage measurement accuracy of up to 0.01, the voltage can be tested range: 12V, connected to the power supply automatically display voltage.
5.6 MOS tubes, spot welding peak current up to 1800A.
6.Ultra-thick copper tube, 12AWG wire, aluminum oxide copper spot welding needle, to ensure the ability and durability of large current, greatly improve the efficiency of spot welding.

Parameters:
Product Model:GX591
Working voltage:12V
Operating current:100-300A
Standby power consumption:<0.5ma
Thickness of welded nickel sheet:0.1-0.2mm(related to battery discharge energy)
Welding peak current:1800A MAX

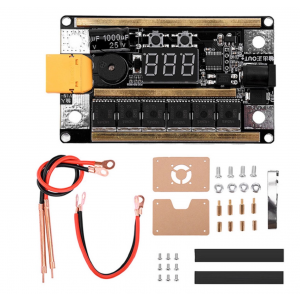

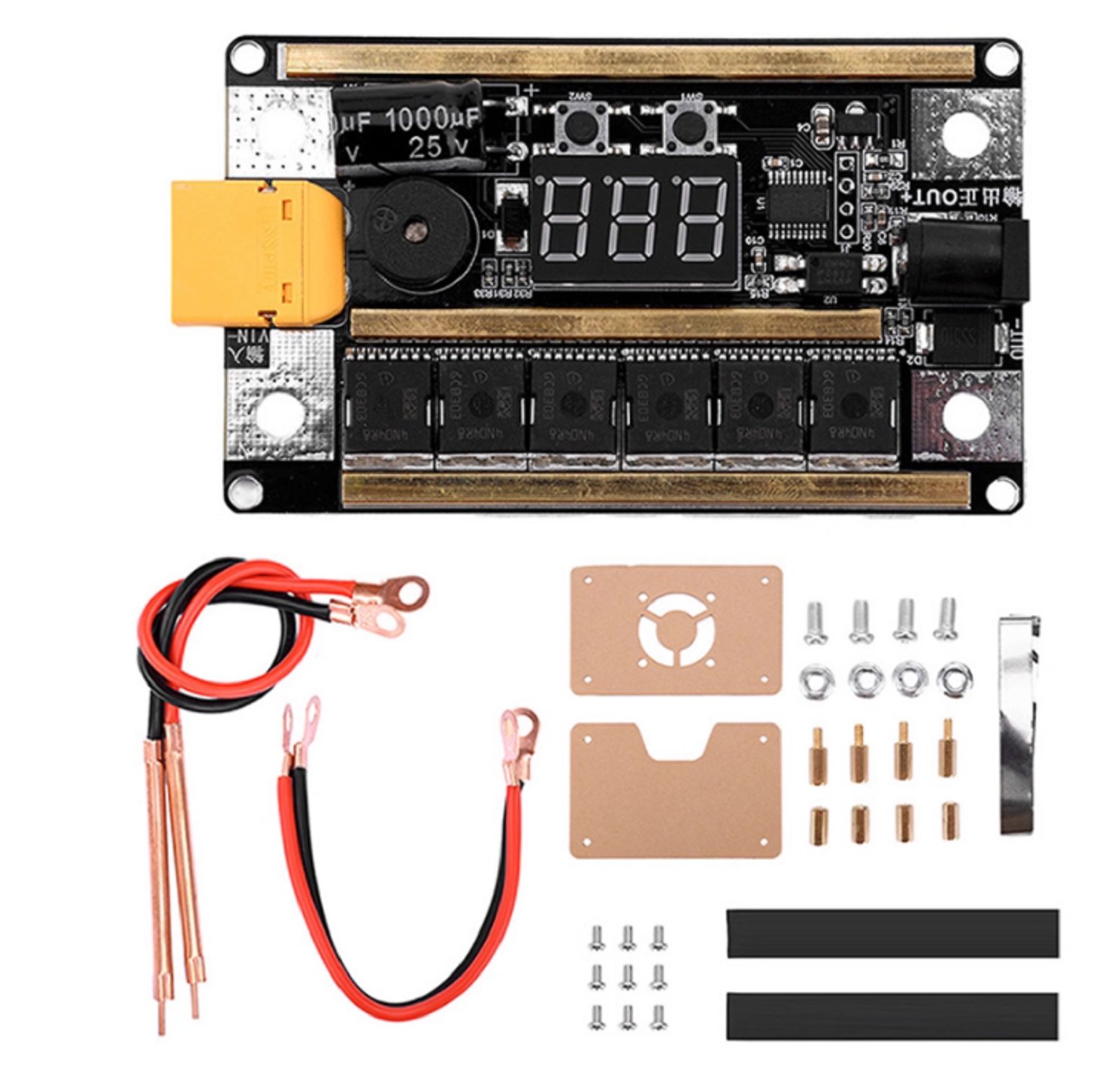

Package Included:
Without case kit:
Spot welder control board*1
Welding Pen*2
Connection cable*2
Heat Shrink Tube*2
Nickel sheet *1
Screw *4
Nut*4

Kit with shell:
Spot welder control board *1
Welding Pen*2
Connecting wire *2
Heat Shrink Tube*2
Nickel sheet *1
Screw *4
Nut*4
Acrylic plate *2
Copper post screws *4
Copper post nut *4
Small screw *8
