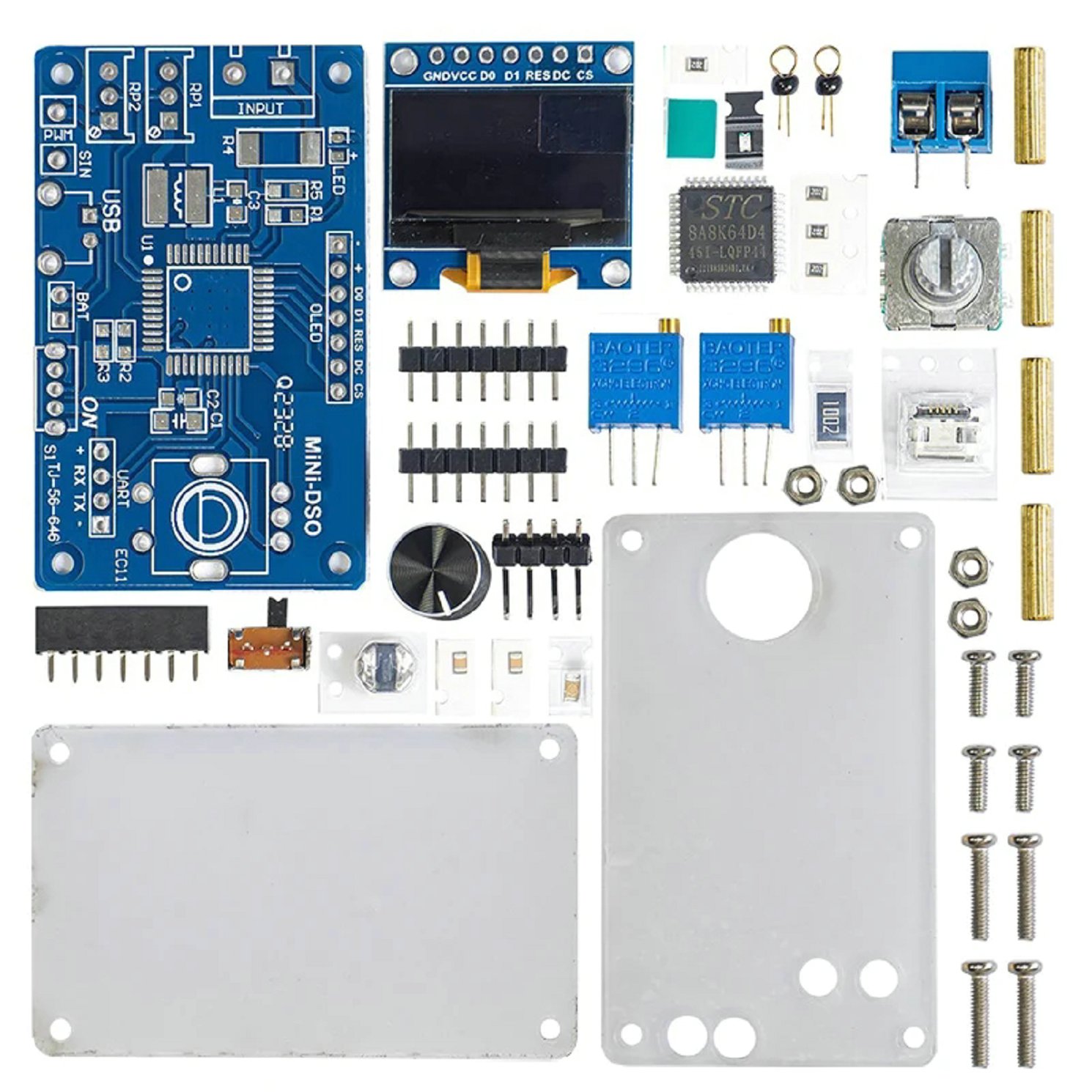

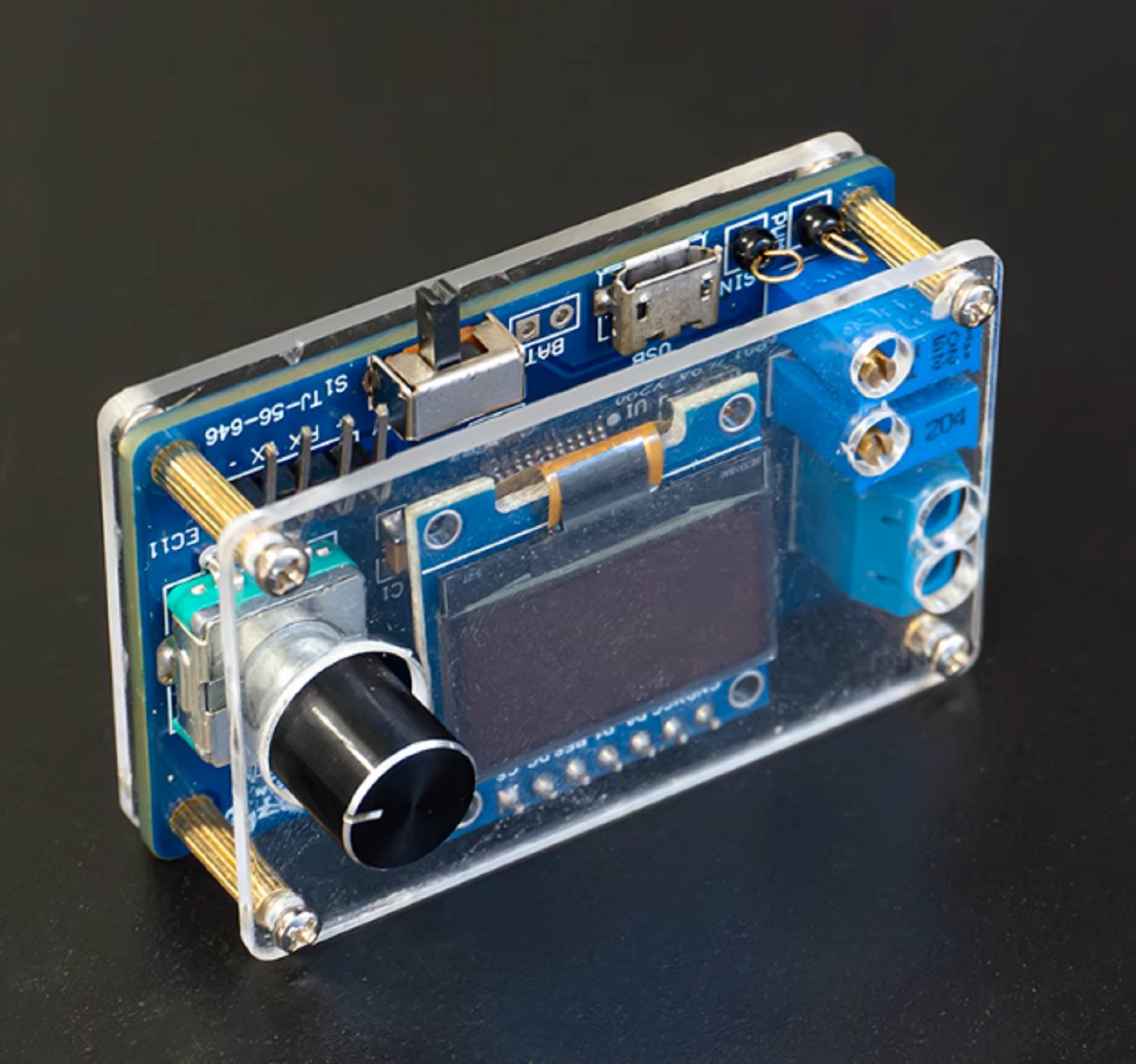

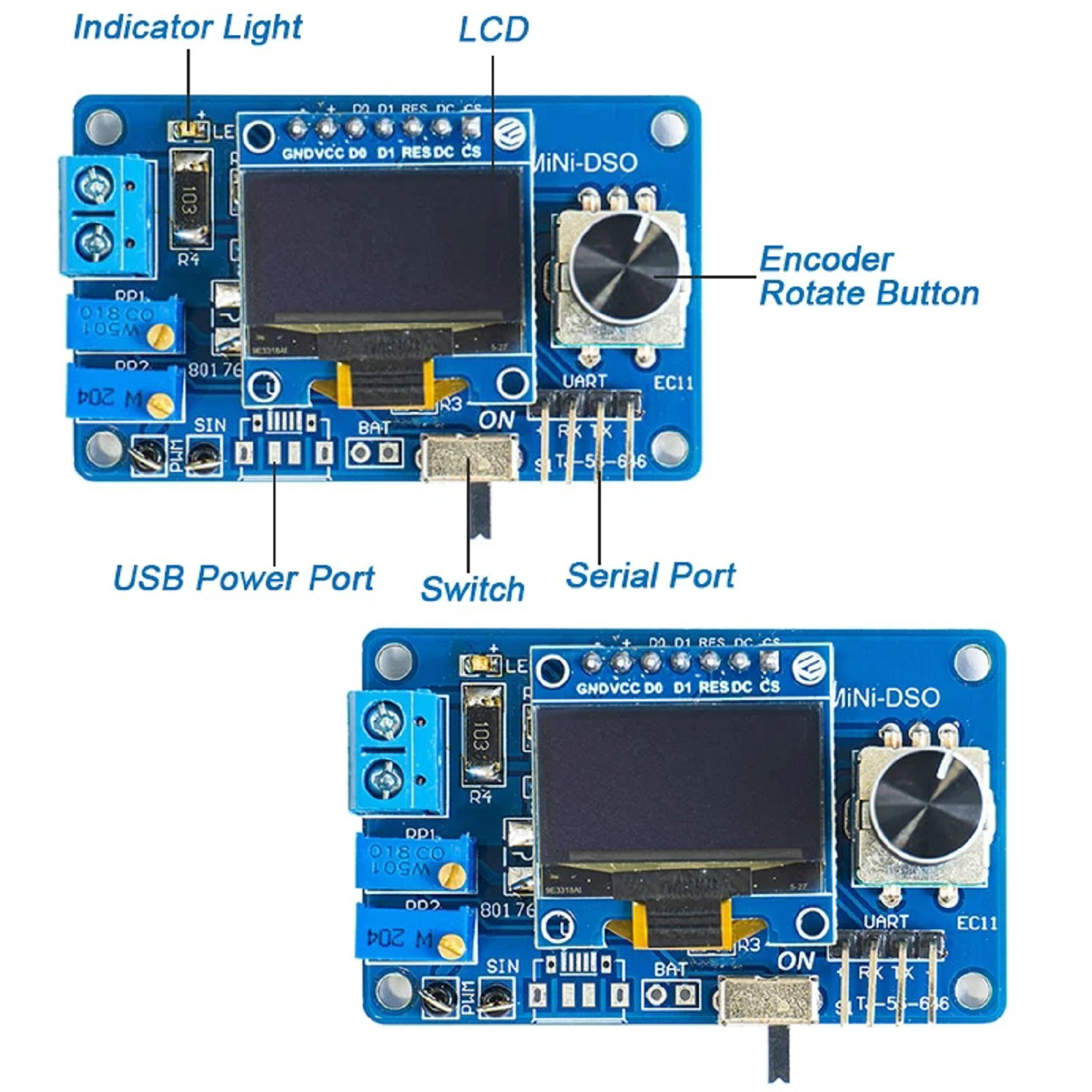

HS7470 DIY Mini Digital Oscilloscope Kit
Product name: MiNi-DSO microcontroller oscilloscope kit
Product model: TJ-56-646
PCB size: 57 * 34mm
Working voltage: 4-5V
Single chip: STC8A8K64S4A12
Display: 0.96 inch OLED display screen -7P, 128 * 64 resolution
Number of channels: single channel
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms, 10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us (100us only available in automatic trigger mode)
Voltage range: 0-30V
Sampling level: 10kHz@100us /Div
Trigger level: Trigger voltage level
Trigger slope: ↑ - rising edge, ↓ - falling edge trigger
Trigger mode: A-automatic mode, N-normal mode, S-single mode.
Product introduction:

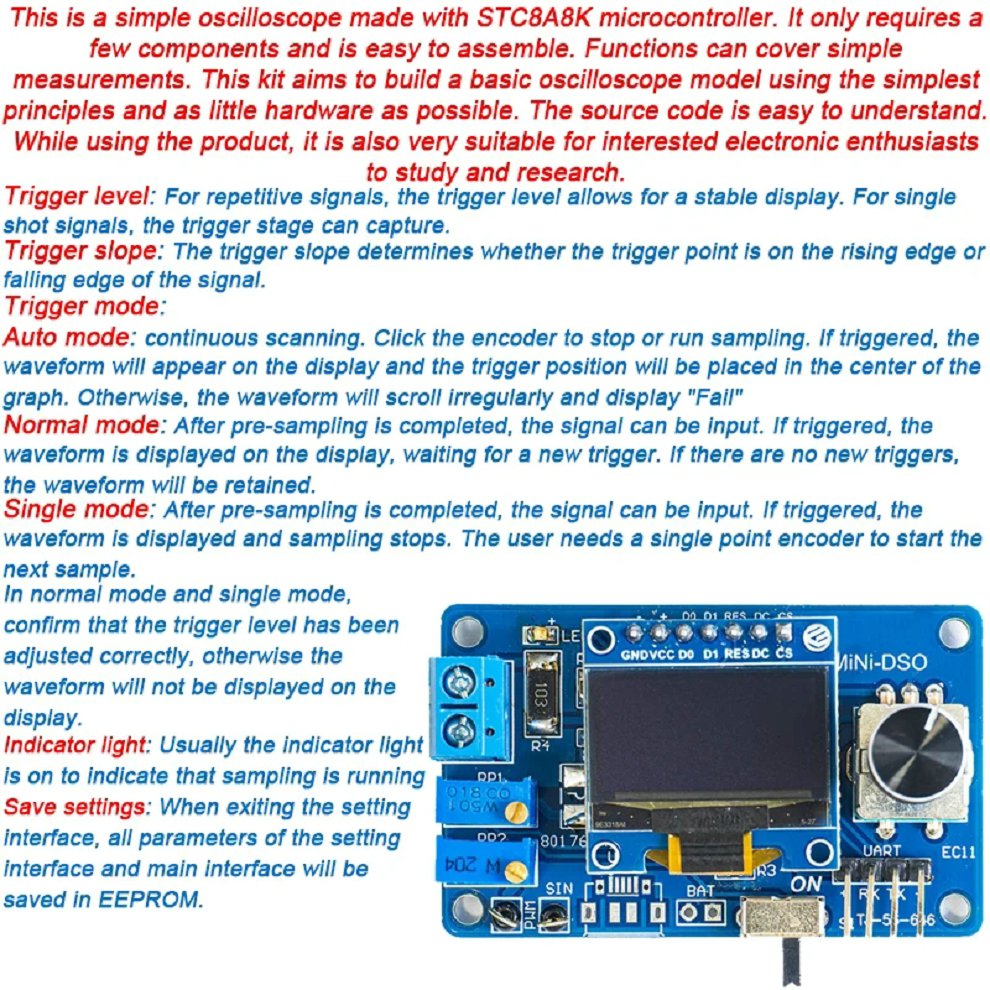

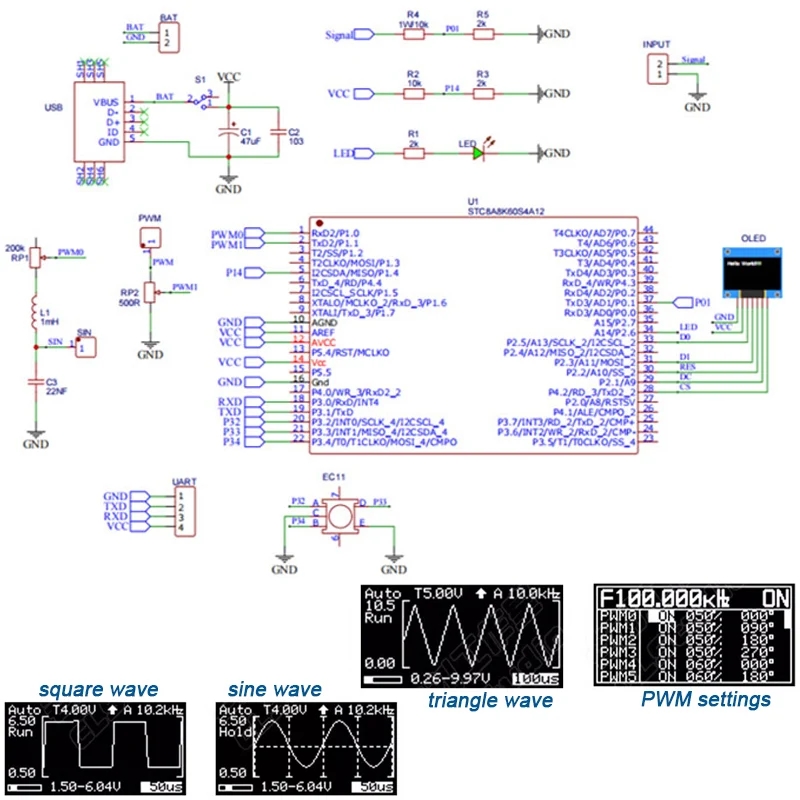

This is a simple oscilloscope made with an STC8A8K microcontroller. It only requires a small amount of components and is easy to assemble. The function can cover simple measurements. This kit aims to build a basic oscilloscope model with the simplest possible principles and as little hardware as possible. The source code is easy to understand, and it is also very suitable for interested electronic enthusiasts to learn and research while using the product.
