| Brand: | Haitronic |
| Product Code: | HS7499 |
| Availability: | 9999 |

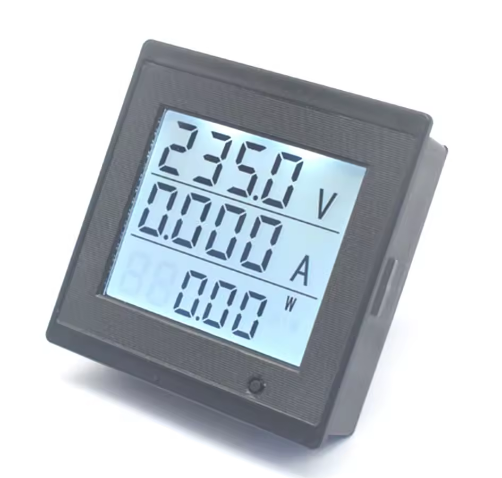

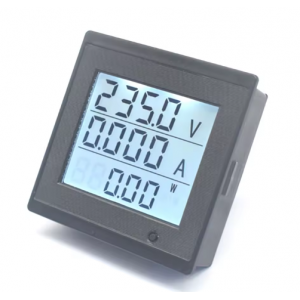

HS7499 LCD Digital Display AC Voltage Current Power Frequency Meter AC80-300V 20A
Features:
1.Electrical parameter measurement function (voltage, current, power, energy consumption, time, frequency, power factor).
2.Voltage alarm function (exceeding the voltage alarm threshold, backlight and voltage flashing prompt).
3.Overload alarm function (exceeding the power alarm threshold, backlight and power flashing prompt).
4.Reset the power and time buttons.
5.Large display window large font.
6.Power failure data saving function.
7.Backlight function.
Parameters:
Measuring voltage: AC80-300V
Measuring current: 0-20A
Measuring power: 0-4.4KW
Measured energy consumption: 0-99999KW
Measuring frequency: 40-65HZ
Power factor: 0-1PF
Timing function: no load time
Display window: 41mm * 48mm
Overload alarm: settable
Voltage alarm: settable
Wiring type: fence terminal
Installation method: embedded
Module size: length * width * height 68mm * 68mm * 22mm
Panel opening: length * width 63mm * 63mm
Key description:
1. Press the key briefly to switch power, energy consumption, time, frequency and power factor
2. The backlight can be turned on or off by pressing key 2 quickly
3. Press and hold for 6 seconds to enter the setting mode
4. Press and hold for 3 seconds to move to the next group
3. Hold the key for 2 seconds in each group and automatically jump to the next group
6. No operation, exit in 10 seconds and save the number
Package include:
Measuring meter x1
