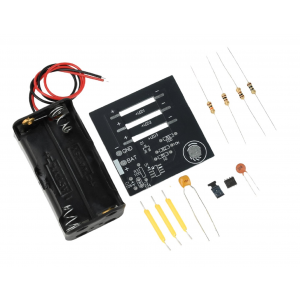

HS7727 Touch Stepless Dimming Electronic Soldering Kit

HS7727 Touch Stepless Dimming Electronic Soldering Kit



Product Features:

1. Safe DC 6V power supply for worry-free use
2. Touch-sensitive stepless dimming for adjustable brightness
3. Long press to brighten/dim, simple and intuitive operation
4. Stable performance, high sensitivity, and long lifespan
5. Compact circuit board, easy to assemble, suitable for DIY

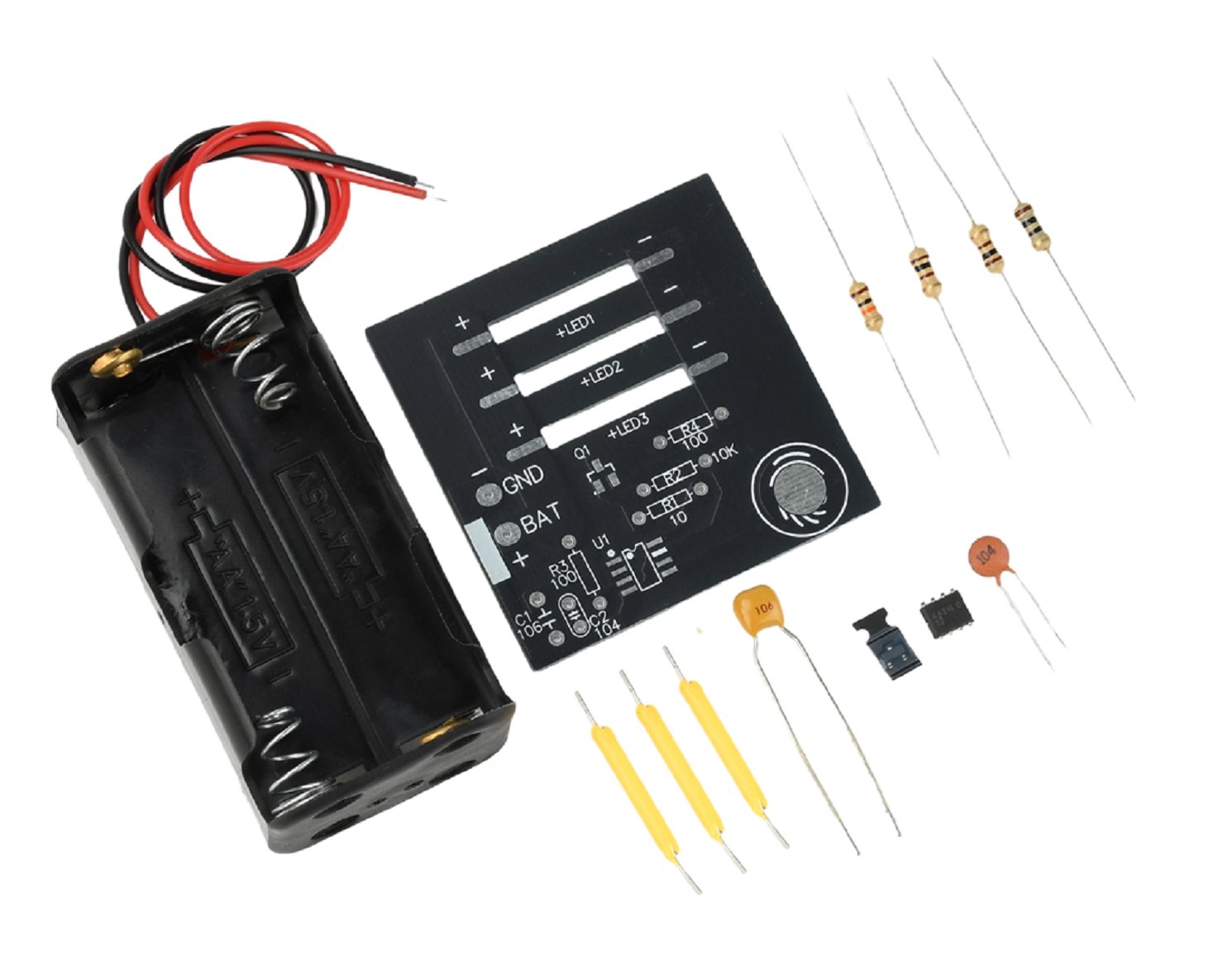

Product Parameters:

Power Supply Voltage: DC 6V
PCB Size: 45*45mm
Power Supply: AA batteries x4 (batteries not included in shipment)
LEDs (note the positive and negative terminals have holes for positive) *3
Transistor 2300A *1
Resistor 100Ω *2
Resistor 10K *1
Resistor 10Ω *1
Capacitor 106 *1
Capacitor 104 *1
Chip (note the orientation, dot to dot) *1
PCB *1
Battery Box *1
