| Brand: | Haitronic |
| Product Code: | HS7801 |
| Availability: | 99999 |

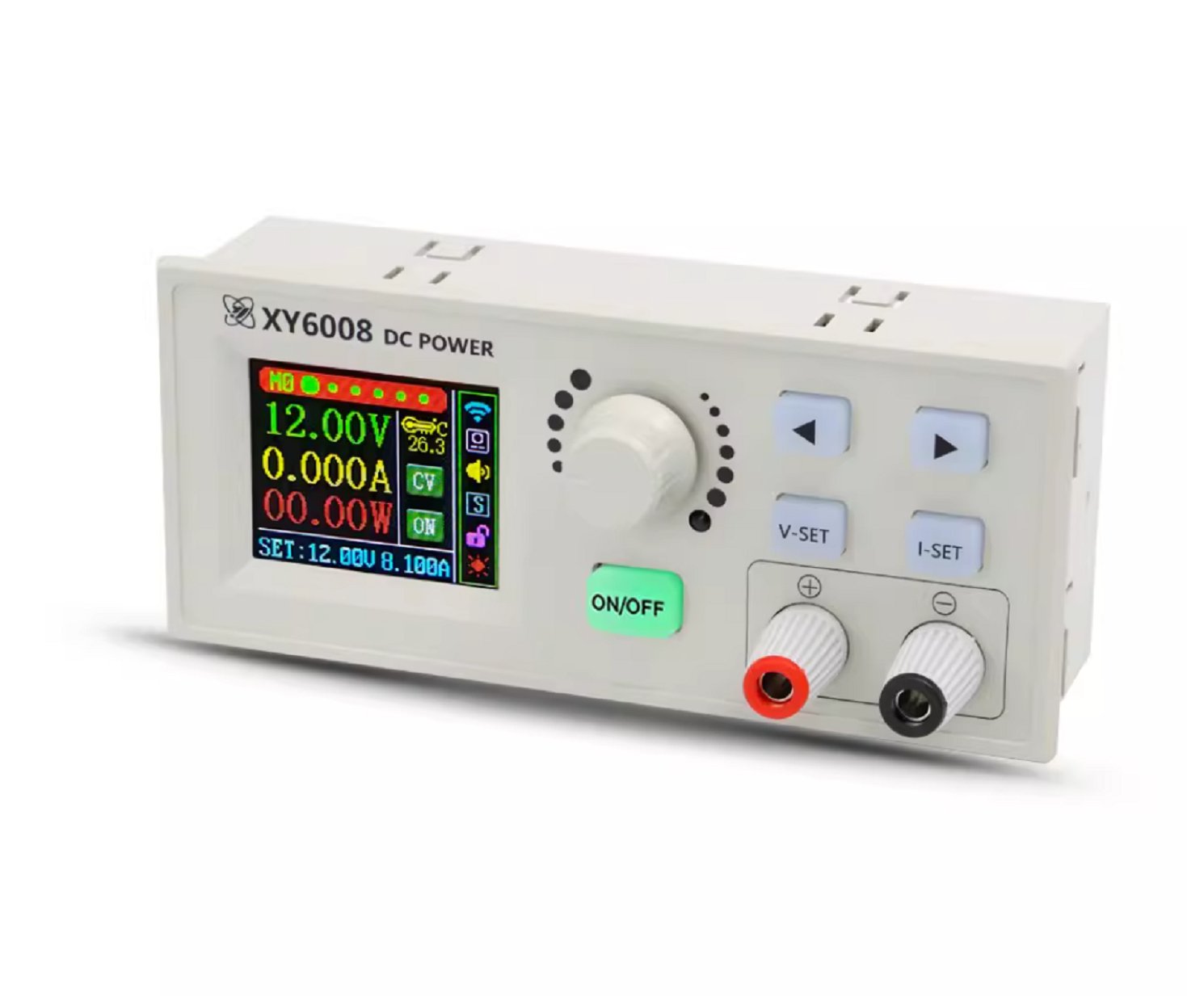

HS7801 XY6008 60V 8A 480W For Dc Power Supply Step-down Module
Features:
Flame retardant material.
Full numeric keyboard, easy to operate.
Firmware upgrade, experience upgrade brings more possibilities.
Display color, match as you like, support to set 8 colors to match freely.
It can be used horizontally or vertically, and can be controlled by a remote control. The screen supports four-way rotation.
Specifications:
Material: Plastic, PCB
Size: Approx. 12.5x5.5x3.5 for cm/4.92x2.17x1.38 in
Model: XY6008/XY6008W
Input : 6-70. 00V
Output : 0-60.00V
Output current : 0-8.000A
Output power : 0-480.0w
Input measurement resolution: 0.01V
Output setting measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Input measurement accuracy: ±(1%+5 digits)
Output setting and measurement accuracy: (0.4%+1 word)
Output current setting and measurement accuracy: ±(0.5%+3 digits)
Typical output ripple: 100mv VPP
Product working temperature : -10℃--40℃
Capacity measurement : 0-99999Ah
Energy measurement : 0-99999Wh
Statistical error of capacity and energy: ±2%
Running for time measurement : 0-1000h
Maximum output : (input voltage÷1.1)-2
Cooling fan turned on: current>2A power>50W temperature>50℃
The cooling fan is turned on and then turned off: current <1.5a power=""><45w temperature=""><>
Over temperature protection: default 110℃
Screen brightness setting: 0-5 a total of 6 levels
Display screen: 1.8 inch color LCD screen
