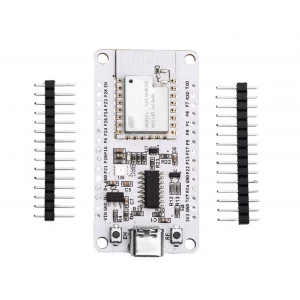

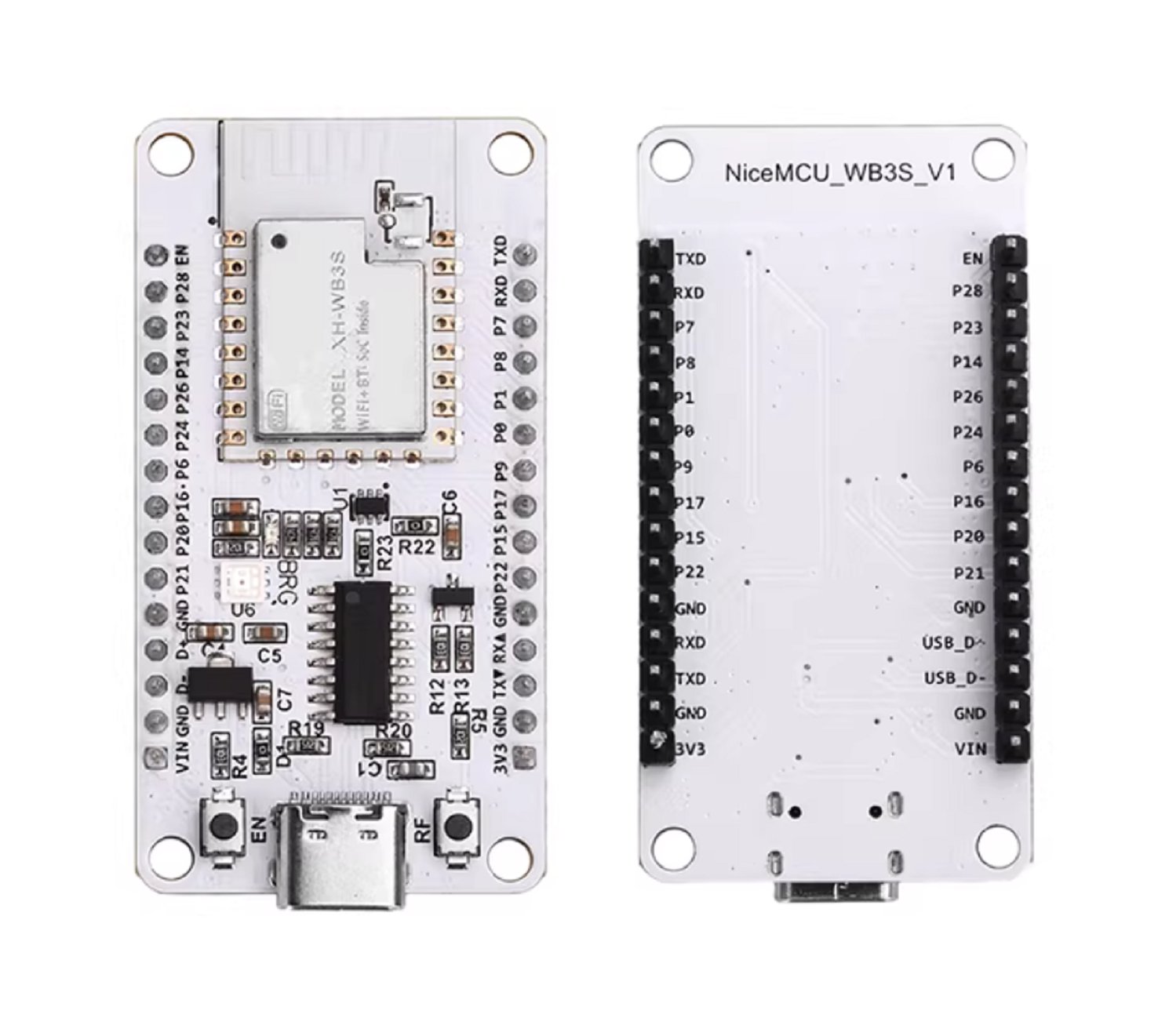

HS7914 NiceMCU-WB3S Development Board Wifi Bluetooth-compatible Module
Features:
1. This development board is equipped with a low-power 32-bit CPU, which can also serve as an application processor.
2. Stable performance, with a clock frequency of 120MHz and support for WEP, WPA/WPA2.
3. Supports the 802.11 b/g/n standard, with a maximum output power of+16dBm in 802.11b mode.
4. Onboard PCB antenna with a gain of 1.5dBi, easy to use.
5. Widely applicable, suitable for smart homes/appliances, smart sockets, smart lights, industrial wireless control and other scenarios.
Parameter:
Built in low-power 32-bit CPU, can also serve as an application processor
Main frequency 120MHz

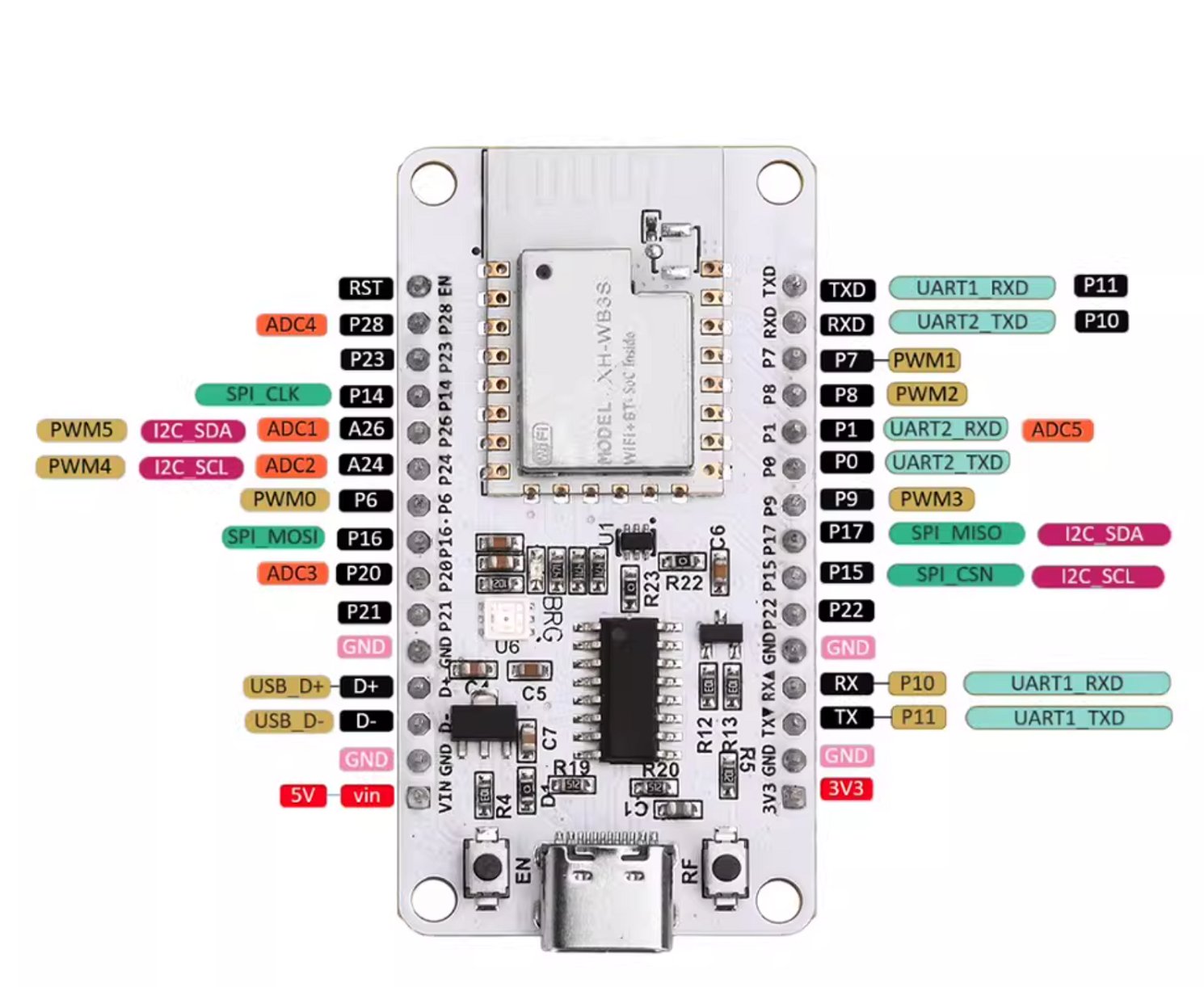

Peripherals: 9XGPIOs, 1XUART, 1XADC
Wi Fi connectivity
802.11 b/g/n
passageway 1-14@2.4GHz
Support WEP, WPA/WPA2
WPA/WPA2 PSK (AES) security mechanism
Maximum output power of+16dBm in 802.11b mode
Support SmartConfig function
Onboard PCB antenna, antenna gain 1.5dBi
Working temperature: -40 ° C~85 ° C
Supports low-power Bluetooth (V4.2)
Maximum output power+6dBm
Onboard PCB antenna, antenna gain 1.5dBi
Size: 55mm * 29mm
Wide range of application areas:
Intelligent Building
Smart Home/Home Appliances
Smart socket, smart light
Industrial wireless control
Baby Monitor
Network camera
Intelligent public transportation
Package include:
Package 1:

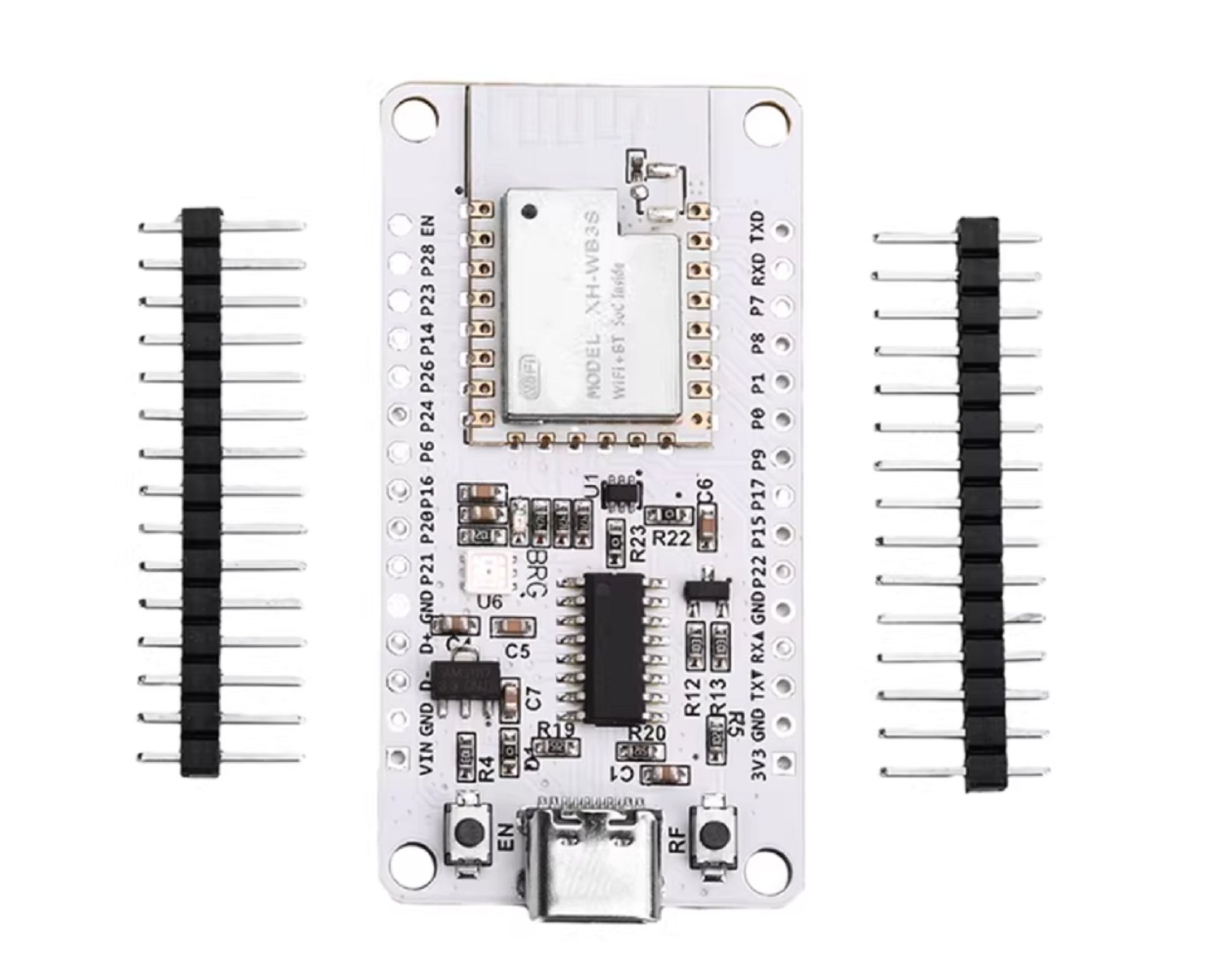

1X development board
2X pin arrangement (optional welding)
Package 2:
1X module
