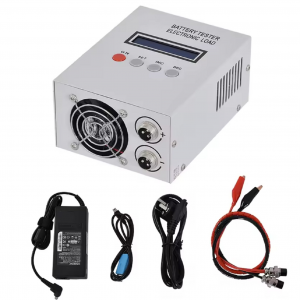

HS7917 EBC-A20 Battery Tester 30V 20A 85W Lithium Lead-acid Batteries Capacity Test
Specification:
Name: EBC-A20 Battery Tester
Charging voltage: within 18V
Discharge voltage: within 30V
Maximum discharge power: 85W
EBC-A20 is a battery tester with charge and discharge function. It is suitable for lithium battery/lead
acid capacity test (charge 5A, discharge 20A, high power 85W), support separate charging, discharging
and charge and discharge test, support connection The computer can be recharged and refilled multiple
times with online software and has more extended functions.
Note:
The battery is not included.
Parameter
Power supply mode: DC 19V-24V, current 3.5A or more
Voltage setting: 0.00-30.00V, minimum step 0.01V
(maximum voltage during charging is 18V)
Current setting:
Discharge: 0.10-20.00A, minimum step 0.01A (automatic current limit when power exceeds limit)
Charging: 0.10-5.00A, minimum step 0.01A (maximum current limited by supply current)
Discharge mode:
DSC-CC: constant discharge current, used to test battery capacity
DSC-CP: constant discharge power, used to simulate constant power equipment
CHG-CV: constant current and constant voltage charging, supporting lithium battery and lead acid
Automatic charge and discharge: support automatic "charge-discharge-charge" mode, test battery capacity
Voltage measurement:
0.000-4.500V (low pressure), accurate to 0.003V, error +-0.5%
4.50V-30.00V (high pressure), accurate to 0.01V, error +-0.5%
Current measurement:
0.10-20.00A, accurate to 0.01A, error +-0.5%
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Wiring method: four-wire detection, voltage measurement and current channel separate wiring to ensure
Measurement accuracy
LCD display: test data of voltage, current, capacity, time, power, energy, etc.
Computer connection: dedicated USB to TTL serial cable.
Computer control, drawing curves, calibrating measurement benchmarks, upgrading device firmware,
Cycle charging and discharging, etc.
