| Brand: | Haitronic |
| Product Code: | HS7930 |
| Availability: | 999999 |

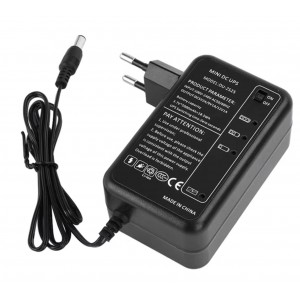

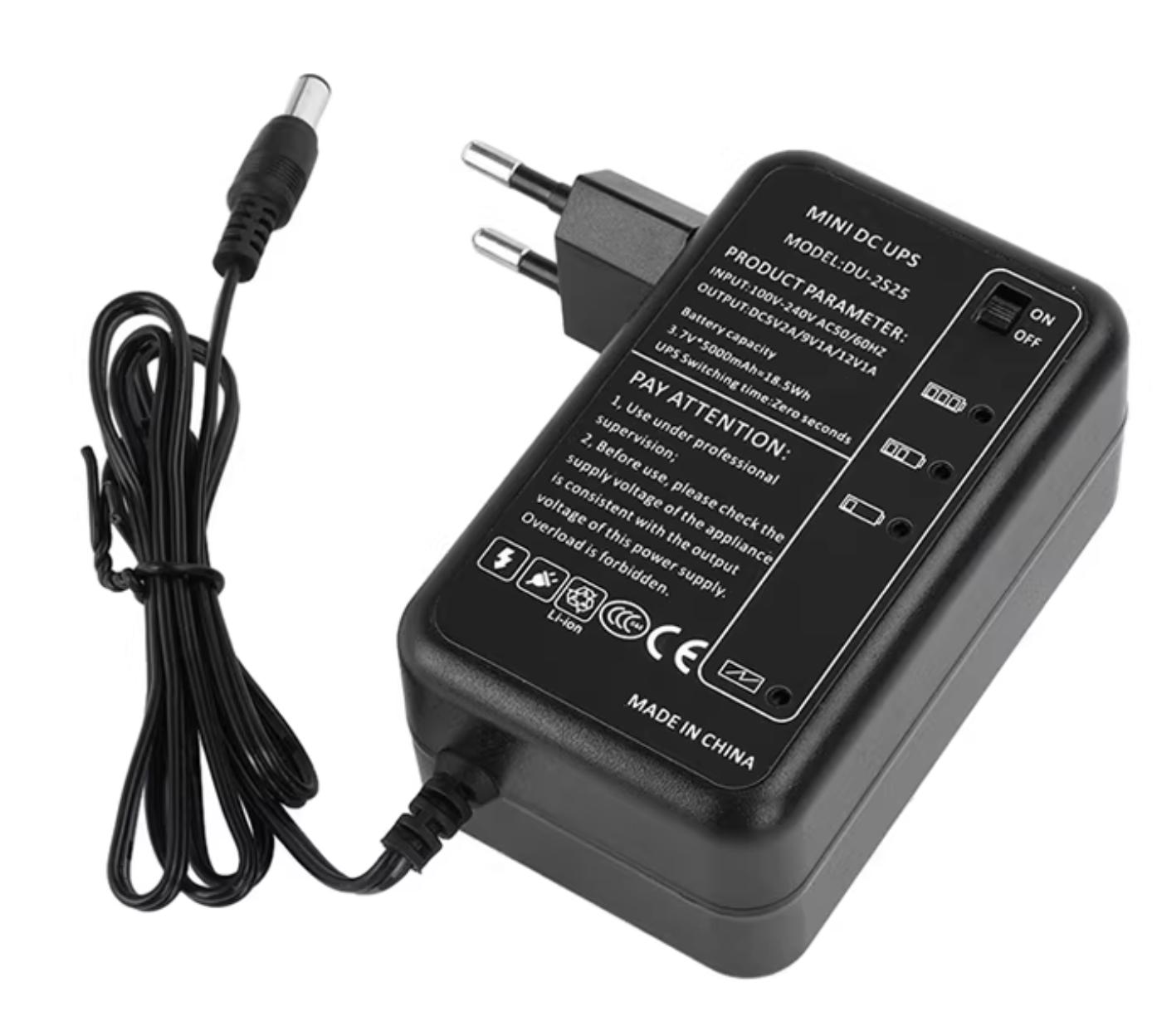

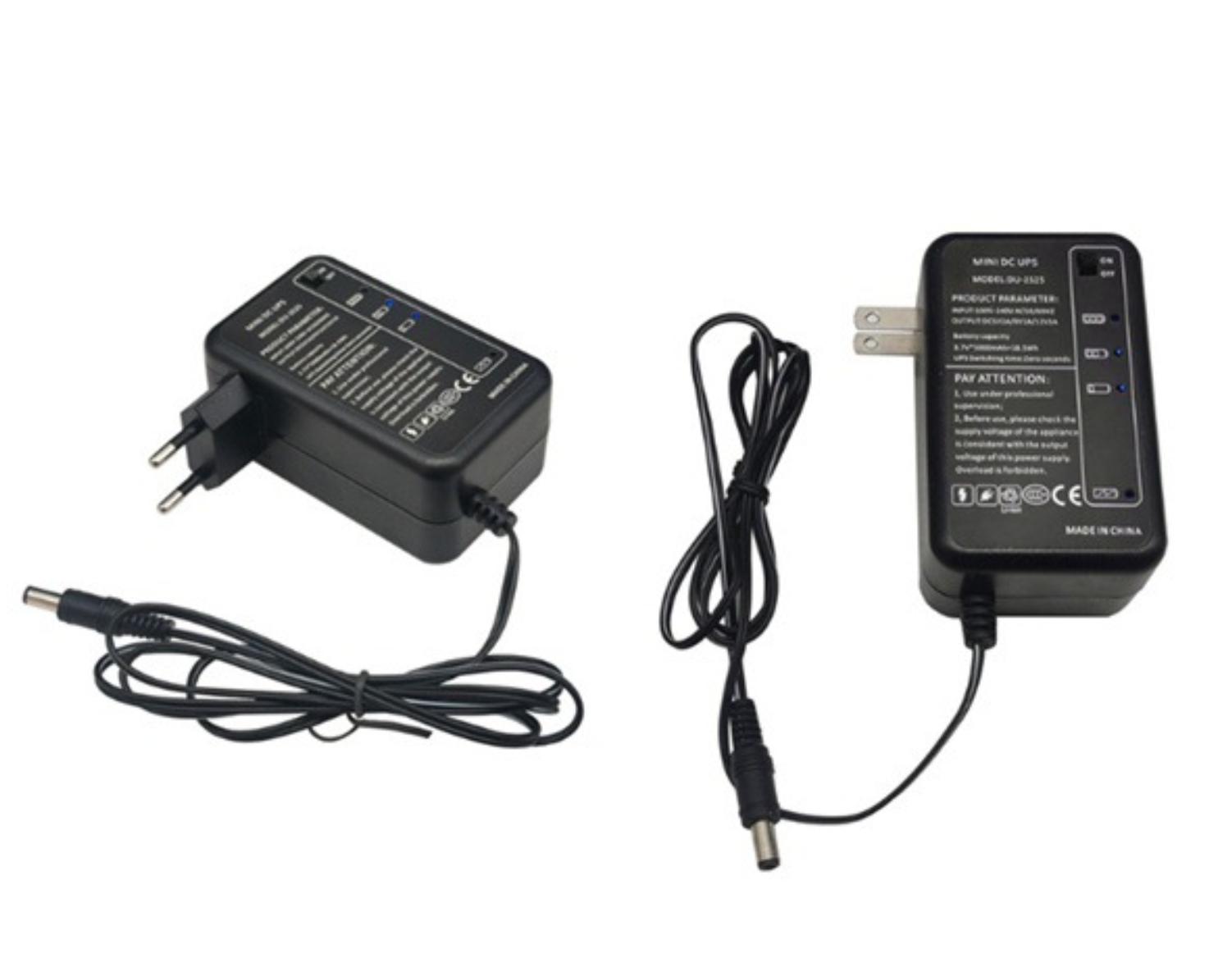

HS7930 4000MAH UPS Uninterrupted Power Supply Lithium Backup Battery with DC 12V/9V/5V Output for Wi-Fi Router LED CCTV Camera
Features:
1.UPS is a kind of standby energy storage power supply;
2.This mini UPS has perfect over charging, over discharging, over current and short circuit functions;
3.4000mAh high capacity, small size, easy to carry;
4.5.5x2.1mm port output is applicable to DC 5V2A, 9V/1A, 12V/1A;
5.Applicable to products, such as routers and monitoring equipment amplifiers, modulators, loudspeakers, etc.
Parameters:
Material: ABS
Color: black
Capacity: 4000 mAh
Output interface standard: DC5.5, 2.1mm
Output line length: 1.3m
Input AC: 100-240V/50-60HZ:
Output voltage can be adjusted to 3 levels: 5V2A, 9V1A, 12V1A
Three gear voltage change-over switch,
Upper: 9V;
Medium: 12V;
Lower: 5V;
Product size: 105 * 75 * 42mm
Product description:

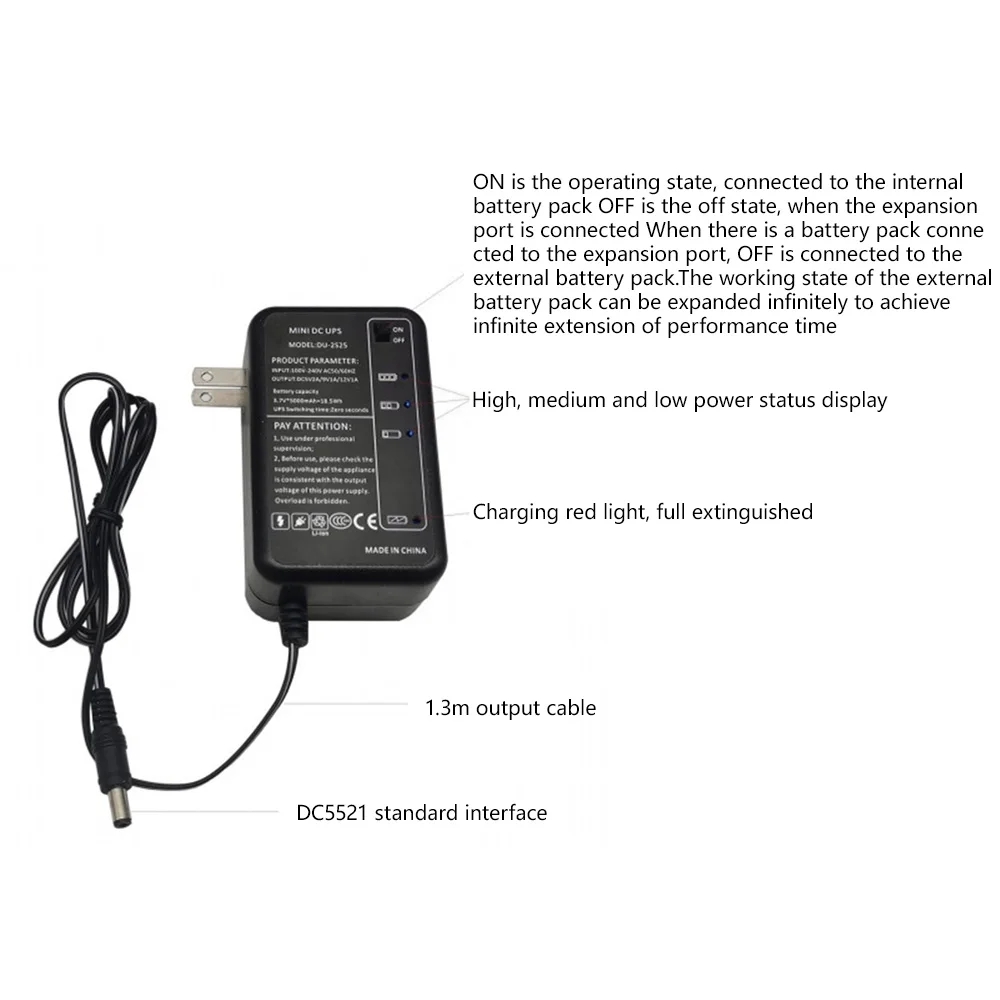

ON is the working state, and the internal battery pack is connected;

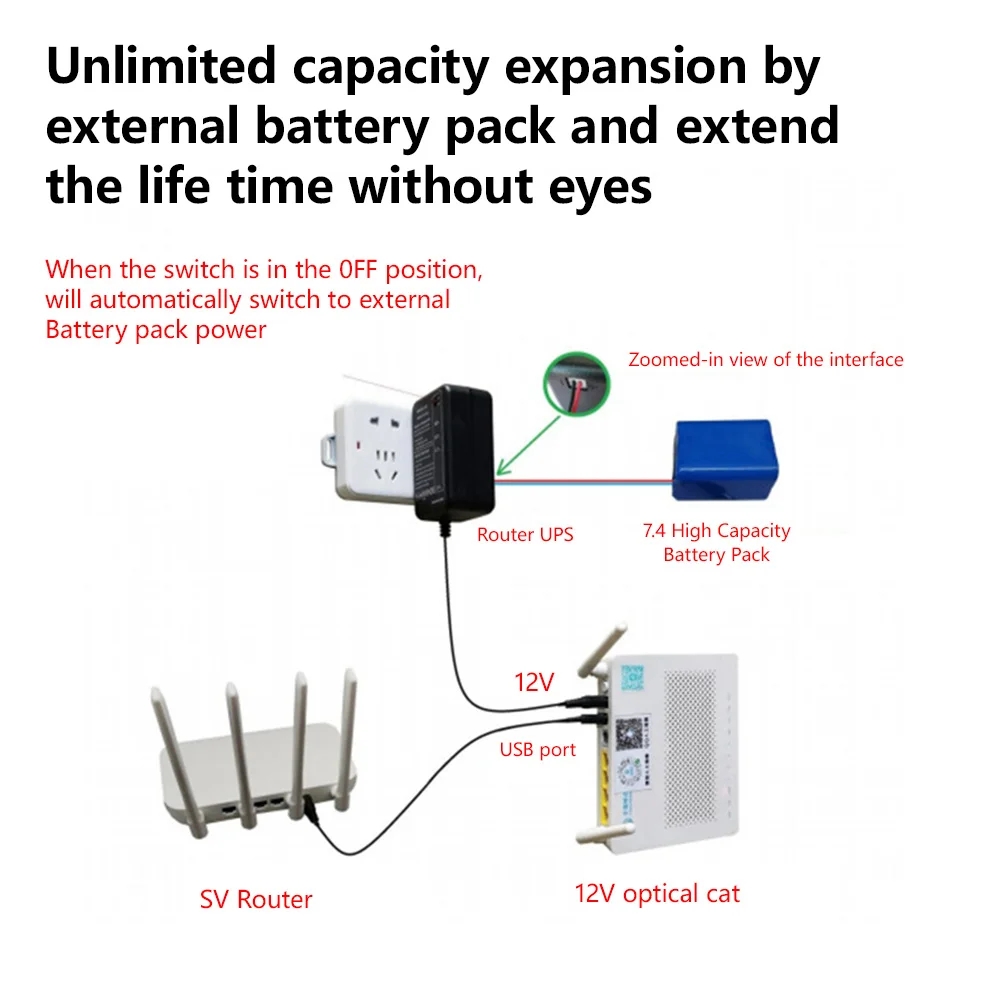

OFF is the off state when the capacity expansion port is connected with a battery pack. The OFF gear turns on the working state of the external battery pack. Unlimited capacity expansion to achieve unlimited extension of the endurance
High, medium and low level electricity status display
Charging red light, fully charged off
The DC5521 standard interface can be used to connect an external 7.4V battery pack to achieve unlimited capacity expansion.
instructions:
The output voltage of the UPS must be consistent with the working voltage of the equipment. First, check the label of your device. If the nominal power supply voltage is 9V, set the output voltage of the UPS power supply to the 9V position; Similarly, if it is 12V or 5V, please switch to the corresponding voltage range.
Reminder: This product is designed for low power consumption devices, such as routers and monitoring devices. Please do not overload, otherwise the product or appliances may be damaged.
Package include:
Uninterruptible power adapter X1
