| Brand: | Haitronic |
| Product Code: | HS8040 |
| Availability: | 999999 |

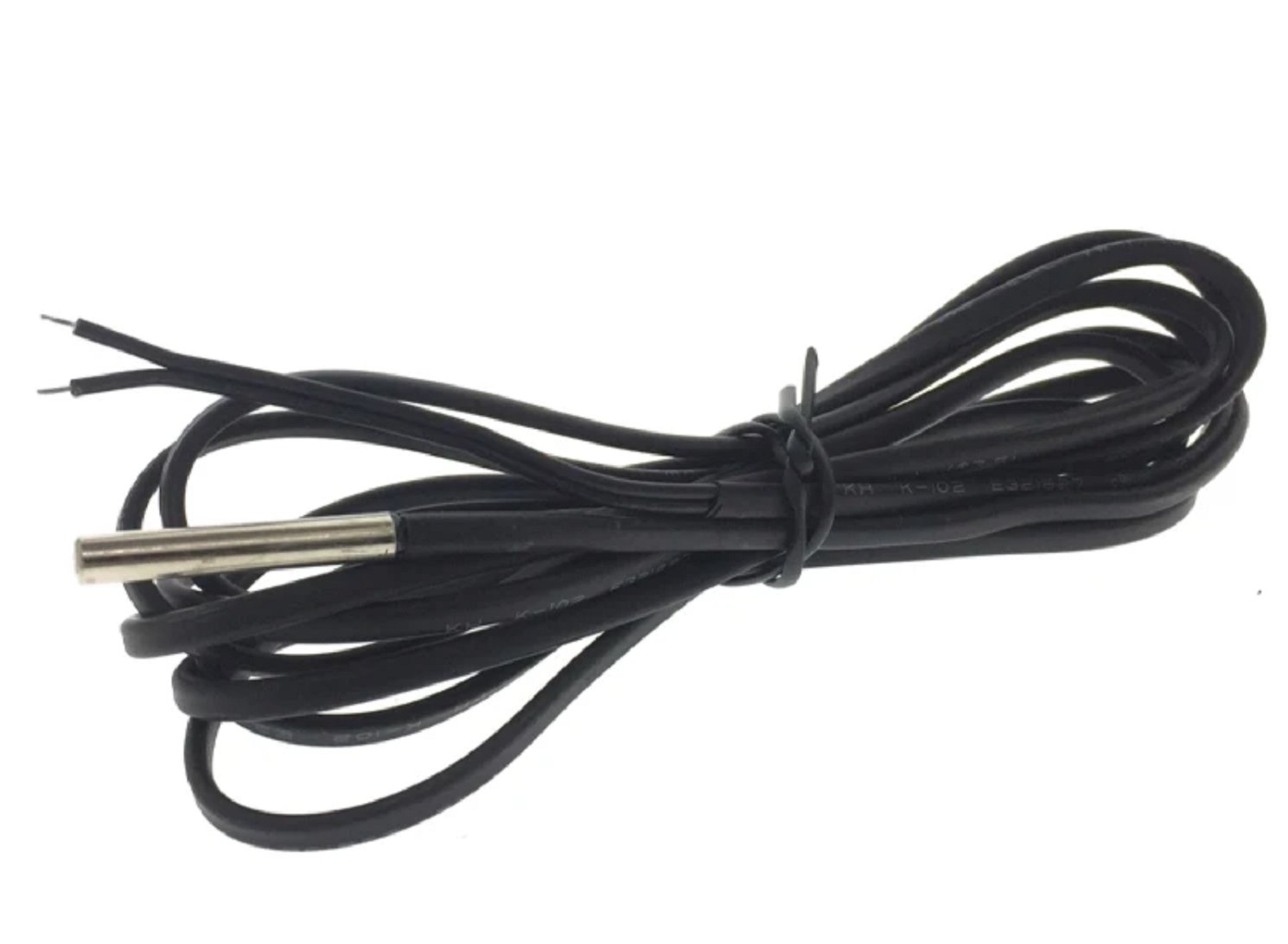

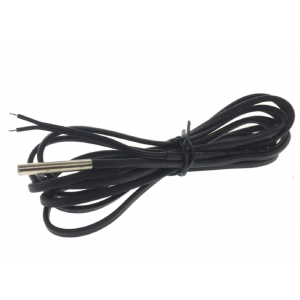

HS8040 NTC B3950 10K 1M thermistor
Product Introduction
Temperature sensor is the high precision, high reliable NTC thermistor and PVC wire connection, with insulation, heat conduction, waterproof material packaging into the required shape, easy to install and remote temperature control. Adopt new technology, stable product performance, double sealing process, with good insulation sealing and mechanical impact resistance, bending resistance, high reliability, can be packaged according to the installation conditions, easy to install users.
Product Details
【Specification parameter】
Product Name：
NTC thermistor temperature sensor
Shell specifications：
Cylindrical waterproof probe 4x25mm
Resistance tolerance：10K
Precision of resistance ：±1%
B value ：3950±1%
Temperature measurement range：-40℃- +125℃
Wire specifications：UL2651 26AWG PVC
And lines（Resistance to temperature 105℃）Resistance to pressure 300V。
Set of 3.5mm Heat Shrinkable Tubes
Wire tail：Immersion tin 3 mm Terned
