| Brand: | Haitronic |
| Product Code: | HS8098 |
| Availability: | 999999 |

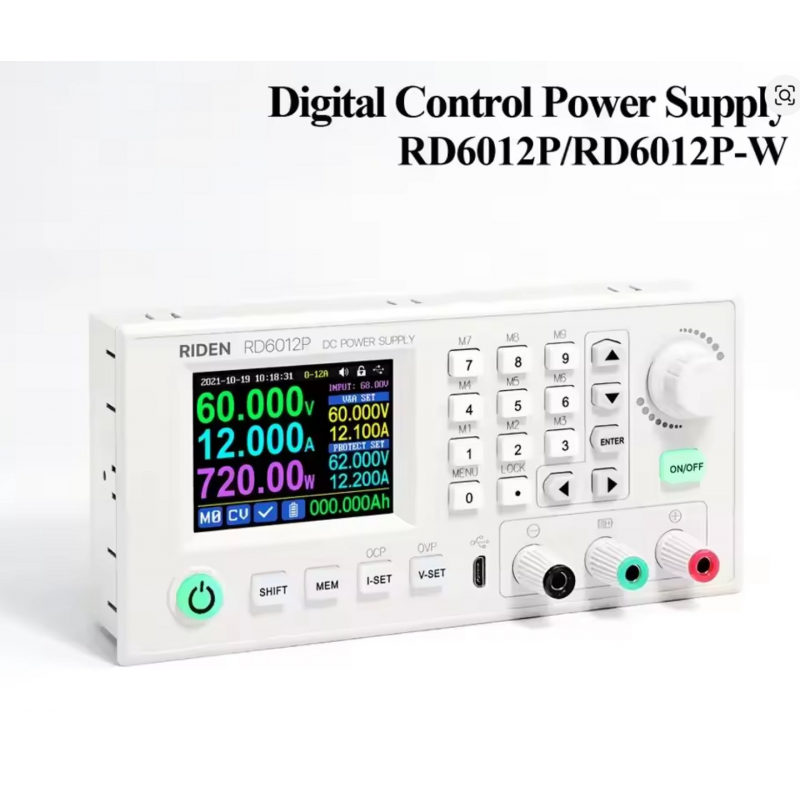

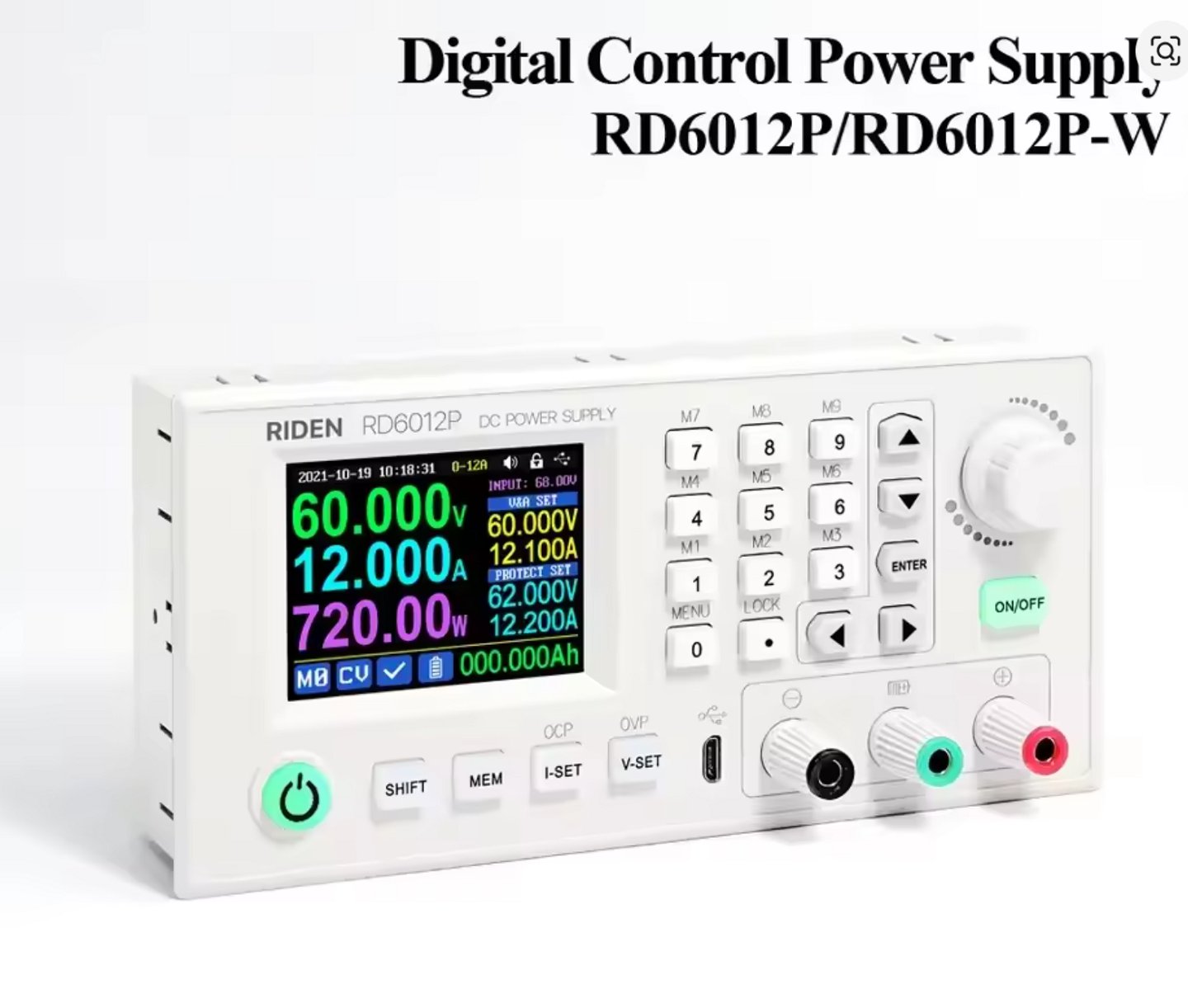

HS8098 RIDEN®RD6012P/RD6012P-W Digital Controled Power Supply

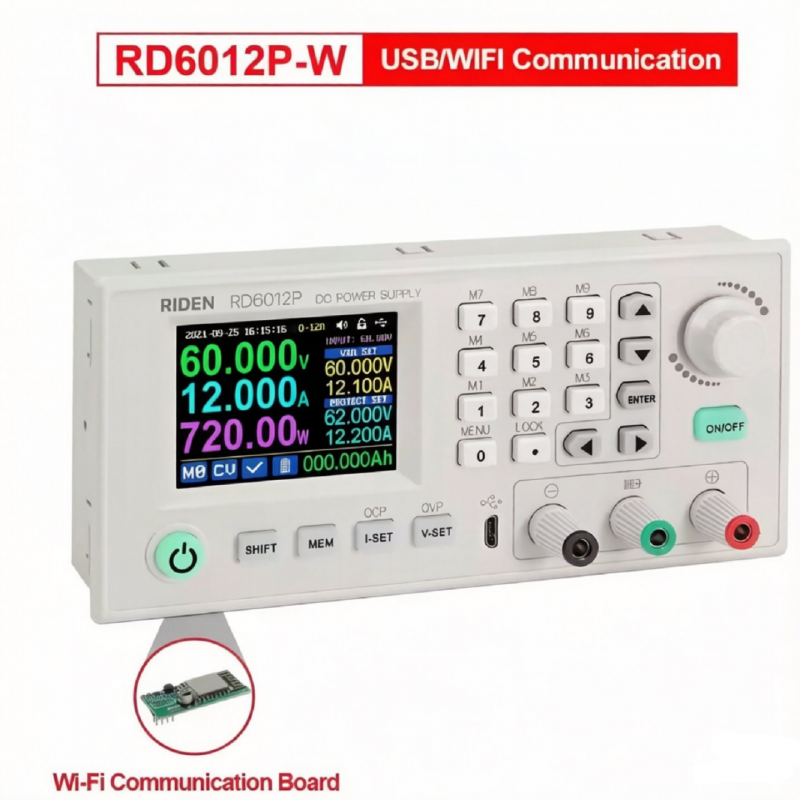

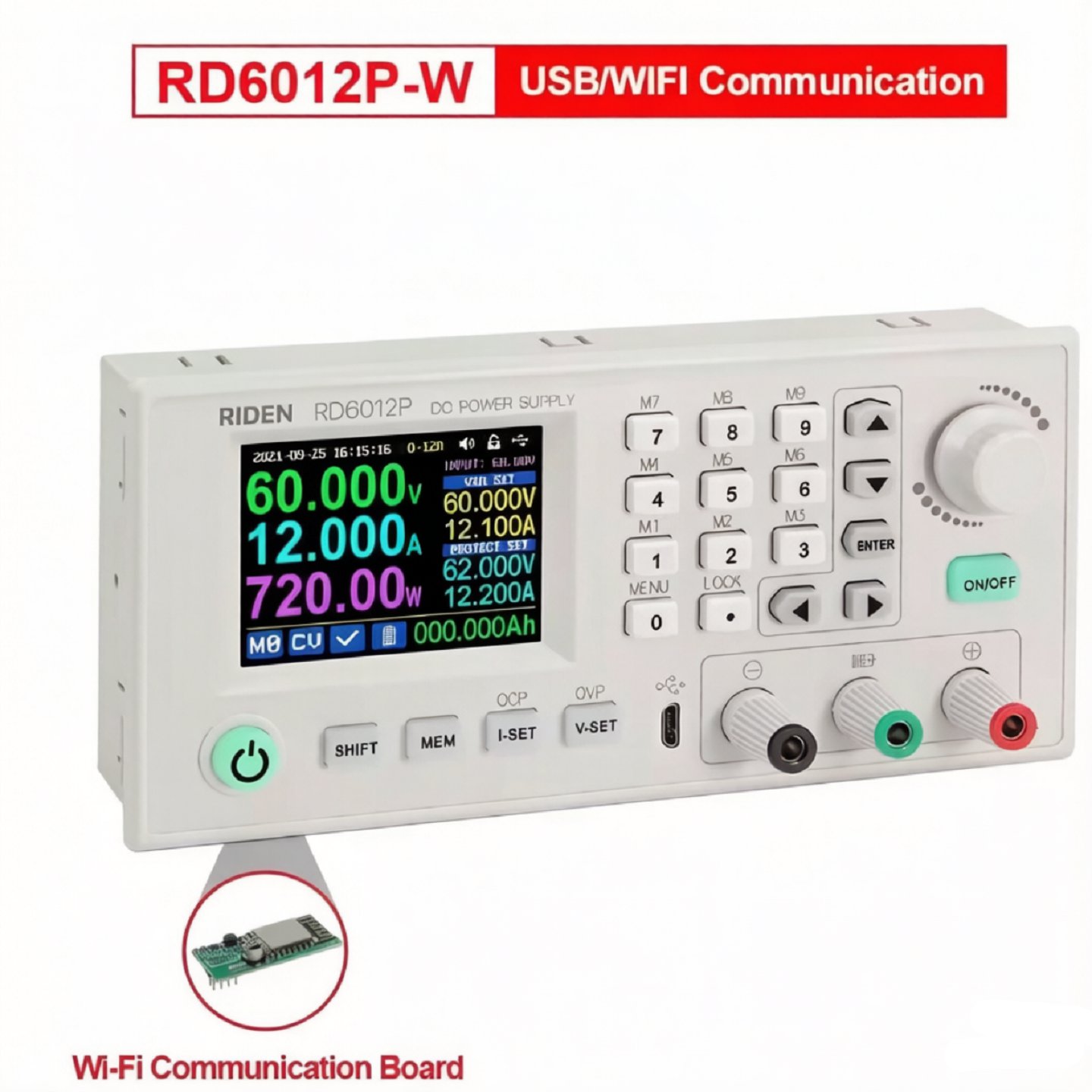

Model: RD6012P/RD6012P-W
Input voltage range: 7-70.00V
Output voltage range: 0-60.000V
Output current range: 0-6.0000A/0-12.000A
Output power range: 0-720W
Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.001V
Output current setting measurement resolution: 0.001A/0.0001A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracybetween setting and measurement:±(0.5‰+4 digits)
Output currentaccuracybetween setting and measurement:±(1‰+6 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Automatic cut off current valuewhen charging: Set by yourself
Output ripple typical: 20mV VPP
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: （input voltage÷1.1）-2
Over temperature protection: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color HD display
Weight(with package):About 0.66kg
Product dimension: 167*81*65mm
Cooling fan start condition：Output current >4A or System temperature>50℃
Cooling fan shut down condition:Output current <3.9A and System temperature <50℃
1,Instruction:
RD6012P(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link:
Main download llink : https://drive.google.com/drive/folders/1NdHp_BiQKGyVf5ahfyhNrGkTcO2AzWC0?usp=sharing
2,APP Download:
Android APP: download at file link:https://drive.google.com/drive/folders/1NdHp_BiQKGyVf5ahfyhNrGkTcO2AzWC0?usp=sharing, Support android 8.0 -android 10.0;
Android APP Google Playdownload:Search "Ruideng" to download , support Android 8.0 and above phone
IOS APP download: Search "RdPower" to download , support IOS10.0-IOS13.4 System
3, Case Assembly:
RD6012P and S800 case assemble instruction : https://drive.google.com/drive/folders/1NdHp_BiQKGyVf5ahfyhNrGkTcO2AzWC0?usp=sharing
