| Brand: | Haitronic |
| Product Code: | HS8177 |
| Availability: | 99999 |

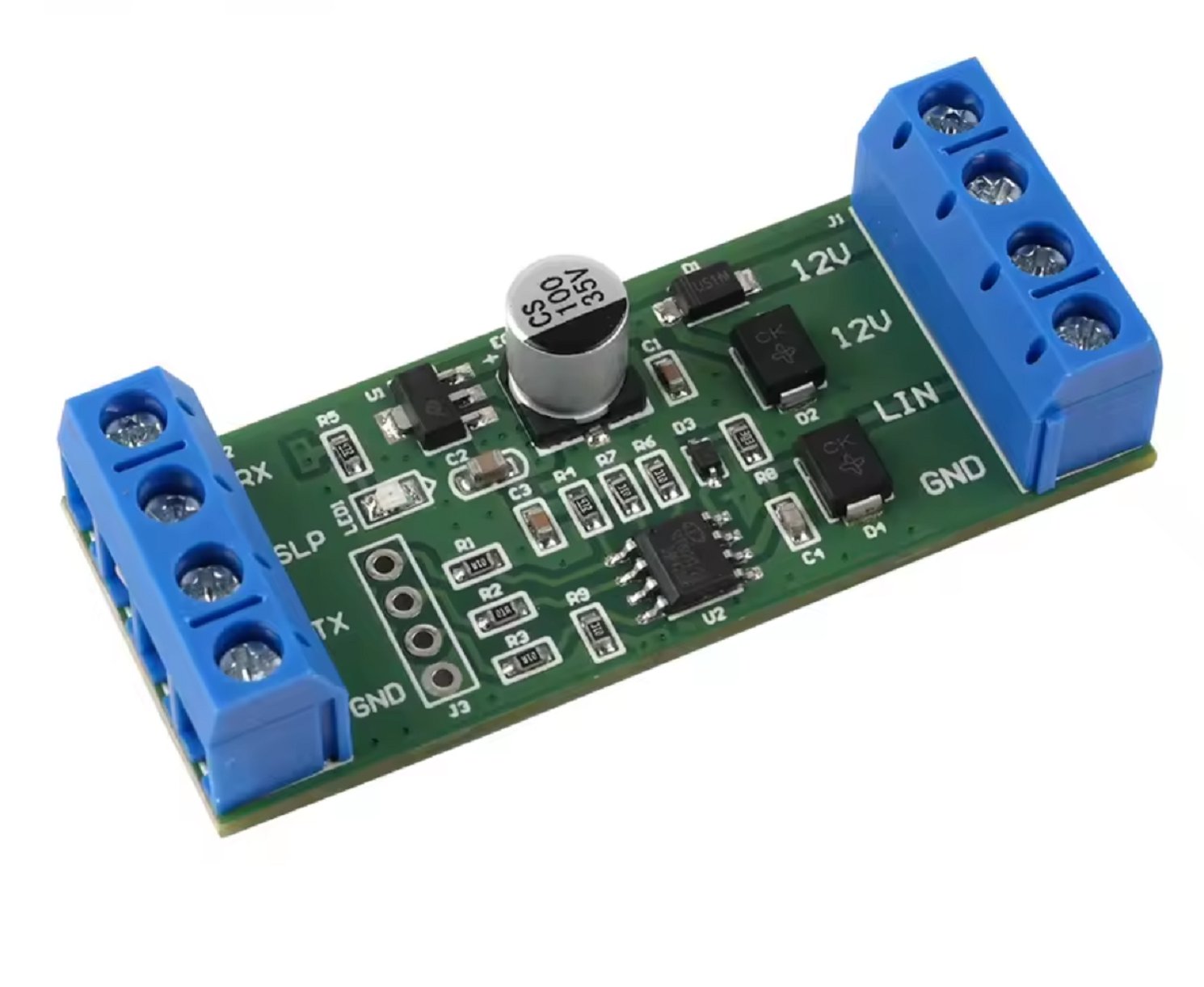

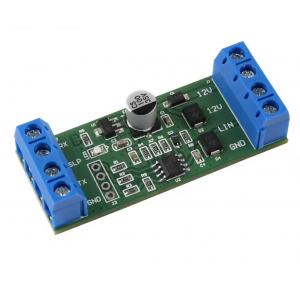

HS8177 UART to LIN Bus Module
1. The module is designed using the TJA1021 scheme and is mainly used for the learning and development of LIN bus slave equipment, and communication monitoring and maintenance of LIN bus equipment.
2. The module has a red power indicator light, which will light up after power is supplied.
3. The measured baud rate of the module can reach 57600bps.
4. It is recommended that the baud rate of the module be less than 20Kbps at most.
Note:
1. This module is just a level conversion module and does not participate in conversion analysis such as software protocols. When the module is connected to the computer COM port, the computer can receive data, but if you want to act as a host and communicate with your slave device, it cannot be realized. The computer COM port cannot generate the 13bit start bit in the LIN protocol, but it can be connected to the microcontroller. class development board.
2. This product does not provide technical support for software or protocols, so novices are advised to be cautious.
