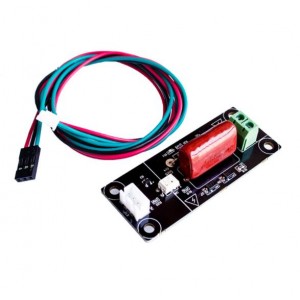

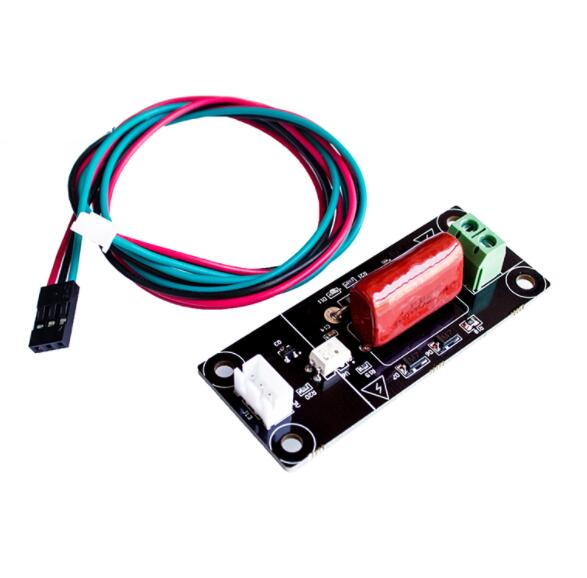

Name : MKS DET outage detection module
Notice :
It will generate 220V voltage when input the module ,
please prepare good protection.
Product Introduction :
1. Connect the power input terminal(blue) of outage detection module,
as well as UPS to 220V(or 110V) power.
2. Connect the signal output terminal(3pins) of outage detection modul
to MKS TFT (PB0-->B0 Gnd-->- 3.3V-->+)
3. After MKS TFT receive outage message, it will automatically enter into
printing suspending status. And the printer head will move from the model .
4. MKS TFT carries with function of outage continued printing.
But it only saves printing state if suddenly suffers from power cut.
And the printer head cannot move .
Luckily , using outage detection module and UPS can totally handle
this problem .Moreover , UPS only cost 1min .
