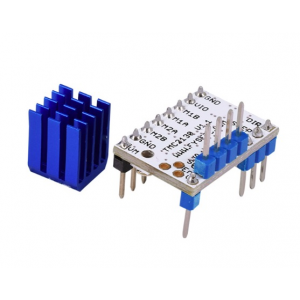

HS1099 TMC2130 V1.1 Stepstick Stepper Motor Driver For SPI Function with Heat Sink for 3D Printer

HS1099 TMC2130 V1.1 Stepstick Stepper Motor Driver For SPI Function with Heat Sink for 3D Printer

Features:



1.Two-phase stepper motor single-phase current 1.2A (peak 2.5A) motor operating current can be adjusted

2.SPI only

3.Subdivided into 256

4.Noiseless operation combined with maximum efficiency and optimal motor torque

5.High-precision sensorless motor load detection

6.Reduce energy consumption by 75%

7.High load drive is not out of step

Specifications:

- Product Name: TMC2130 V1.1 Stepstick Stepper Motor Driver

- Motor input voltage range: 4.75~46V

- Logic interface input voltage: 3 ~ 5V

- Interface: Step/Dir or SPI

- Configuration:  CFG Pins or SPI

- Native Microsteps*: up to 1/256

- MicroPlyer

- Microsteps: 1/256

- Logic Voltage VIO:  3-5V

- Motor Voltage VM: 5.5-46V

- Motor Phase Current: 1.2A RMS, 2.5A Peak

- VM always needed**: yes

- Internal V- Regulator**: enabled

- RDSon: >=0.5 Ohm

- StealthChop (quiet): yes

- SpreadCycle: yes

- CoolStep: yes

- StallGuard: yes

- DcStep: yes

Note:
* Due to different producing batches, product details might be a little different.  Thank you for understanding.

Package Included:

1 x TMC2130 V1.1 Stepstick Stepper Motor Driver

1 x With plastic heat sink

1 x Screwdriver

1 x 4pin connection cable
